1.7 S
PARE
P
ARTS
0224 Gold plated jumper tab
951-585510-100 PS-100 100 watt modular power supply (complete plug-in power supply module)
360-GPFC11-024 110 watt, 24 VDC switcher power supply (replacement power supply for PS100-10B)
2812 24 VDC lamp for power switch
298-000000-000 2 amp 3AG slow blow fuse
320-3217-1 Power switch assembly
2806 Green switch cap (for power switch)
320-32800-1 Fuse holder Assembly
910-000008-003 Model Series 10 Blank Plate
1.8 W
ARRANTY
Detcon inc., as manufacturer, warrants under intended normal use each new Model 810-N1 rack control
enclosure to be free from defects in material and workmanship for a period of one year. The warranty peri-
od begins from the date of shipment to the original purchaser and ends one year thereafter. All warranties
and service policies are FOB the Detcon Inc. facility located in The Woodlands, Texas.
Detcon Model 810-N1 Rack Panel Mount Control Enclosure PG.5
Shipping Address: 3200 A-1 Research Forest Dr., The Woodlands, Texas 77381
Mailing Address: P.O. Box 8067, The Woodlands, Texas 77387-8067
phone 888-367-4286, 281-367-4100 • fax 281-292-2860 • www.detcon.com • [email protected]

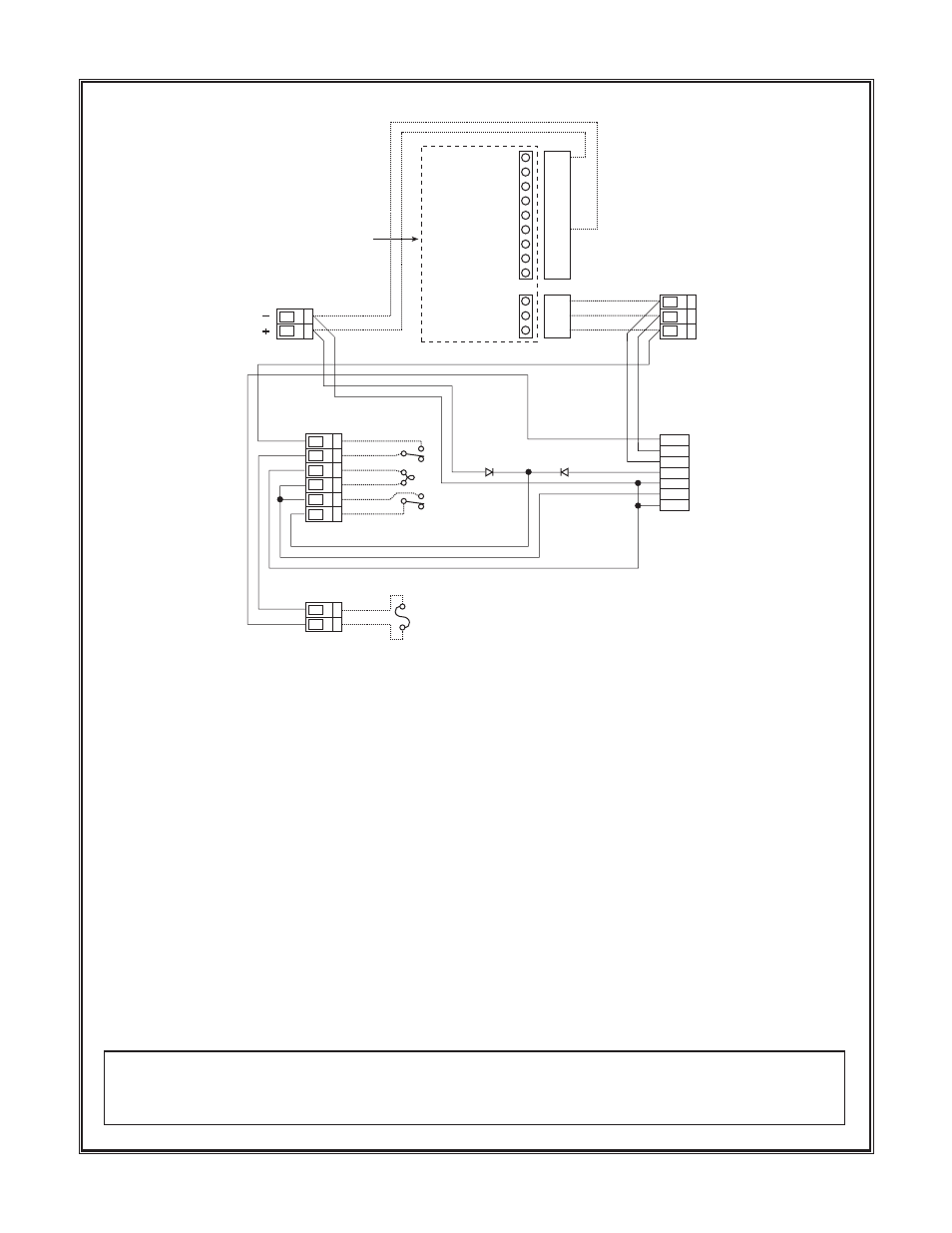

L1 In
Fuse
L1 - BLK
N - WHT
GND - GRN
BLK 16ga x 3"
BLK 16ga x 3"
Power
Switch
RED 16ga x 6"
RED 16ga x 6"
TAN 22ga x 6"
TAN 22ga x 6"
BLK 16ga x 6"
BLK 16ga x 6"
D2 6A 50V
RED
BLK
Power Supply
+
+S
16ga x 6"
P1
N In
GND In
+DC In
–DC In
+DC Out
–DC Out
16ga x 6"
16ga x 6"
16ga x 9"
16ga x 9"
P2
P3
P4
P5
D1 6A 50V
Power
Supply
DC Out
Power
Supply
VAC In
This side toward front
of power supply assembly
–S
GND
L
N
–
+
+
–
–
1
1
3
6
2
Fig. 3
