810-N1-24VDC Instruction Manual Rev 0.0 Page 2 of 6
4.0 REMOTE RESET
The reset function is effective when the Model 10B's respective alarms have been programmed in the latching
position and alarm conditions have passed. The alarm reset function is common to all controllers and is
activated by closing the circuit between the two reset contacts. A normally open momentary switch is suitable.
5.0 INSTALLATION
1. Securely mount the 810-N1-24VDC rack enclosure in accordance with Figure 1.

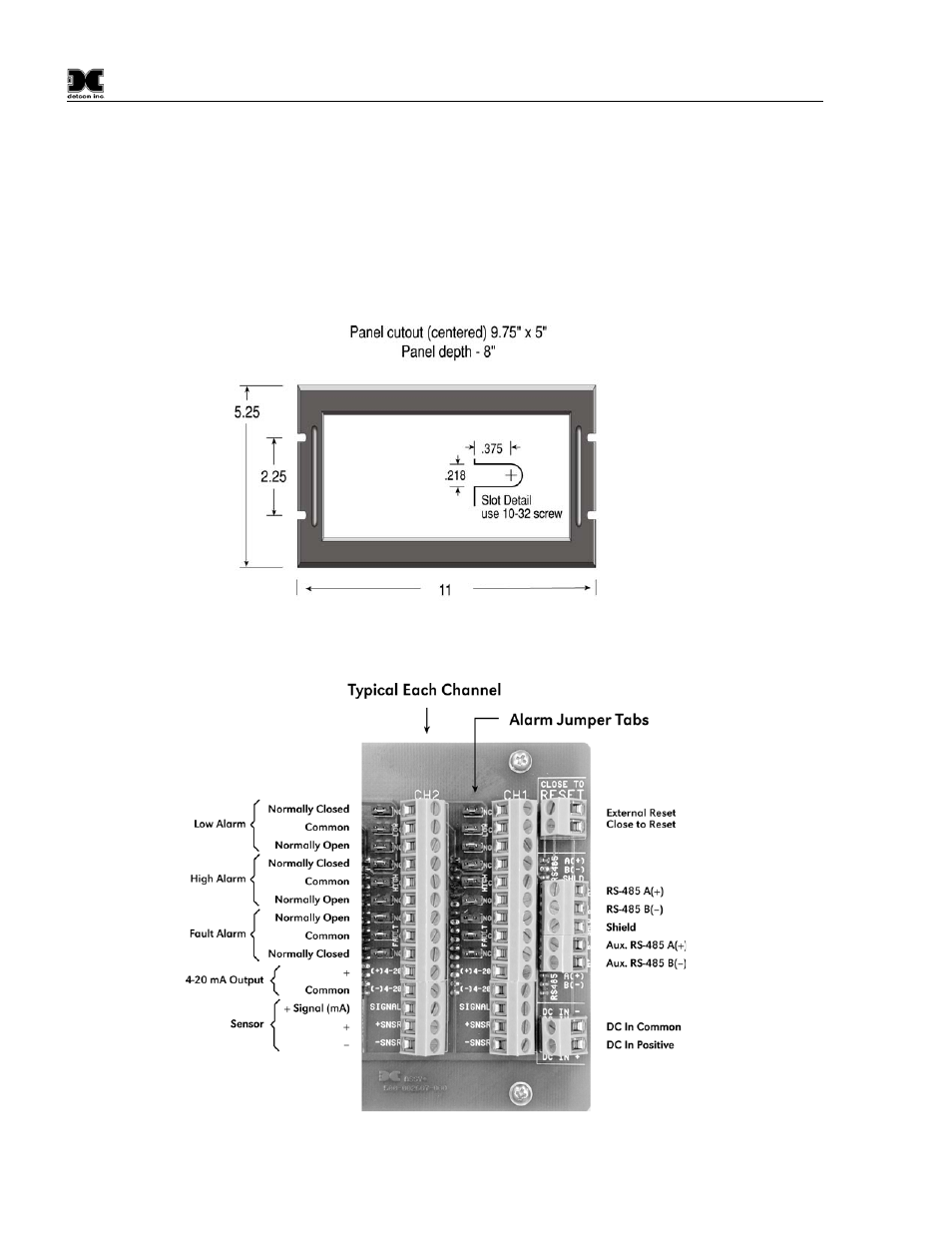

Figure 1 810-N1-24VDC dimensions
Note:
Reference figure 2 for wiring terminations
Figure 2 Wiring Terminations
