Typical each channel, Alarm jumper tabs, Fig. 1 – Detcon 1610-N1 User Manual

Page 3: Fig. 2

1.3 R

EMOTE

ESET

The reset function is effective when the Model 10B's respective alarms have been programmed in the latching
position and alarm conditions have passed. The alarm reset function is common to all controllers and is acti-
vated by closing the circuit between the two reset contacts. A normally open momentary switch is suitable.

1.4 I

NSTALLATION

1. Securely mount the 1610-N1 rack enclosure in accordance with Figure 1.

2. Connect 24 VDC input wiring to the lugless terminal strip (labeled DC IN) on the back of the con-

troller mother board (see fig 2).

Detcon Model 1610-N1 Rack Panel Mount Control Enclosure PG.3

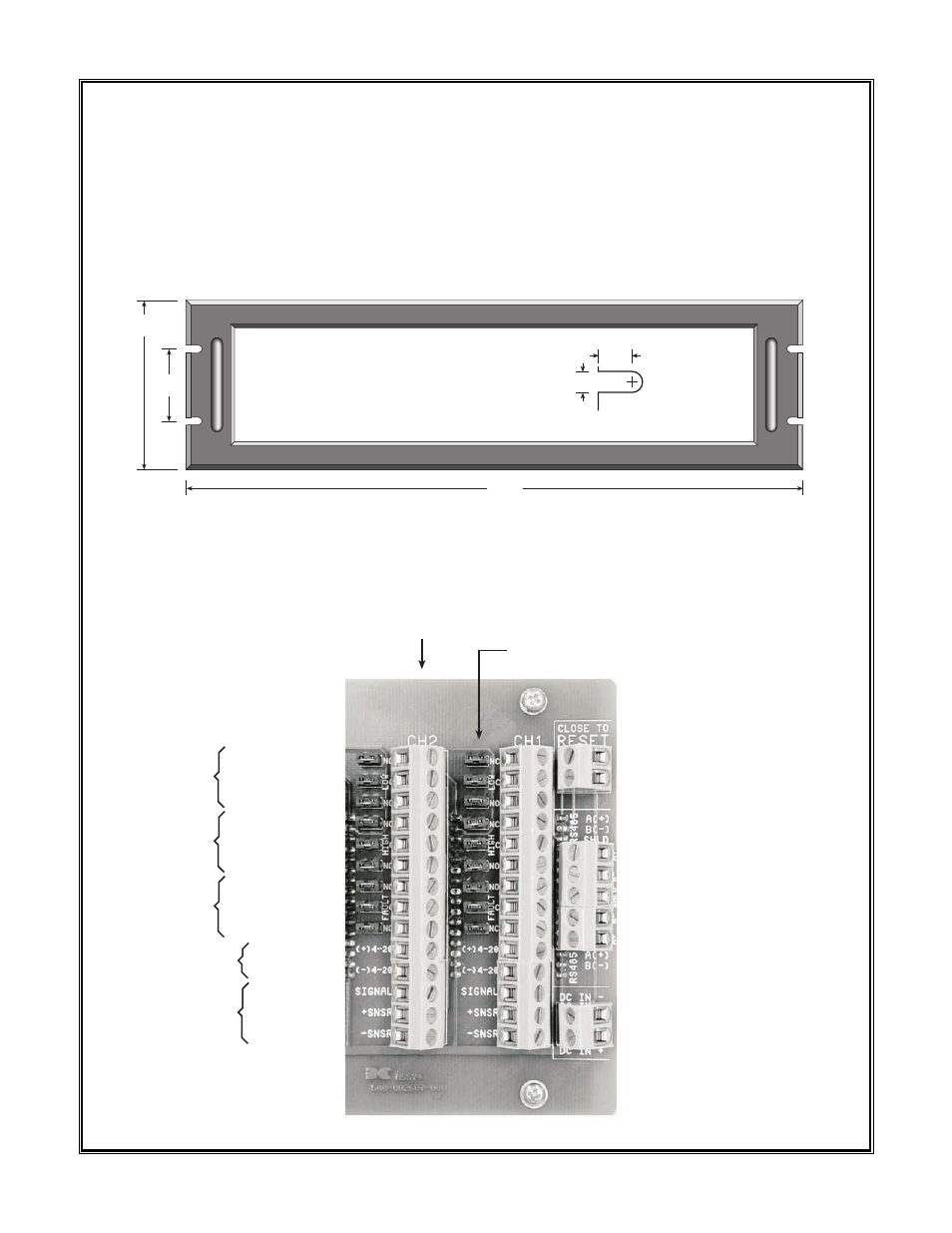

Fig. 1

.218

.375

Slot Detail
use 10-32 screw

Panel cutout (centered) 17.75" x 5"

Panel depth - 8"

2.25

5.25

Typical Each Channel

Normally Closed

Common

Normally Open

Normally Closed

Common

Normally Open

Common

Normally Closed

Common

+ Signal (mA)

–

External Reset
Close to Reset

DC In Common

DC In Positive

Sensor

Aux. RS-485 A(+)

Aux. RS-485 B(–)

RS-485 B(–)

Shield

RS-485 A(+)

Low Alarm

High Alarm

Fault Alarm

4-20 mA Output

Alarm Jumper Tabs

Fig. 2
