STEP 13
A. Tap 1” pins into the 4 sets of holes in the Back Panel.
B. Just above the Bottom shelf on the inside of the
Bottom Front Brace there are two sets of holes. Tap 1”
pins into these holes.
C. On the Inside face of the Top Front Brace there is a
hole adjacent to each of the magnet blocks for the
outside doors. Tap one 1” pin into each hole.
D. Choose the height you want your middle
shelves, then tap the 2” pins in accordingly on
the Cabinet Dividers.
E. Slide the Cabinet Dividers between the
sets of pins in the Back Panel and the pins
in the Front Braces until dividers rest on the
Bottom Shelf.
NOTE: Eight 2” pins are provided in case
you want the center middle shelf & the side
middle shelves at different heights.

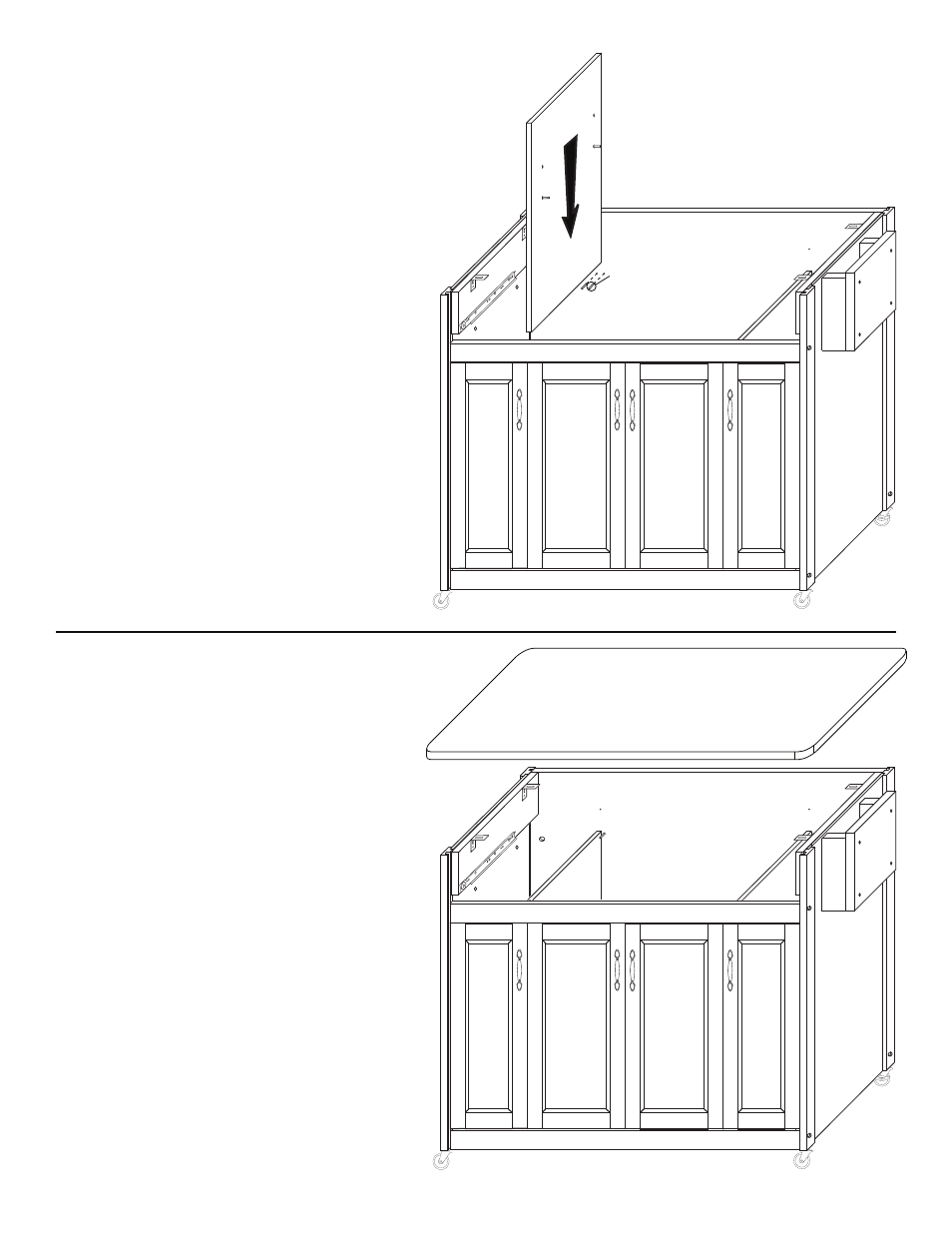

ILLUSTRATION 13
STEP 14 ONLY 64220
A. Invert Table Top on a smooth flat surface and
make a large ( X ) mark over each of the 4
pilot holes in the bottom. Make marks about
1/2-1” long. These marks will help you
align the cabinet with the pilot holes in the
bottom of the Top.
B. Place the Cart Top on the cabinet. Open
the outside doors. Maneuver the Cart Top so
that the ( X ) marks/pilot holes in the bottom
of the Top align with the holes in the “L”
brackets. Secure top to “L” brackets with 5/8”
#8 screws, allowing approximately 3/16”
space between inside face of Knife Rack
and end of Cart Top .
ILLUSTRATION 14A
1” Pins
