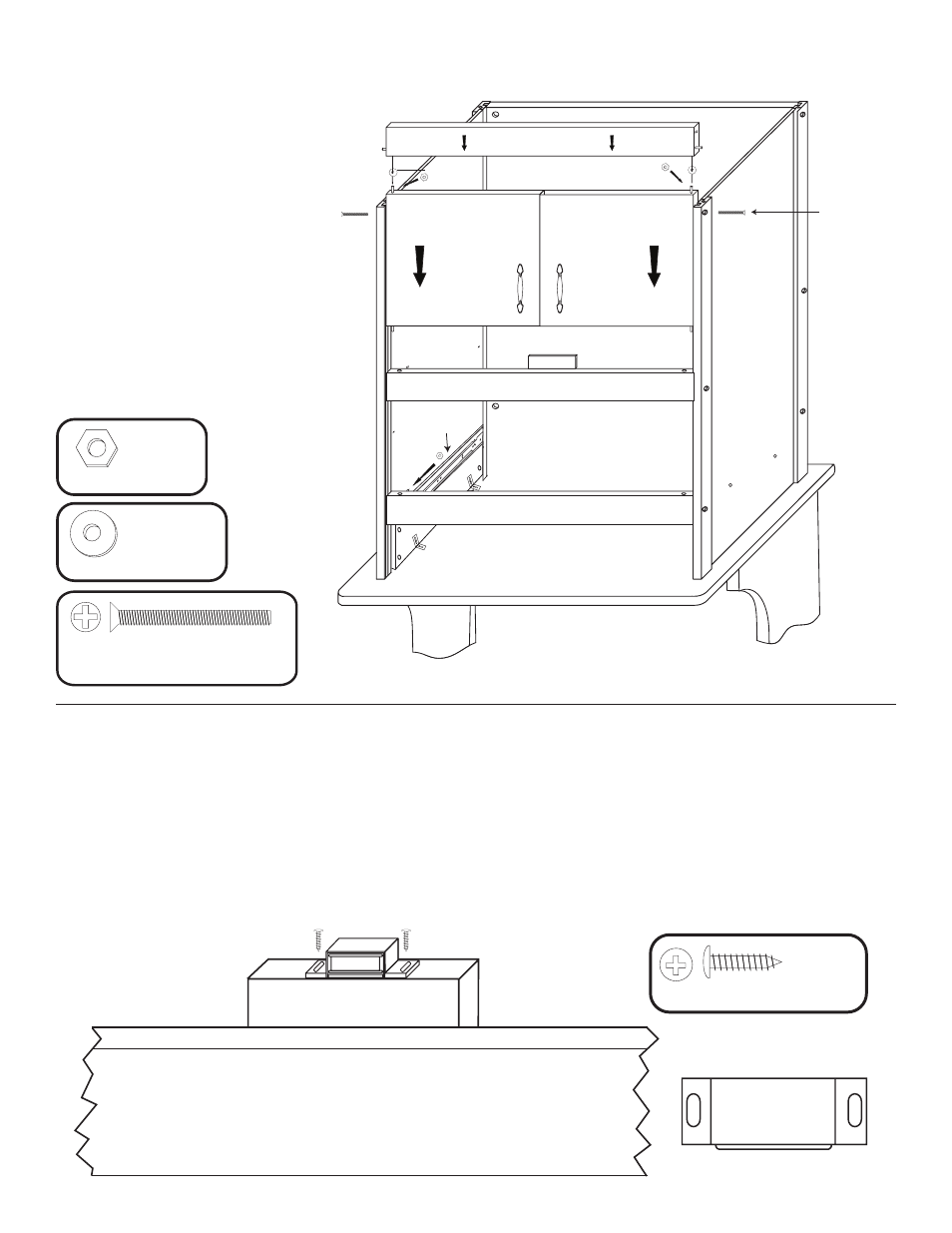

STEP 11
A. Install doors by inserting pins
in the door tops into the holes in
the long edge of the middle front
brace.
B. Place one washer on each
of the door pins in the door
bottoms.
C. Take the bottom front brace,
align pins in the door bottoms
with holes along top long edge
of brace (are washers on pins?)
and secure brace with 1 3/4”
bolt/hex nuts as before.
STEP 12
A. Stick magnet to magnet plate on right door.
B. With left door open, close the right door. The magnet should be positioned over the wooden block
on the bottom of the top front brace. Hold the magnet in place with your thumb, and open the right
door. The magnet will be in the correct position on the block.
C. Secure magnet with the two round head screws in the magnet packet. Center screws in the slots in
the magnet. This will allow adjustment later, if needed.
NOTE: No pilot holes in block as softwood!
Magnet
5/8” Pan Head Screw
2 Used
in this step
1 3/4” #8 Bolts
Glide Support
Assembly
Washer
1 3/4” Phillips Flat Head Bolt
4 Used in this step
10-24 Hex Nut
4 Used
in this step
2 Used
in this step
3/16” Flat Washer
