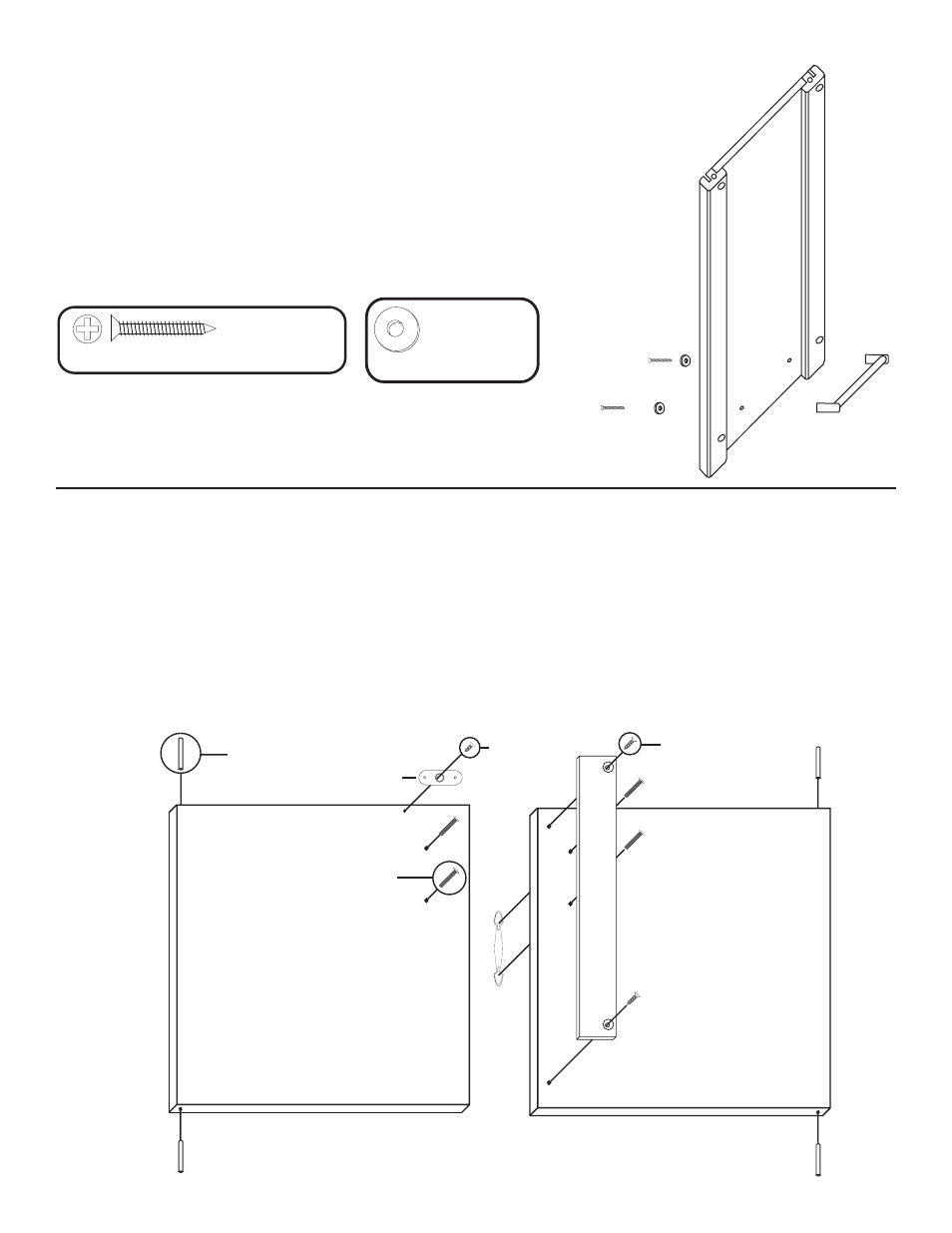

STEP 9
Attach towel bar to side panel with 1” #8 screws/washer from
inside one panel.
2 used in this step
1” Phillips Flat Head #8 Screw
2 used
in this step
3/16” Flat Washer
STEP 10
A. Tap/insert ONE 1 1/2” pin into each end of both doors. DON’T OVERDRIVE PINS! Pins should
stick up about 1/2” when seated.
B. Attach the doorspacer to the left door with 5/8” #8 screws. The spacer has a space at the top to
allow magnet clearance and is almost flush with the bottom of the door. Countersunk holes out.
C. Attach the magnet plate (may be stuck to magnet! ) with the 1/2” #4 screw to the top of the right
door. Bumps go toward the wood.
D. Attach door handles with 7/8” truss head machine screws.
1 1/2” Pin
1/2” #4 Screw
7/8” Machine Screw
5/8” #8 Screw
Magnet Plate
Handle
