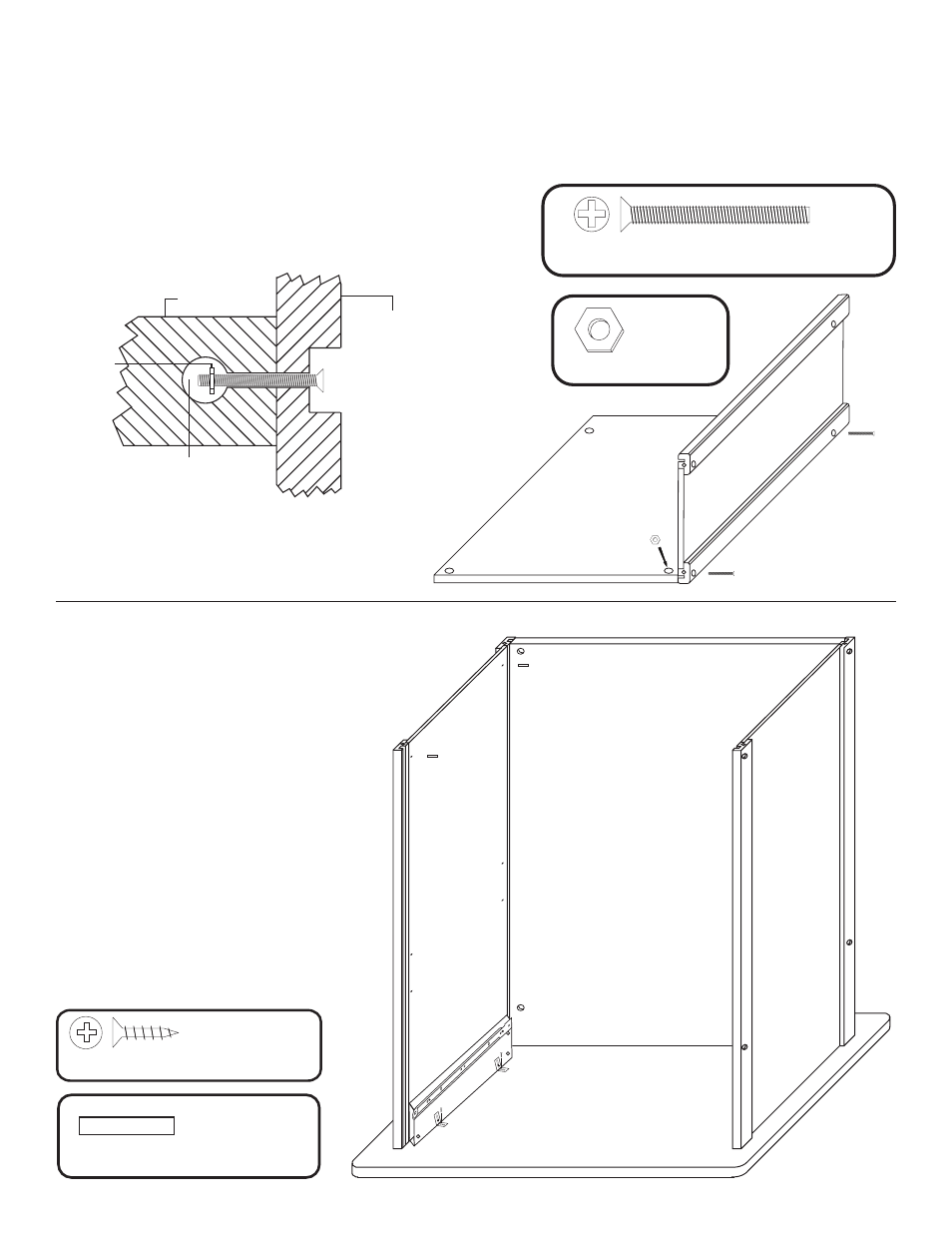

STEP 2
A. Lay back panel flat on a smooth surface with holes up.
B. Attach side panels with 1 3/4” machine screws (bolts) and hex nuts. After inserting bolts(s) thru the
holes in the side panels, thru the holes in the long edges of the back panel, place a hex nut on the tip
of your finger, align nut with bolt and tighten.
C. Look ahead to step 3 which shows side panels
attached to back panel.
1 3/4” Phillips Flat Head Bolt
4 Used
in this step
10-24 Hex Nut
4 Used
in this step
Side Panel Leg
Inside Brace
Countersunk Hole in Leg
( disk goes in this hole to
hide bolt head! )
Nut Access Hole
Hex Nut
4 Used in this step
1” Long 3/16” Dia. Steel Pin
PIN
PIN
5/8” Phillips Head #7 Screw
4 Used in this step
STEP 3
A. Turn the side/back assembly
(from step 2) upside down (invert)
on top of the inverted table top.
B. Tap two 1” pins into each side
panel. These pins will hold the
bottom shelf. See illustration 4
C. Attach to top using 5/8” #7
screws through the hole in the “L”
Brackets. Use the inside set of pilot
holes, the outside holes will not be
used on this model.
