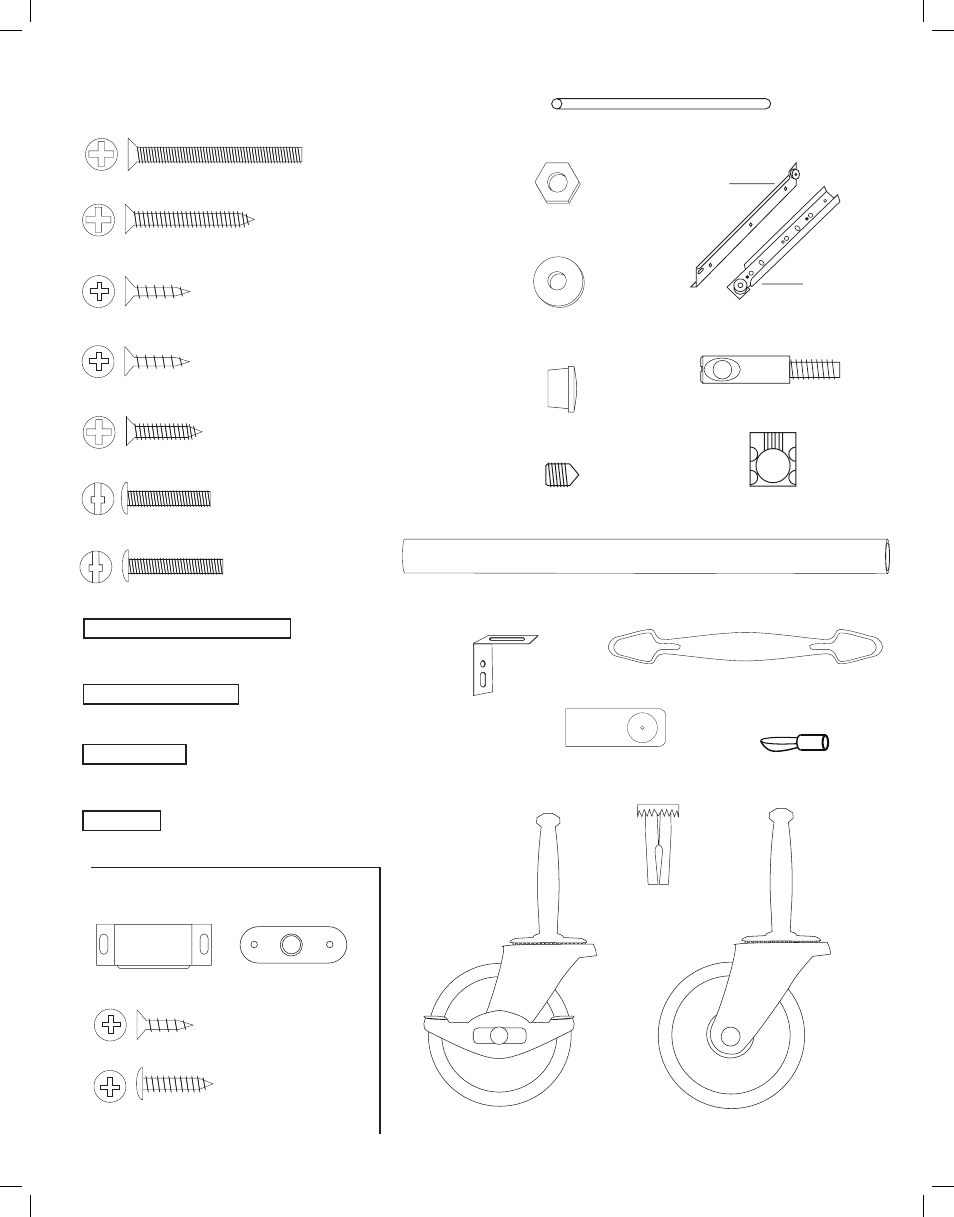

Hardware for 54230
1 3/4” Phillips Flat Head Bolt (8)
1 1/4” Phillips Flat Head #8 Screw (20)
7/8” Truss Head Machine Screw (8)
5/8” Pan Head Screw (8)
3/4” Long 3/16” DIA. Steel Pin (4)
1” Long 3/16” DIA. Steel Pin (22)
1 1/2” Long 3/16” DIA. Steel Pin (8)
Caster Socket (4)
5/8 Wooden Disk (8)
Nickel Handle (6)
Towel Bar Post (2)
Wheel Casters (2) Locking Wheel Casters (2)
Magnet Plate (4) Magnet (4)
3/16” Flat Washer (8)
10-24 Hex Nut (8)
5/8” Phillips Flat Head #7 Screw (12)
5/8” Phillips Flat Head #5 Screw (4)
(8 used on “L” brackets
and 4 used for cabinet glides)
(Used on Drawer Glides)
1/2” Phillips Flat Head #4 Screw (4)
(Used on Magnet Plate)
(Used on Magnet)
2” Long 3/16” DIA. Steel Pin (8)
Bastion Set Screw (2)
Bastion Post (2)
Bastion Barrel Nut (2)
Drawer Glide (1 Set )
Drawer
Cabinet
Metal Shelf Pin (4)
Polished Nickel Towel Bar (1)
(8 are bronze for spice rack)
“L” Bracket (4)
Magnet Pack
1” Phillips Flat Head #8 Screw (4)
(divider panel pin for shelves)
(door pin)
(shelf pin)
(brace pin)
(Used to attach
door handles)
(Used to attach towel bar
and spice rack)
Retainer Rods for Spice Rack (2)
1” Truss Head Machine Screw (4)
(Used to attach
drawer handles)
