Straight on view of cart with front cutaway
6
Make sure 1” Steel Pins were firmly tapped into place in the pilot holes on each of the
center braces in previous steps.
Then, take the center shelf and dip it down into the unit, putting one end down near the

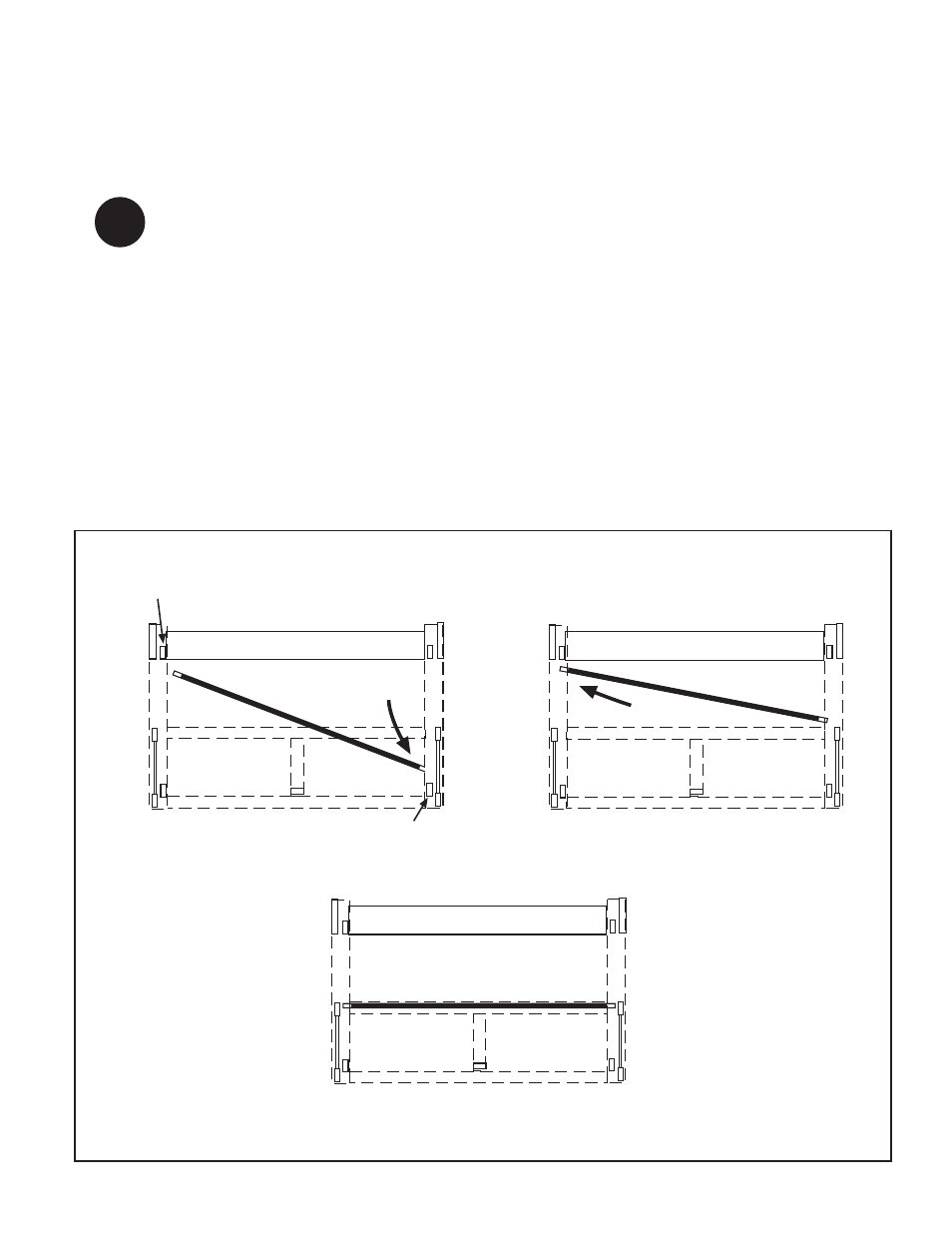

bottom drawer support stick as shown in Illustration 6A. This will allow the other end to
clear the opposite top drawer support stick while resting on the pins in the front and
back center braces. Back the shelf up until both ends are above the steel pin supports
on each side center brace as shown in Illustration 6B. Then settle the shelf down onto
the pins as shown in Illustration 6C.
INSERT SHELF
Top Drawer
Support Stick
Bottom Drawer
Support Stick
Shelf
Illustration 6A
Illustration 6B
Illustration 6C
