Fast EtherHub-12s User’s Guide
3-2 Configuring the Network
Using the RJ-45 Daisy-Chain Port
You can easily connect to another hub via the MDI daisy-chain port (Port 12).
When using
Simplied Cable Length Constraints as described in Chapter 2, the inter-
hub cable length is 5 meters. Figure 3-2 shows a sample configuration.

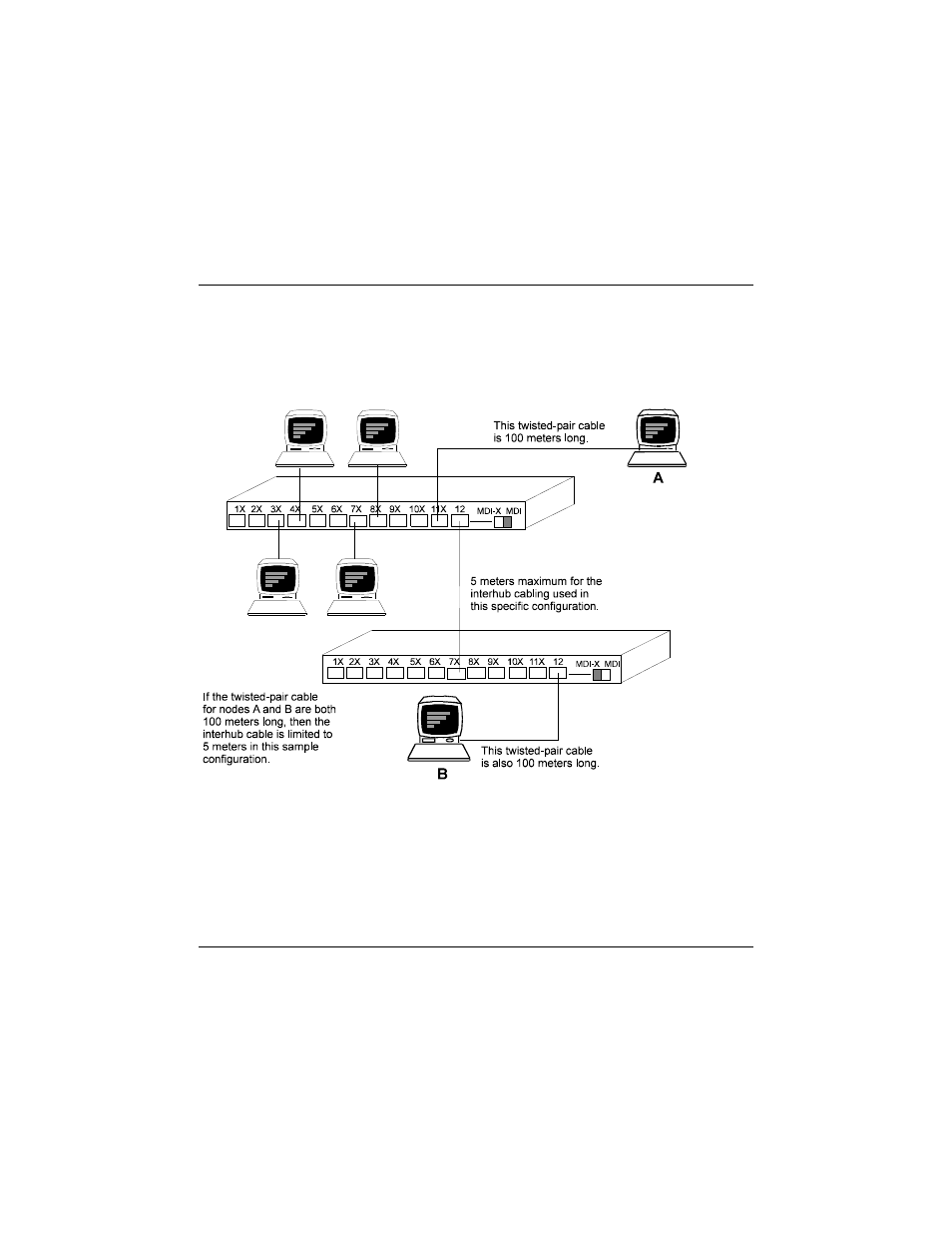

Figure 3-2 Multiple Hub Configuration Using the Daisy-Chain Port
