10
ASSEMBLY
In order to best protect the generator while in the package, this product comes with some
components disassembled. Please complete the following assembly steps before proceeding to use
the generator. For ease of assembly, we recommend attaching the components in the order listed in
this manual.
If after reading this section, you are unsure about how to perform any of the steps, please call
(800) 232-1195 M-F 8-5 CST for customer service.
WARNING: This generator is heavy. Some assembly procedures may require
lifting equipment or two people.
Attach Feet
To attach the feet to the generator, perform the following steps:
1. Stack the two generator wheels on top of each other. Lift the end of the generator that has
the recoil starter onto the stack of wheels (see figure 1). Be careful not to obstruct any
holes on the generator frame.
2. Place one leg onto the frame as shown in figure 2. Line up the holes on the generator
frame with the holes on the bracket portion of the leg. Tighten using two M6x40 bolts, two
M6 nuts, and the included wrench.
3. Repeat step 2 for the other generator leg.

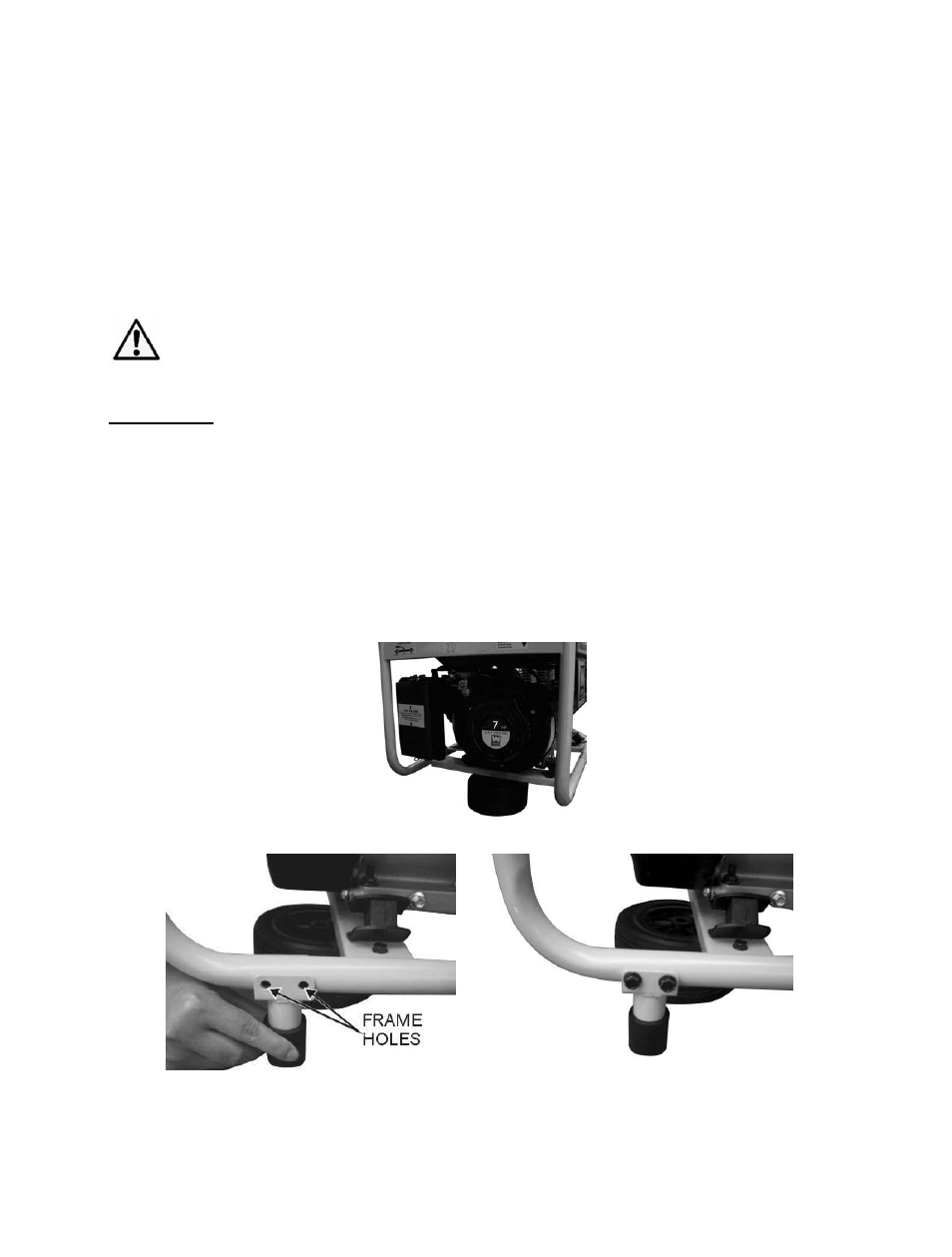

Figure 1- Stacking the wheels
a b
Figure 2- foot assembly
