WEN YTL23308 22Ton Log Splitter - Manual (Page 9)

- 9 -

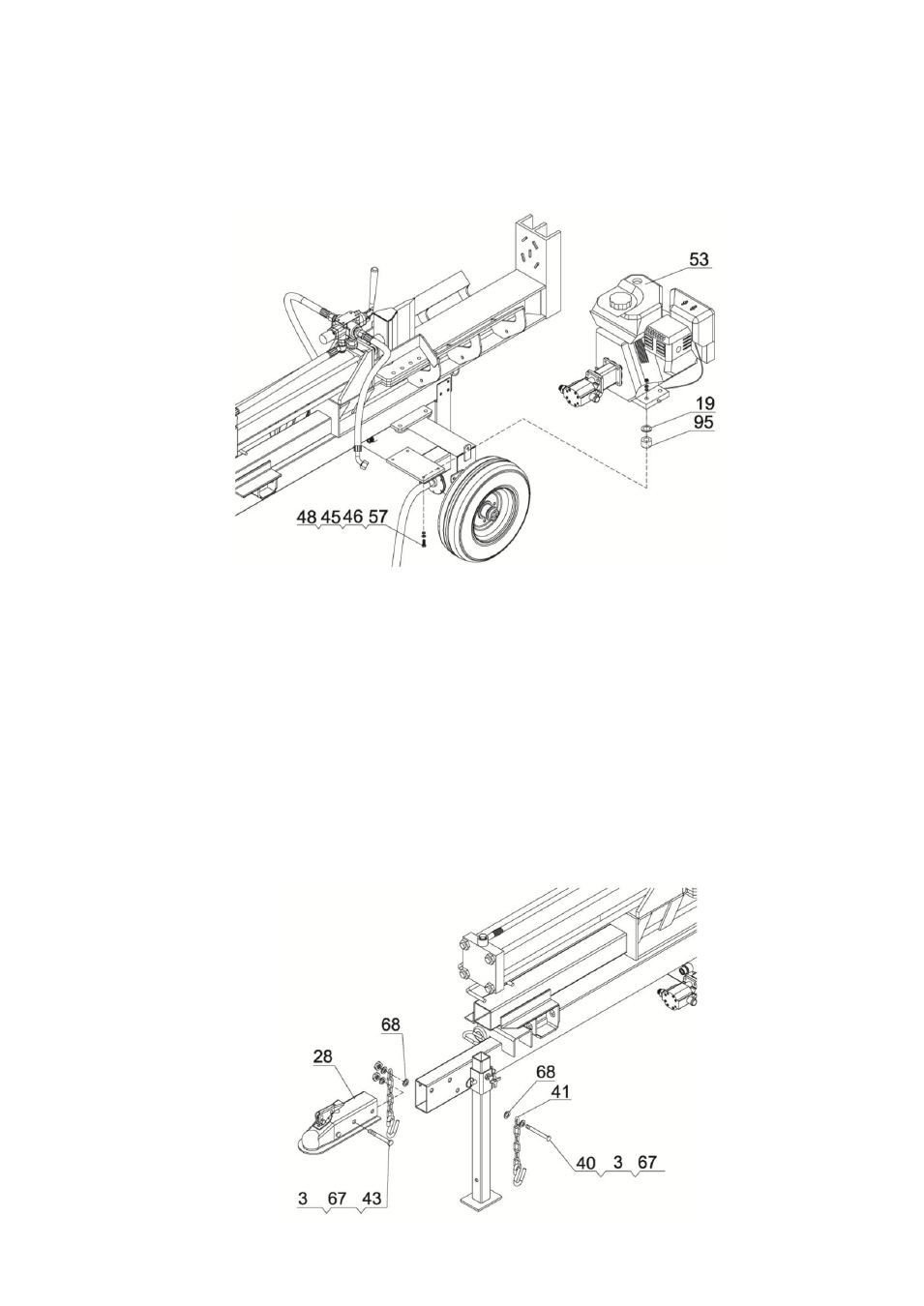

STEP 6: Attach Engine and Pump
1. Attach the engine (#53) to the oil tank using M8x75 hex bolt (#48), Ø8 flat washer (#45), Ø8
lock washer (#46) and M8 lock nut (#57).
2. Place the blocks (#95) and Ø10 big flat washers (#19) between the engine and mounting plate .
NOTE: If you insert the bolts from the bottom plate, secure them using duct tape to hold them
in place while lining up the engine holes with the bolts. Remove the tape from the bottom of
the mounting plate once tightened.
STEP 7: Assemble Ball Coupler and Safety Chains
1. Attach coupler (#28) to the tow bar using M12x80 hex bolt (#43), Ø12 flat washer (#3) and M12
lock nut (#67).
2. Attach the two chains (#41) to the tow bar using M12x90 hex bolt (#40), Ø12 flat washer (#3),
Ø12 thick flat washer (#68) and M12 lock nut (#67).
