- 6 -
CAUTION
Read and follow all instructions for assembly and operation. Failure to properly assemble this
equipment could result in serious injury to the user or bystanders, or cause equipment damage
.
22 TON LOG SPLITTER ASSEMBLY
Set the shipping crate on a solid flat surface and carefully remove the lid. Use two people and take
all parts out of the shipping crate and inspect the components to ensure there are no missing pieces
before starting to assemble the log splitter follow steps 1 through 12.
TOOLS REQUIRED

Rubber or Wooden Hammer

13mm, 16mm, 17mm, 18mm, 19mm, 24mm, 27mm Wrenches

Large Adjustable Wrench

Phillips Screwdriver

Pliers

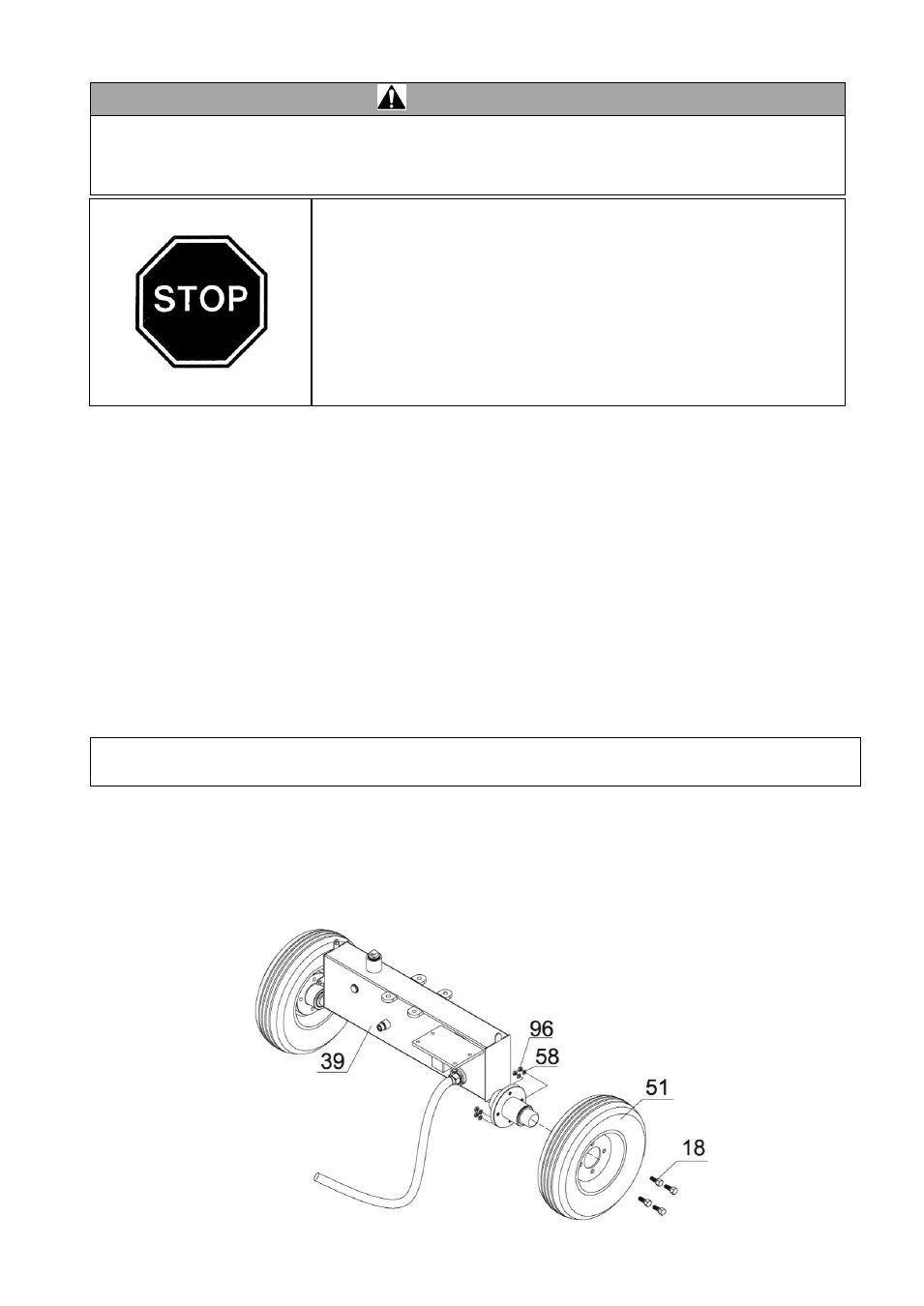

STEP 1: Wheel Assembly
1. Attach the wheels (#51) to the oil tank axle (#39) secure using four surface hex bolts (#18),
Ø12 flat washer (#58) and M12x1.25 hex nut (#96).
Engine Shipped Without Oil.
Before starting engine, fill with SAE 10W-30 motor oil.
See engine manual for engine oil capacity.
Hydraulic Oil Tank is Shipped Without Oil.
When adding oil verify the oil level reads 1 from the top of hydraulic oil
tank if marking is not shown fill to the neck.
Inspect all Log Splitter Components.
If you have damaged components: Contact the freight company that
delivered the log splitter and file a claim.
Assembly Instructions
