Walker Magnetics TURBOMILL 40B - Manual (Page 18)

O.S. WALKER Co. Inc., Turbomill Electroperm Chucks
DD15508M.doc Rev. ~, September 17, 2002
4-7
4.6.3 Face Milling
For on-center face milling, the action of the cutter tends to push the work up to the left
hand end and to the side of the chuck because the center of the cutter is over the center
of the work pieces. This condition cannot always be met, however, and it is sometimes
necessary to position the work piece off-center in relation to the cutter. For off-center
milling, the work piece is still pushed to the same side but towards the end stop on the
right.

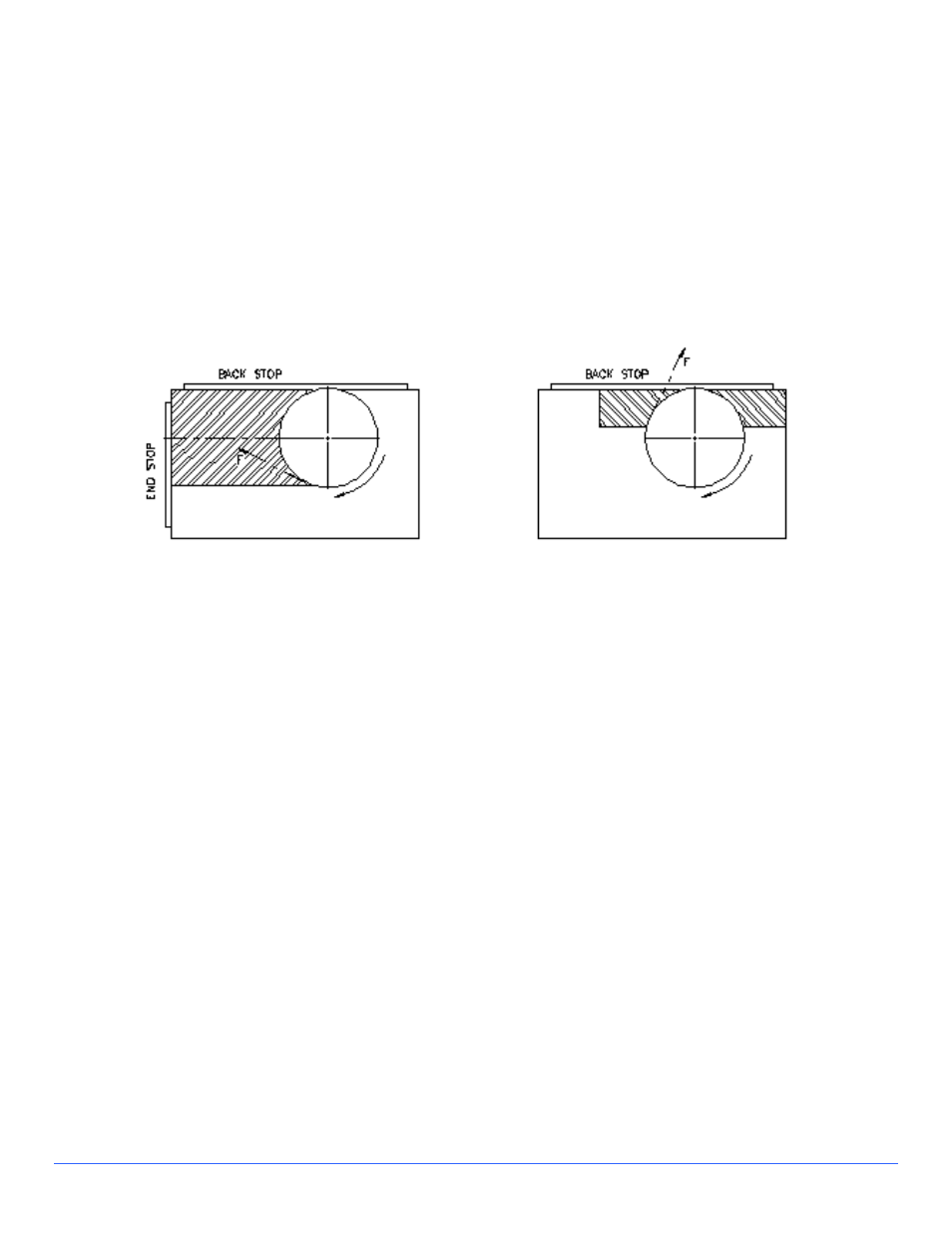

Figure 4-5 Face Milling
