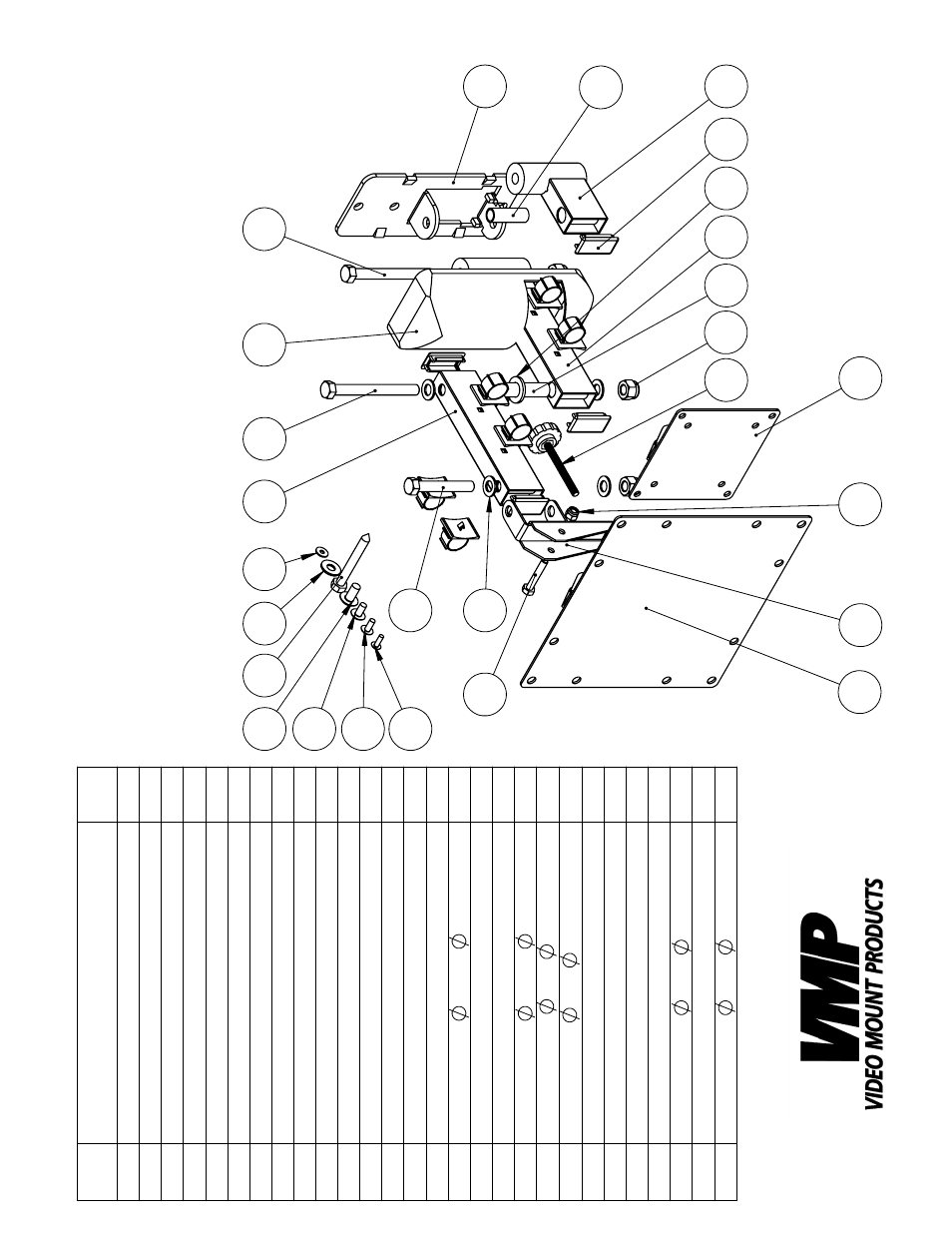

Video Mount Products LCD-2537B - Manual (Page 2)

25
27
24
16
3
6
17 2
1
20
8
9
11
18
19
5B 10
13
4
5A 12
15 14
21 22 23 26
LCD-2537
ITEM NO.
DESCRIPTION
Qty
1
Wall Plate
1
2
Rear Force Arm
1
3
Forward Force Arm
1
4
Pivot Bracket
1
5A
Large Mounting Plate
1
5B
Small Mounting Plate
1
6
Plastic Cover
1
7
Cable Clip
8
8
Stub Arm
1
9
End Plug 40*20
4
10
Adjustable Screw 1/4"-20UNC
1
11
Nylon Nut 3/8"*16UNC
3
12
Hex Screw M6*P1.0*L35
1
13
Nylon Nut M6*P1.0
1
14
Hex Screw 3/8"-16UNC*L2.5"
1
15
Washer
10.2*
19*T1.6
4
16
Metal Pin
1
17
Hex Screw 3/8"-16UNC*L90mm
1
18
Washer
13.5*
20*T2.0
1
19
Spacer
13*
9.8*L72
1
20
Spacer
13*
9.8*L38.5
1
21
Screw M4*P0.7*L12
4
22
Screw M5*P0.8*L12
4
23
Screw M6*P1.0*L12
4
24
Lag Screw 5/16"*L2.5"
3
25
Washer
8.3*
19*T1.6
3
26
Screw M8*P1.25*L16
4
27
Washer
4.3*
12*T1.0
4
