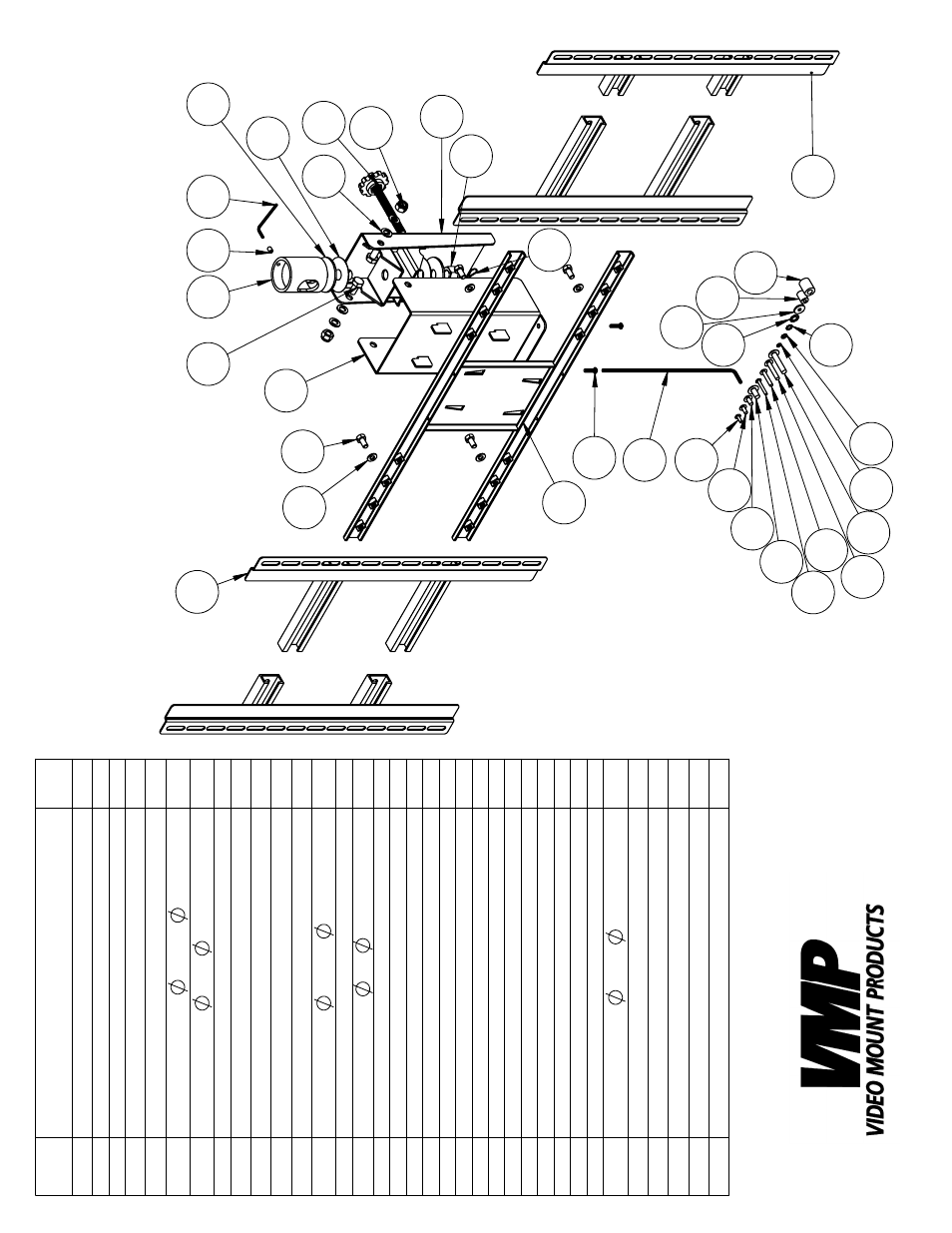

Video Mount Products PDS-LCHB - Manual (Page 2)

14
10
7
17
34
9
13
12
6
1
11
16
3
15
31
32
30
29 28
27
26
25
24
23
22
21
20
19
18 33
5
2
8
4
35
PDS-LCHB
ITEM NO.
DESCRIPTION
QTY.
1
Tilt Support
1
2
Tilt Bracket
1
3
H Bracket
1
4
Mounting Rail
2
5
Security Screw M5*P0.8*L20
2
6
PVC Washer
16.5*
55.6*T0.7
2
7
Washer
17*
55.6*T3.0
2
8
Cotter Pin
1
9
Adjusting Screw M12*P1.75*L100
1
10
Pipe Couple
1
11
Nylon Nut M16*P2.0
1
12
Nylon Nut M10*P1.5
2
13
Washer
10.5*
18*T1.6
4
14
Hex Screw M10*P1.5*L
25
2
15
Washer
8*
16*T1.6
4
16
Hex Screw 5/16"-18UNC*L5/8"
4
17
Brake Screw 1/4"-20UNC*L3/8"
1
18
Cross Screw M4*P0.7*L12
4
19
Cross Screw M5*P0.8*L12
4
20
Cross Screw M6*P1.0*L12
4
21
Cross Screw M8*P1.25*L16.5
4
22
Cross Screw M4*P0.7*L30
4
23
Cross Screw M5*P0.8*L30
4
24
Cross Screw M6*P1.0*L35
4
25
Cross Screw M8*P1.25*L40
4
26
Lock Washer M4
4
27
Lock Washer M5
4
28
Lock Washer M6
4
29
Lock Washer M8
4
30
Washer
5.5*
18*T2.0
4
31
Spacer M6
4
32
Spacer M8
4
33
Long Allen Key M4
1
34
M3 Allen Key
1
35
Mounting Rail B
2
