ET-112
Specifications are subject to be changed without notice.
Page 5 of 15
Version 1.3

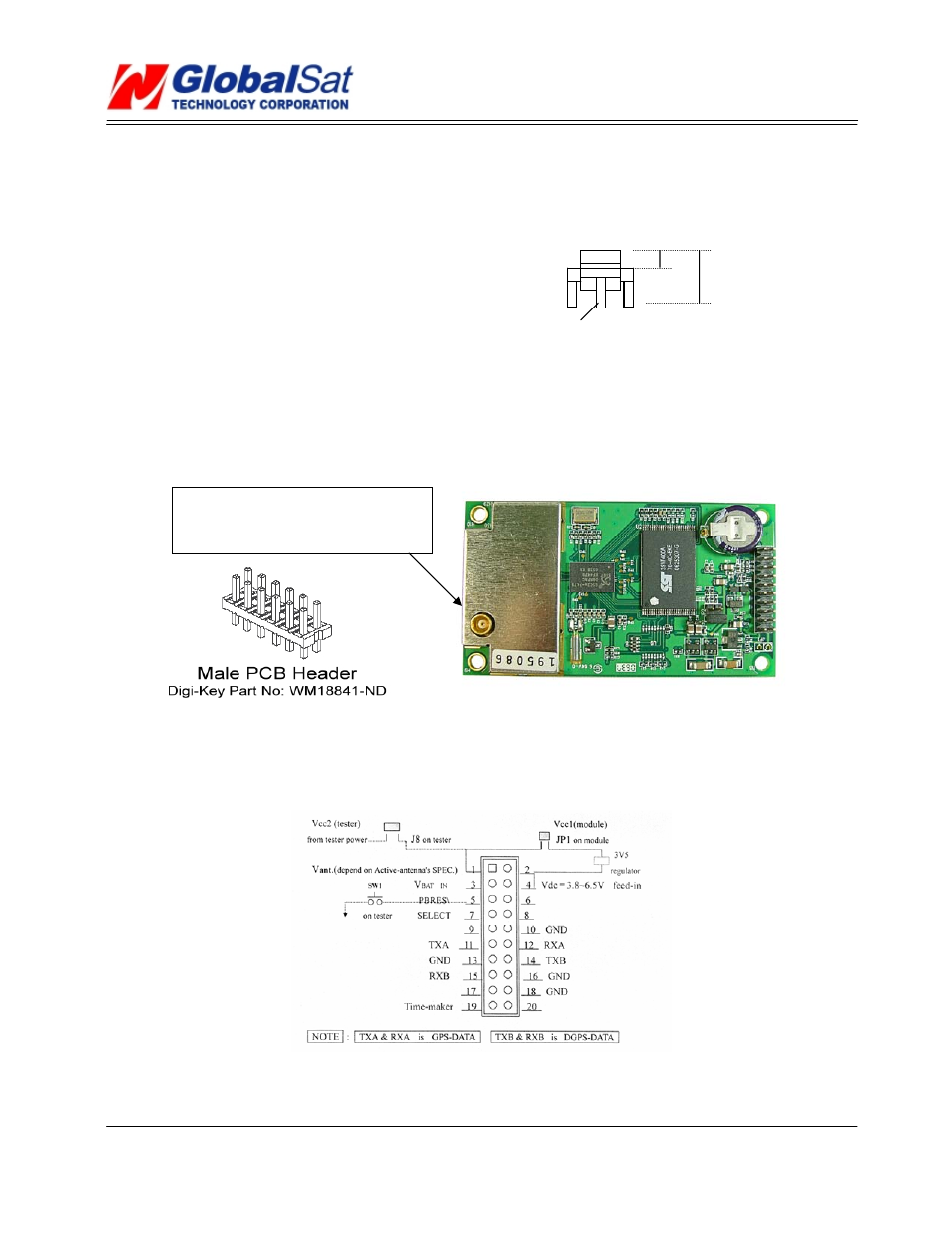

OPTIONAL MCX CONNECTOR
Φ 4.5
1. Needs external Active-antenna & its power Vant. 6.4 mm
2. Needs external Vdc = 3.8 --- 6.5 Vcc 10.0 mm
3. Current supply I = 150 mA
4. PCB SIZE: 40.64mm x 71.12mm
Φ0.95 pin x 5
5. Connector (pitch=2.0 mm) pin-assignment
Pin Assignment
ET-112 equipped with MMCX female
connector
