Tennsco Single Tier Lockers One Wide - Manual (Page 2)

1. All reference numbers refer to the illustrations in
Figure 1, the door lock detail, and the chart on
the back cover. This is to help you identify the
various parts as they
are mentioned.
3. Bolt left side
(Ref. No. 2) to the
back so that side flange
fits around back.

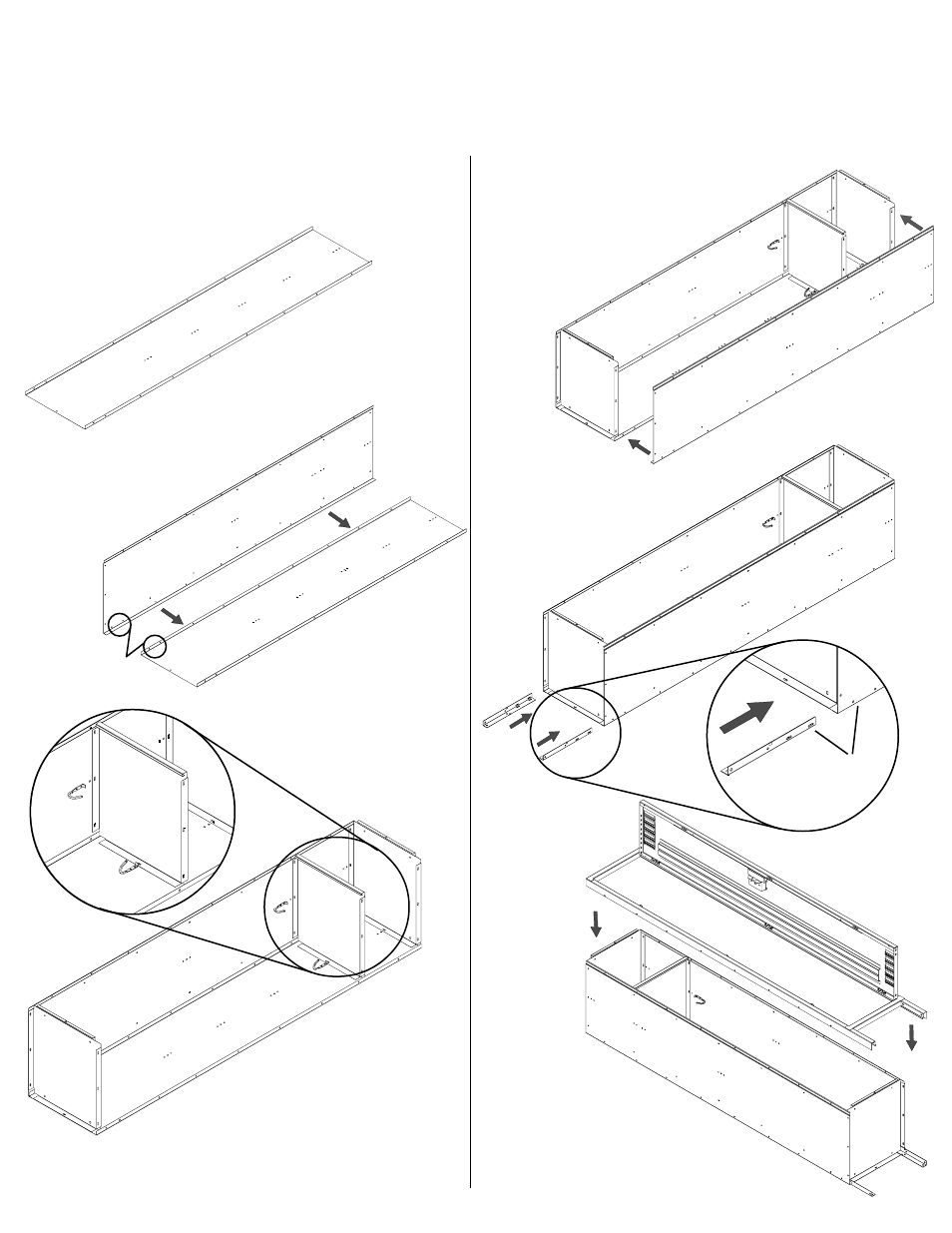

ASSEMBLY OF SINGLE TIER LOCKERS -- SINGLE WIDE UNIT
Assemble lockers individually or in groups of three. Do not tighten bolts until unit is
completely assembled. Tools required: 11/32" nut driver (11/32" socket may be substituted).
4. Bolt shelf
(Ref. No. 4) to back
and side. Attach coat
hooks (Ref. No. 5) as shown.
(For lockers 18" and deeper, bolt
shelf in place, then attach side coat
hook through third and fourth holes
below shelf). Attach top and bottom to
side and back, as shown above.
5. Bolt right side (Ref. No. 7) to the
back so that side flange fits
around back. Also attach
to top, bottom and shelf.
Attach remaining
coat hook.
6. If the locker has legs, insert the
leg into the corner between
the bottom and the side.
Bolt the leg to the
side using two
#8-32 x 1/2
bolts
and
#8-32
nuts.
7. Place door
and frame
assembly (Ref. Nos.
8 & 9) over the locker
body and secure with bolts
and nuts. Make certain that body
sides are inside frames.
Bottom
Top
Left
side
Do not bolt
through rear
leg holes yet.
Bottom
Shelf
Top
Top
Bottom
Right side
Door
& Frame
assembly
Shelf
Top
slots
Back
2. Place back
(Ref. No. 1) on a
protected flat surface so that
the flanges face upward. If
available, place the unit on a pair of
"saw horses" for easier
installation.
Back
