Tools needed: An

" nut driver (provided free with unit); a hammer; and a flathead screwdriver.

Two people recommended for installation. Approximate assembly time: 15 to 25 minutes.

INSTALLATION OF 1871 AND 2471 CABINETS

The reference numbers used throughout this
sheet refer to the illustration on the back cover.

This is to help you to identify the various parts as

they are mentioned.

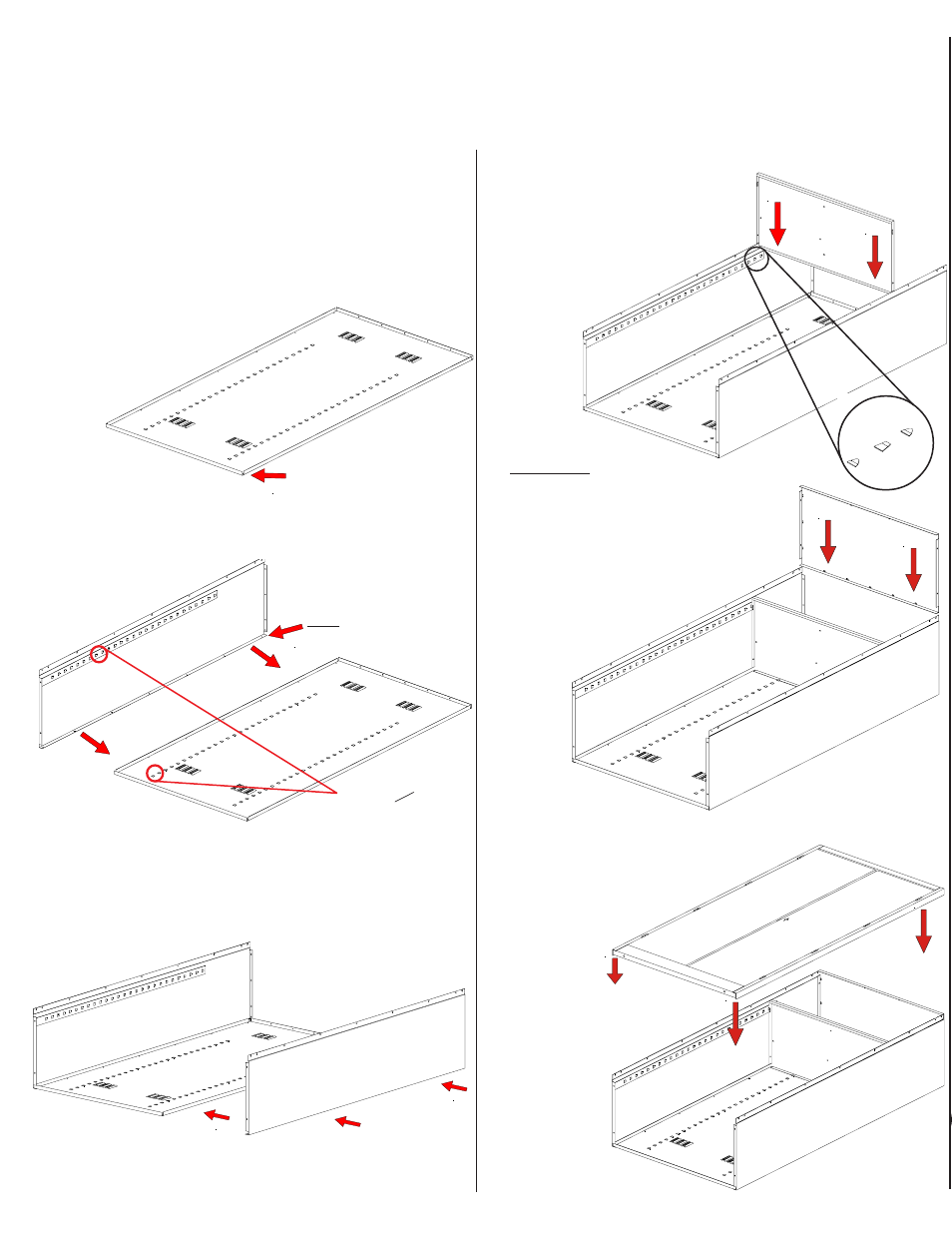

Place the cabinet back (Ref. No. 1) on a

protected surface to prevent

scratching the paint.

The flanges should

be facing

upward.

Attach the right side (Ref. No. 3) to the back in

the same manner

as you did in step 3,

again making sure that

the flange is around

the back and

that the lances on the shelf adjustment strips are

pointed in the same direction as those on the

back and left side.

Flanges face upward

Attach the left side (Ref. No. 2) to the back by

placing flange (A)

around the back and

bolting the back

and side

together

with seven bolts

and nuts (Ref. Nos. 18 & 19). Be sure that the

lances on all shelf adjustment strips (B) point in

the same direction.

Flange goes

under back

All lances

point

both

back

and

side.

Place the shelf (Ref. No. 4) into one of the upper

positions on the unit by insert-

ing the shelf edges into the

lances on all four shelf adjust-

ment strips. Be sure that the

channeled edge of the

shelf is toward the

cabinet front.

If a lance

is too

tight, it

may be

helpful

to use a

screwdriver to

SLIGHTLY pry it open.

Place the top (Ref. No. 5) onto

the unit. Be sure that the flanges

tuck inside the cabinet sides and

back. Secure with 11 bolts and

nuts (three along each

side, and five in the

back). The front

part of the

top will

bolt into

place in

step 8.

With both doors in the closed position, lift the door

and frame assembly (Ref. No. 6)

and place it over the cabinet

body. Be aware that the

door latches have

not yet been

attached, so

the doors

could potentially swing

open if the door frame is

held in an upside-

down position.

The door

frame should

cover the

outside edges

of the entire

storage cabinet front.

Inset A
