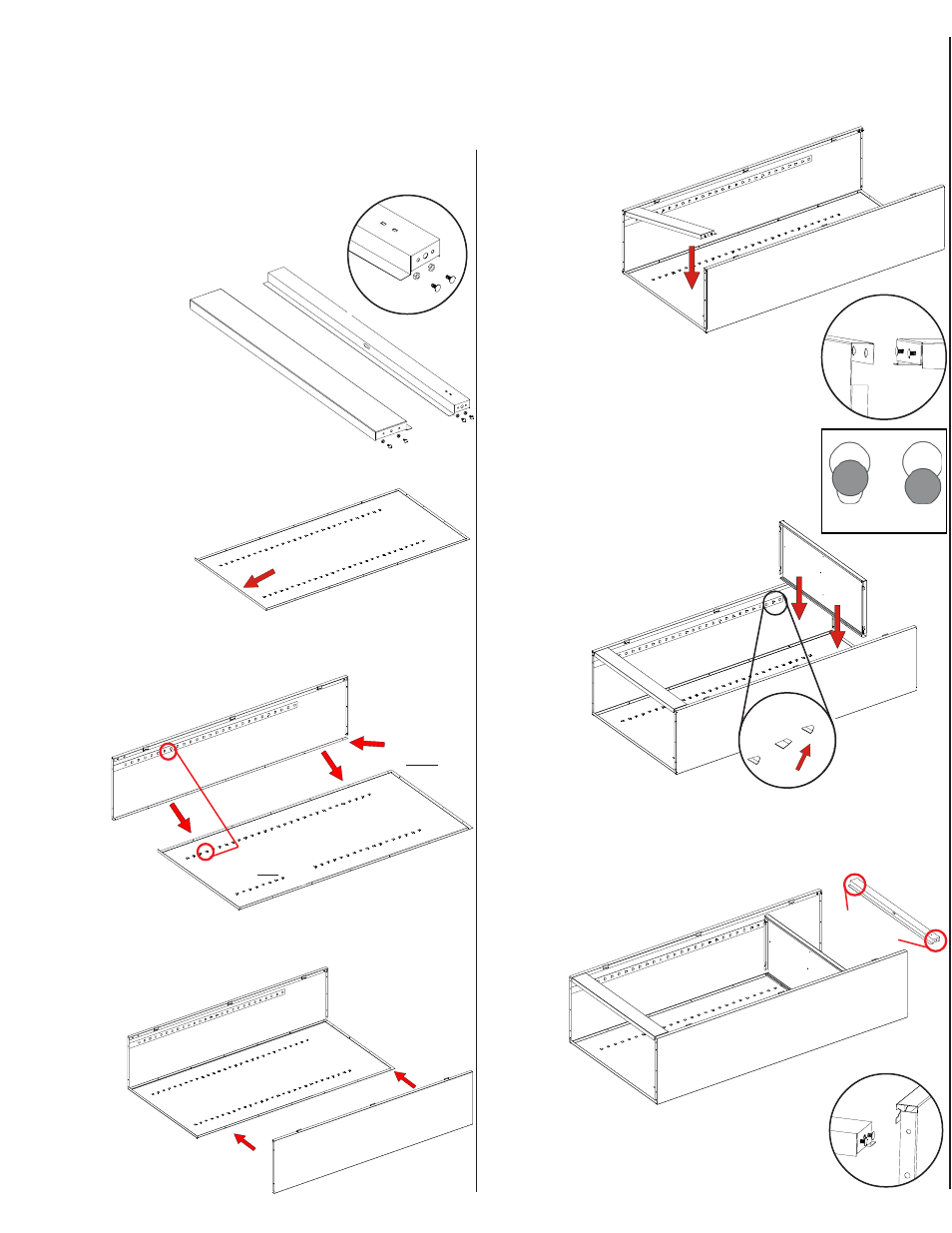

ASSEMBLY OF 1471 CABINETS

1.

All reference numbers refer to the illustration on

the back cover. This is to help you to identify the

various parts as they are mentioned.

3.

Place the cabinet back (Ref. No. 1)

on a protected surface to

prevent scratching the

paint. The flange

on the bottom of

the back should be

facing upward.

5.

Attach the right side (Ref. No. 3) to the back in

the same manner as you

did in step 4.

Make sure

that the

lances

on the

right side

are pointed in

the same direction

as those on the back and

the left side.

8.

Locate the two keyhole-shaped slots on the top

front of each end-panel. Attach the header (Ref.

No. 5) in the same way you attached

the sill, by inserting the previously

attached loose bolt heads

into the large end

of the key-

hole

slots

(Inset D).

Position

by sliding

the bolts

securely into the

smaller end of the slots. Refer to Inset C

(in step 6 above) for improper and

proper seating of the boltheads. Tighten

the four nuts securely.

Flange

faces

upward

7.

Insert the shelf (Ref. No. 4) into the top

position on the shelf adjustment strips.

Do this by inserting the shelf edges

into the lances on all four strips.

Be sure that the channeled edge

of the shelf is toward the

cabinet front. If a

lance is too

tight, it

may be

helpful to

use a

screwdriver

to SLIGHTLY

pry it open.

Two bolts

and nuts on

each side

Inset D

2.

Prepare the header (Ref. No. 5) for

installation by inserting a bolt into

the two outside holes on

each end, as

shown in Inset A.

The center hole

should remain empty.

Loosely attach nuts to each bolt,

leaving enough slack so that

the bolt heads may later be insert-

ed into a slot. Prepare the sill (Ref.

No. 6) in the same way.

Sill

Hea

der

Inset A

4.

Attach the left side (Ref. No. 2) to the back by

placing flange (A) around the

back and

bolting the pieces

together with

seven bolts

and

nuts

(Ref.

Nos.

18 &19).

Be sure that

the lances on

all shelf adjustment

strips (B) point in the same direction.

6.

Locate the two keyhole-shaped

slots on the front of

each end-panel

bottom. Attach

the sill (Ref.

No. 6) by

inserting the

loose bolt heads

(which you attached

to the sill in step 2) into the large end

of the keyhole slots (Inset B). Position

by sliding the bolts securely into the

smaller end of the slots. Inset C at right

shows improper and proper seating of

boltheads. Tighten the four nuts securely.

Tools Needed: A free

11

/

32

" nut driver is provided with each Tennsco cabinet (Ref. No. 19). In addition,

you will need a flathead screwdriver. A hammer is required to install the hinge pin and lock bar.

Two people recommended for assembly. Approximate assembly time: 15 to 25 minutes.

Inset B

Inset C

Improperly

seated

Properly

seated

A

Flange goes

under back

B

All lances point UP

on both back

and side.
