17 © Trynex International 2011 (REV 001)

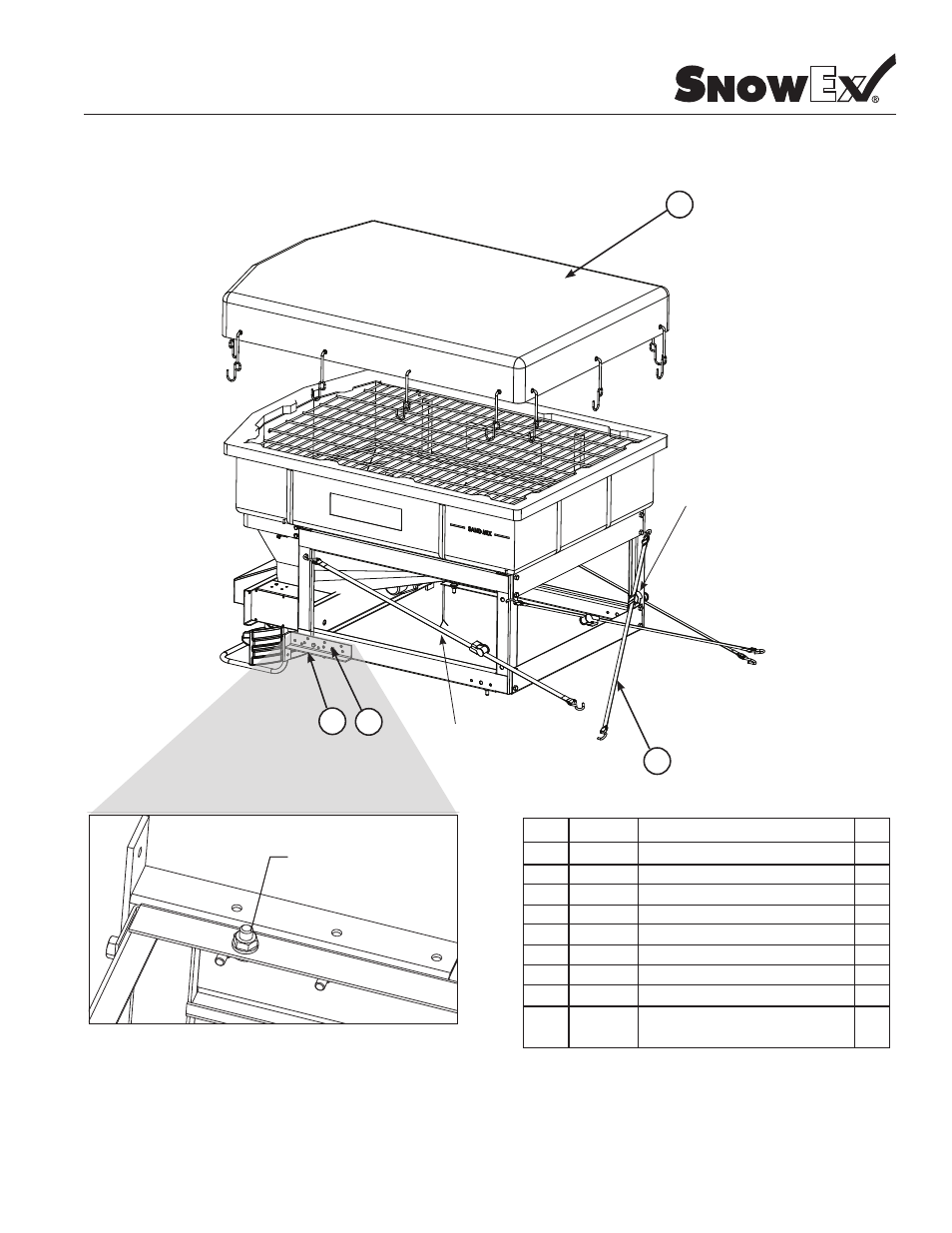

Mounting Instructions
Model # SP-3000-SP-6000
Through floor/b
mounting bolts. Through floor/bed
mounting bolts.
Figure 2: Frame Mounting Bolts
Figure 1
Key Part No. Description Qty
1 D4116 Bolt | 1/2”-13 X 1-1/2” 4
2 D4119 Washer | 1/2” Flat 4
3 D4120 Nut | 1/2”-13 Nylox 4
4 D4121 Bolt | 3/8”-16 X 1” 4
5 D4124 Nut | 3/8”-16 Nylox 4
6 D6503 Ratchet Strap(4PK) 1
7 D6536 Adjustable Stop Bracket | Right 1
8 D6537 Adjustable Stop Bracket | Left 1
9 D6499 Tarp Kit | SP-3000 1
D6510 Tarp Kit | SP-6000 1
Strap from rear of
vehicle to front corner
Cross Left Upper to
Right Lower
Cross Right Upper to
Left Lower
6
9
7 8
