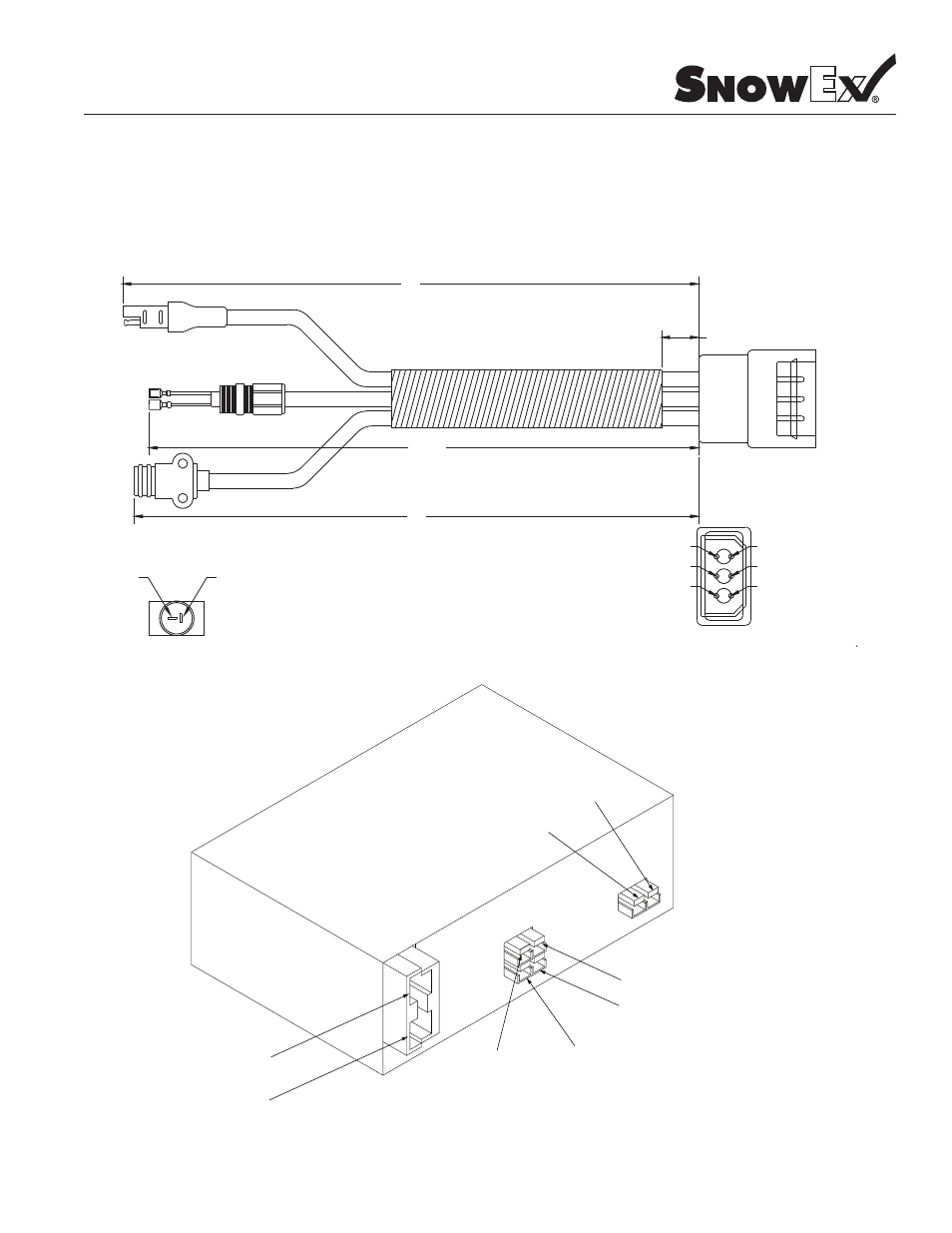

Harness Diagram
Model # SP-3000/SP-6000
D6511 Spreader Harness
D6527 Controller
Black
Negative (-)
Red
Positive (+)
Vibrator
Red Positive (+)
Spinner
Red Positive (+)
Auger
Red Positive (+)
Vibrator
Black Negative (-)
Spinner
Black Negative (-)
Auger
Black Negative (-)
Vibrator Positive
Auger Positive
Spinner Positive Spinner Negative
Auger Negative
Vibrator Negative
Positive
Spinner Plug
Vibrator Plug
Auger Motor Power
Negative
Male
Black
Female
Red
Load
View
Load
View
5”
19 1/2” Tubing
42”
47”
65 1/4”
