© TrynEx International 2013 (REV B) F50753 7
Assembly Instructions
Model # SP-65

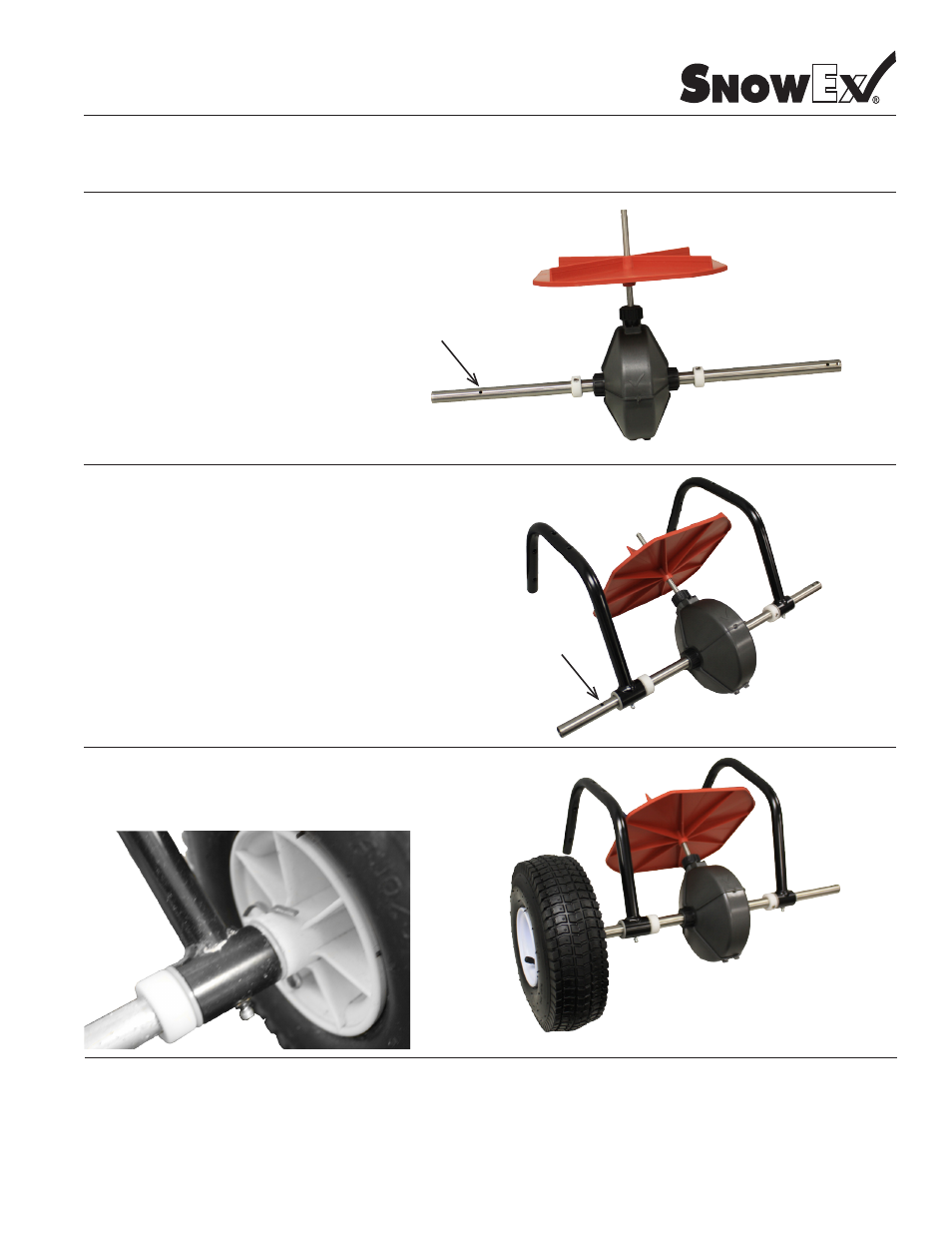

STEP 1
Open Box. Remove the Axle/Spinner Assembly. Slide the Shaft Collars
from the hardware kit onto the axle - one on each side of the Gearbox
STEP 2
Slide the Hopper Frame Assemblies over the Axle – one on each side
of the Gearbox.
STEP 3
Install Drive Wheel. Slide the 2” Cotter Pin through both the wheel and
axle.
One Hole in Axle – Left.
One Hole in Axle – Left.
