ShelterLogic 23571 10 x 20 Super Max Canopy - Manual (Page 7)

05-23571-0B Page 7
Grommet Panels for Bungees
Grommet
Panel
10066
10044
10045

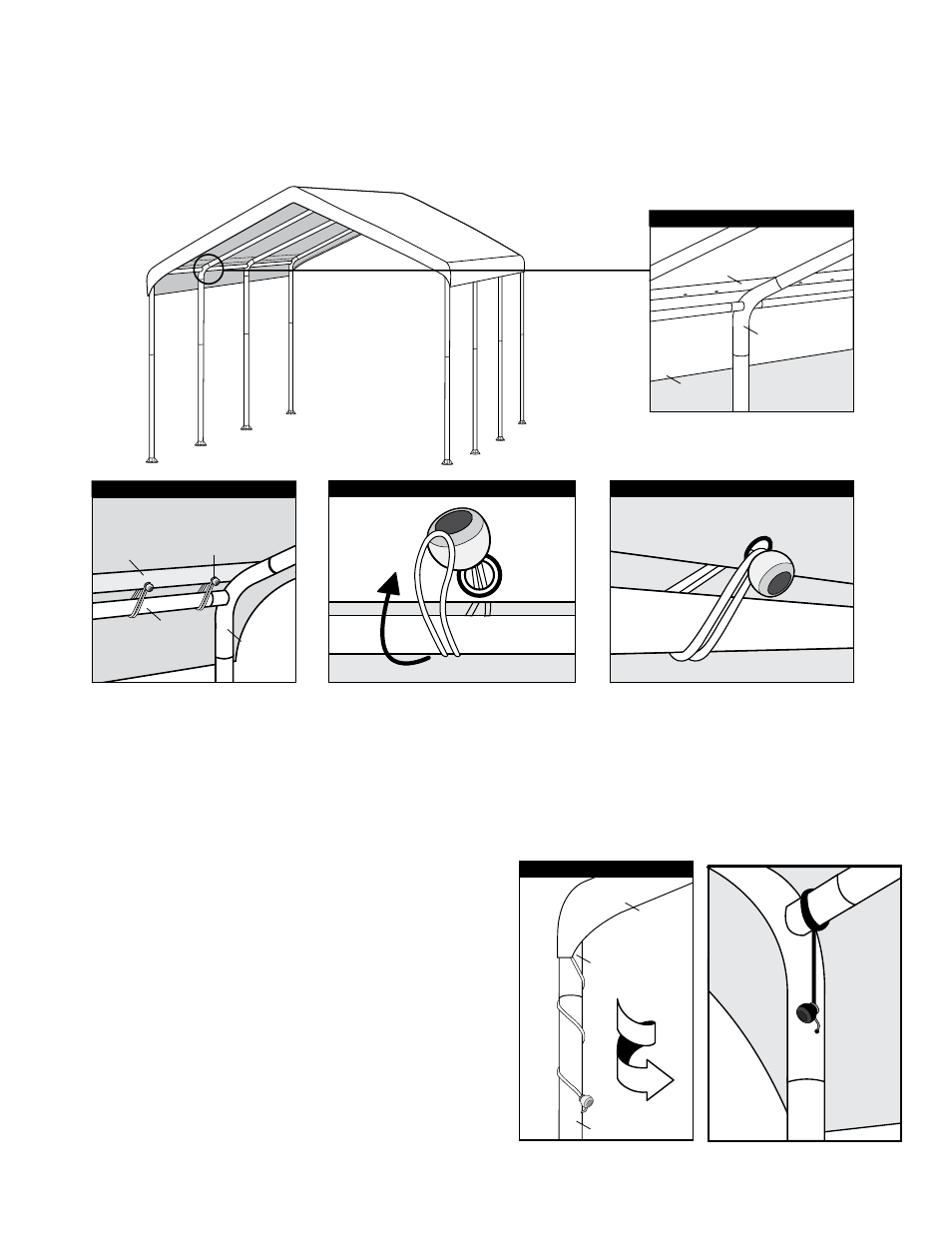

7. PlACE COvER AND SECURE tO CANOPY FRAME
A. Place cover over assembled roof frame with grommet panels facing down, aligned with cross rails.
B. Make sure the cover is properly aligned on the frame, secure the four corners of the cover with bungees
(10066) to the frame first . Attach remaining bungees.
Re-adjust bungees position along cross pole as needed to ensure a tight and even fit of the cover to the frame.
Grommet Panels for Bungees
Grommet Panel
10302
10047
Secure Bungee Around Plastic Ball Insert Bungee Cord Through Grommet
8. tIGHtEN tHE COvER WItH tWISt tItE ™
A. Wrap the cover's cord with plastic ball and "S" hook
at the corners of the cover around the corner leg poles.
Insert "S" hook into the hole of the corner leg poles.
Twist each leg pole toward the inside of the shelter until
the cover becomes tight. Twist the leg poles equally to
ensure the cover stays aligned during tightening.
B. To keep the leg in place, wrap a TwistTite™ cord
around the cross rail and insert its "S" hook into the
lined-up hole of the leg pole and 3-way connector.
This will prevent the leg from "untwisting". Do this at
each corner.
Twist-Tite ™ Tighten Cover
10043
10302
10045 B A
