ShelterLogic 23571 10 x 20 Super Max Canopy User Manual
Page 19
Página 19
05-23571-0B

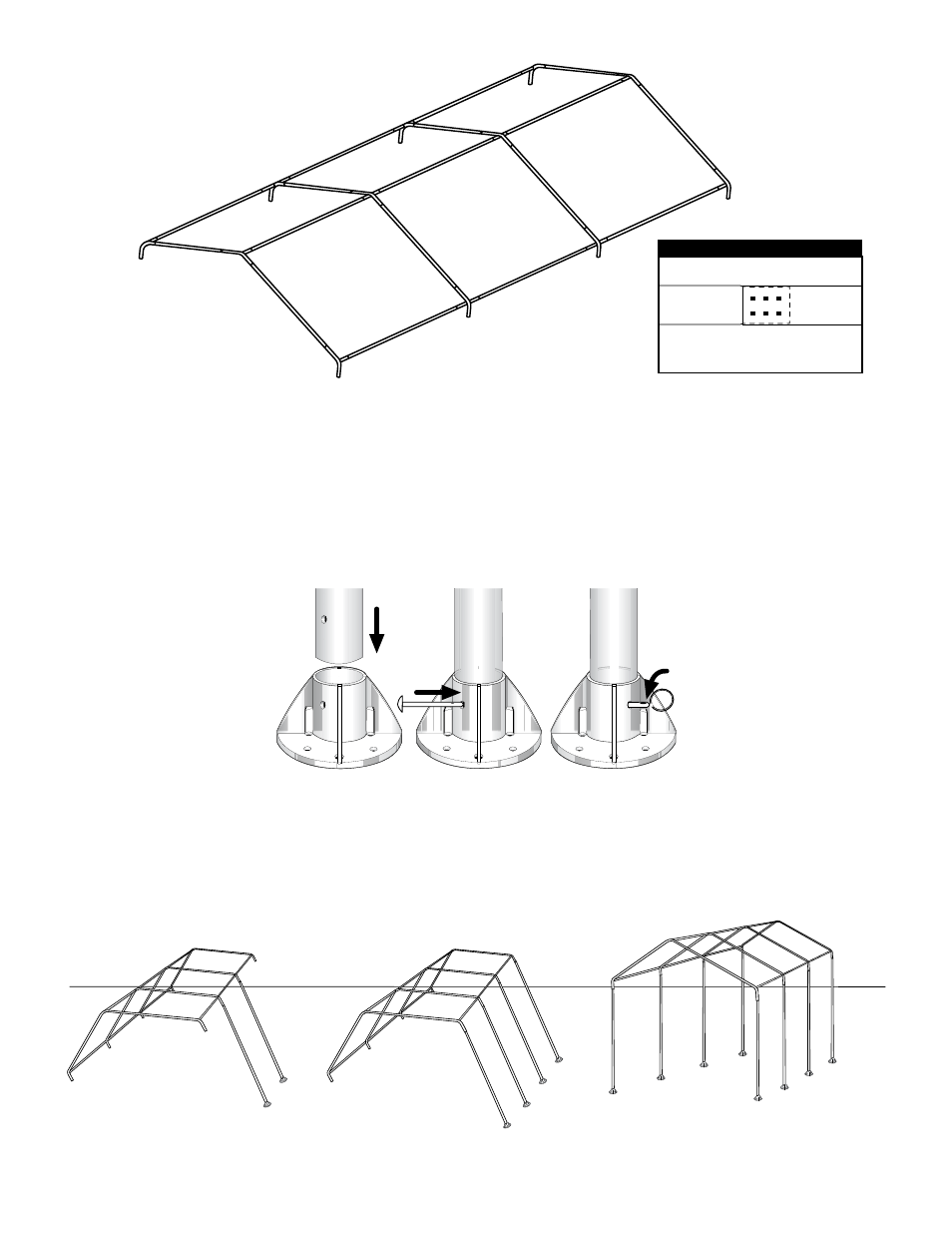

2. ENSAMBlE El tECHO
NOTA: comience con el haz de centro,
entonces ensamble las caras.
3. ENSAMBlE lOS PIES A lAS PIERNAS
4. ENSAMBlE lAS PIERNAS Al MARCO DEl tEjADO
Ensamble todas las piernas a una cara primero. Deje la otra cara del tejado enmarcar resto en la tierra.
Repetición para la cara opuesta.
A
B
A. Inserte los polos de la pierna (10043) en las placas del pie (10050). Alinee los agujeros.
B. Inseret uno contacto largo (10052) a través de las 8 piernas para asegurar el pie bajo.
Repetición con cada pierna.
Conexiones de tubos que se disminuyen
