ShelterLogic 22533-22537 10x20 Straight Leg Pop-Up User Manual
Page 4
Page 4
05-22582-22583-22533-
22534-22535-22536-22537-0B

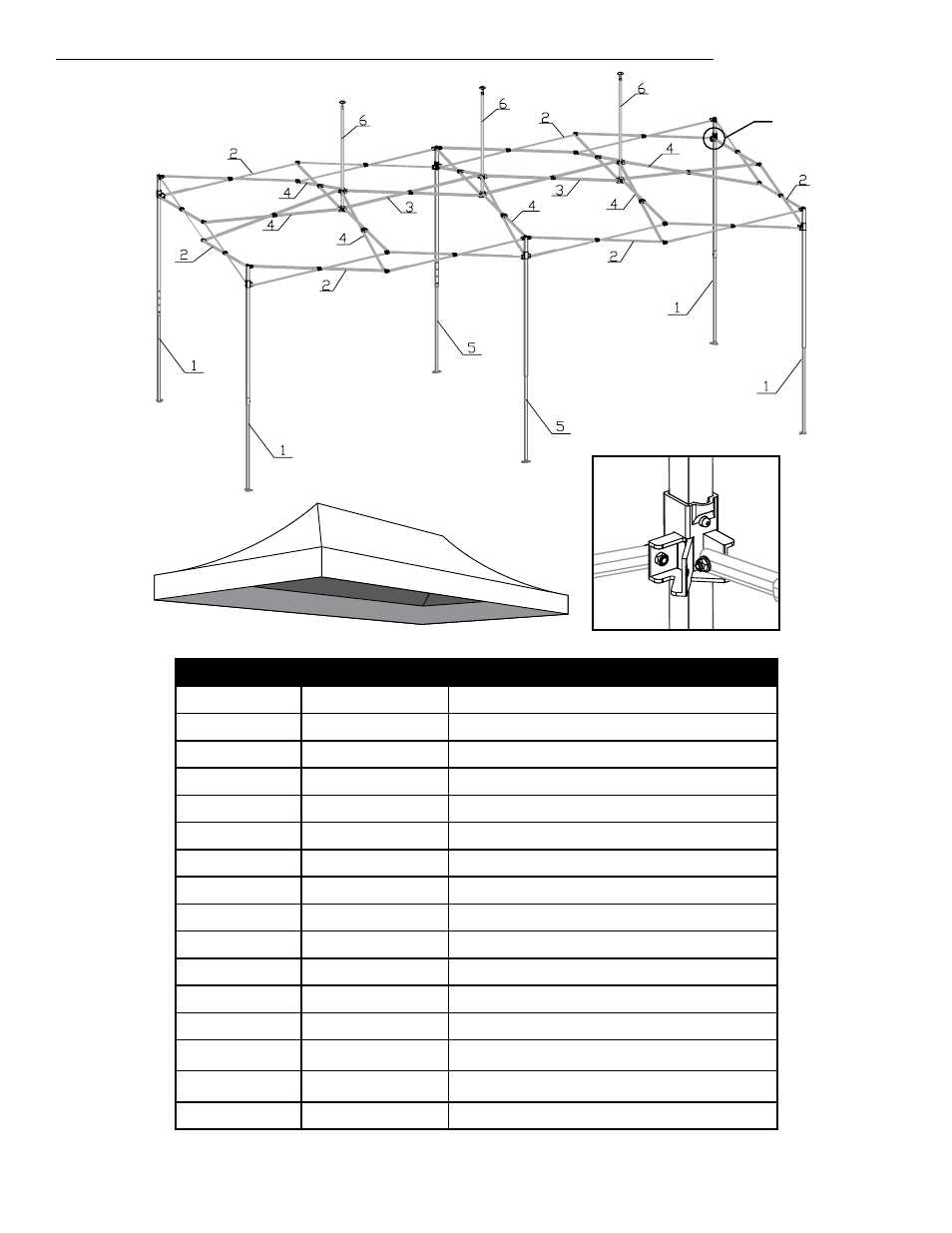

Part
Part Number
Description
1
15381
Leg Tube Assembly, side
2
15370
Gemel Assembly, side 1
3
15399
Gemel Assembly, middle
4
15373
Gemel Assembly, supports
5
15498
Leg Tube Assembly, middle
6
15376
Top Tube Kit
7
800274
Replacement Cover - Desert Bronze
7
800237
Replacement Cover - Green
7
800792
Replacement Cover - White
7
800795
Replacement Cover - Red
7
800793
Replacement Cover - Blue
7
800794
Replacement Cover - Black
7
800791
Replacement Cover - Checkered Flag
8
22606
SLIDING CONNECTOR KIT
not shown
22607
NUTS AND BOLTS KIT
not shown
800244
Replacement Roller Bag
to order replacement Parts, Please order by Part number:
7
8
see
8
