CORRECT
NOTE: The ShelterLogic ® logo should
be oriented as shown below. GROMMETS
FOR DOOR kIT

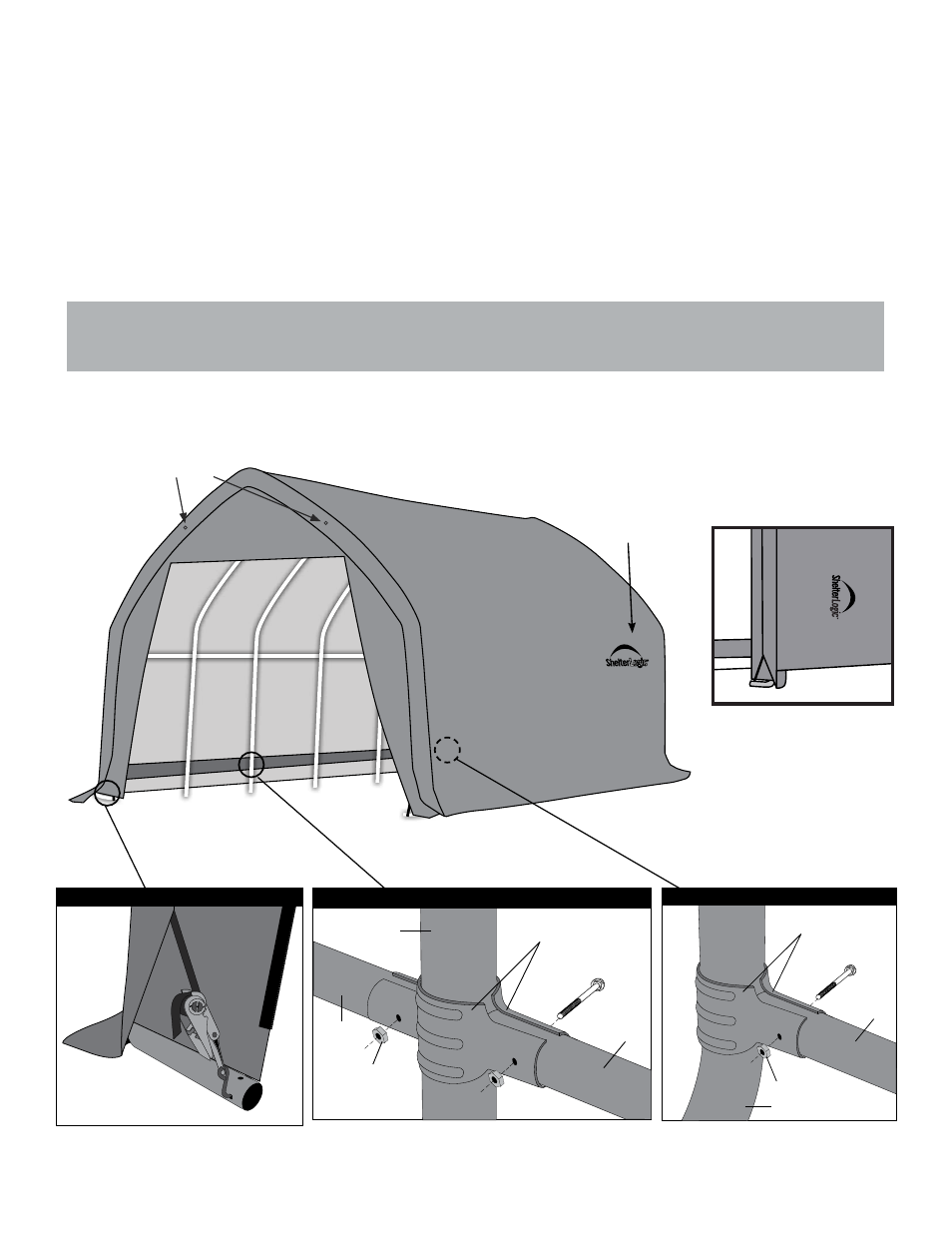

8. InSTAllInG coVer AnD coVer rAIlS
A. Lay the cover on the ground next to the frame with inside of the cover (the side with the pipe pockets) facing
down and the webbing on the front and rear of the corner of the building. Make sure that the Grommets are
facing the FRONT of the frame.
B. Pull cover over the frame, making sure to center cover on frame. There should be an equal amount of over-
hang at all four corners.
C. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself.
D. Disassemble cover rails and slide through fabric pockets at each leg and reattach with clamps to each leg.
Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
E. Check and tighten Ratchets and Cover Rails monthly to ensure the cover is tight.
IMPORTANT NOTE: Your pre-packed Roll-Up Door Kit includes a manual that instructs you to
cut holes for installation (Step F). The GIB SUV/Truck includes grommets in the cover
especially for this Door Kit. DO NOT cut holes as instructed in Step F.
Webbing and Ratchets Securing Cover
10115
10110
10110
10111 802843
01010
Middle Rib Cross Rail Clamps
10115
10110
10112
802842
01010
End Rib Cross Rail Clamps
INCORRECT
