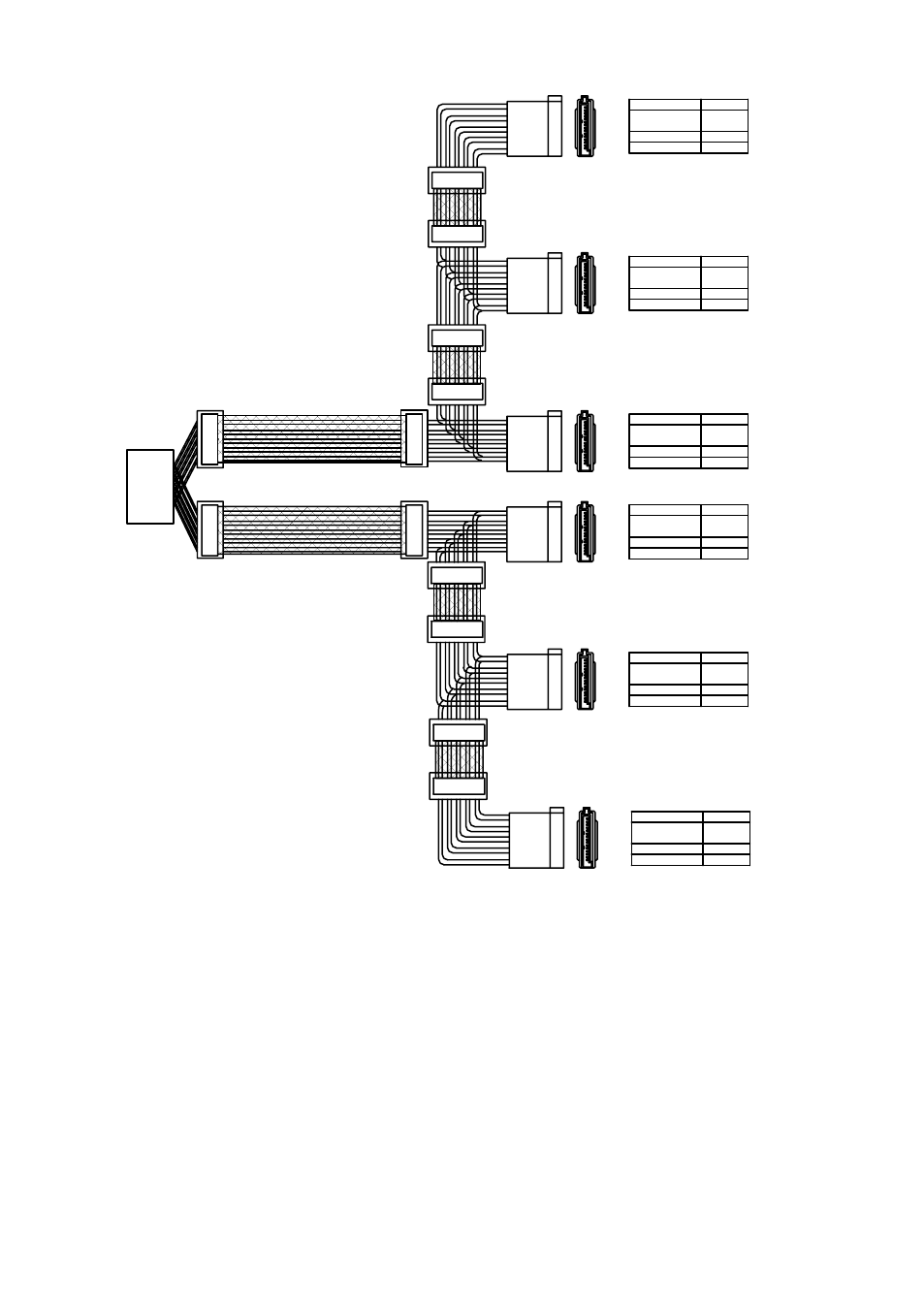

15-pin power connectors for SATA devices
Attention:
As a continuing policy of product improvement at SHARKOON, the design and
specifications are subject to change without prior notice. National product speci-
fications may vary.
All rights reserved especially (also in extracts) for translation, reprinting, reproduction
by copying or other technical means. Infringements will lead to compensation.
All rights reserved especially in case of assignation of patent or utility patent. Means
of delivery and technical modifications reserved.
© SHARKOON Technologies GmbH 2009
www.sharkoon.com
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLACK
BLACK
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLACK
BLACK
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLACK
BLACK
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLACK
BLACK
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLACK
BLACK
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLACK
BLACK
10PIN
RUSH POWER M
