mpb025nmdl3sm-rev0913 Page 1

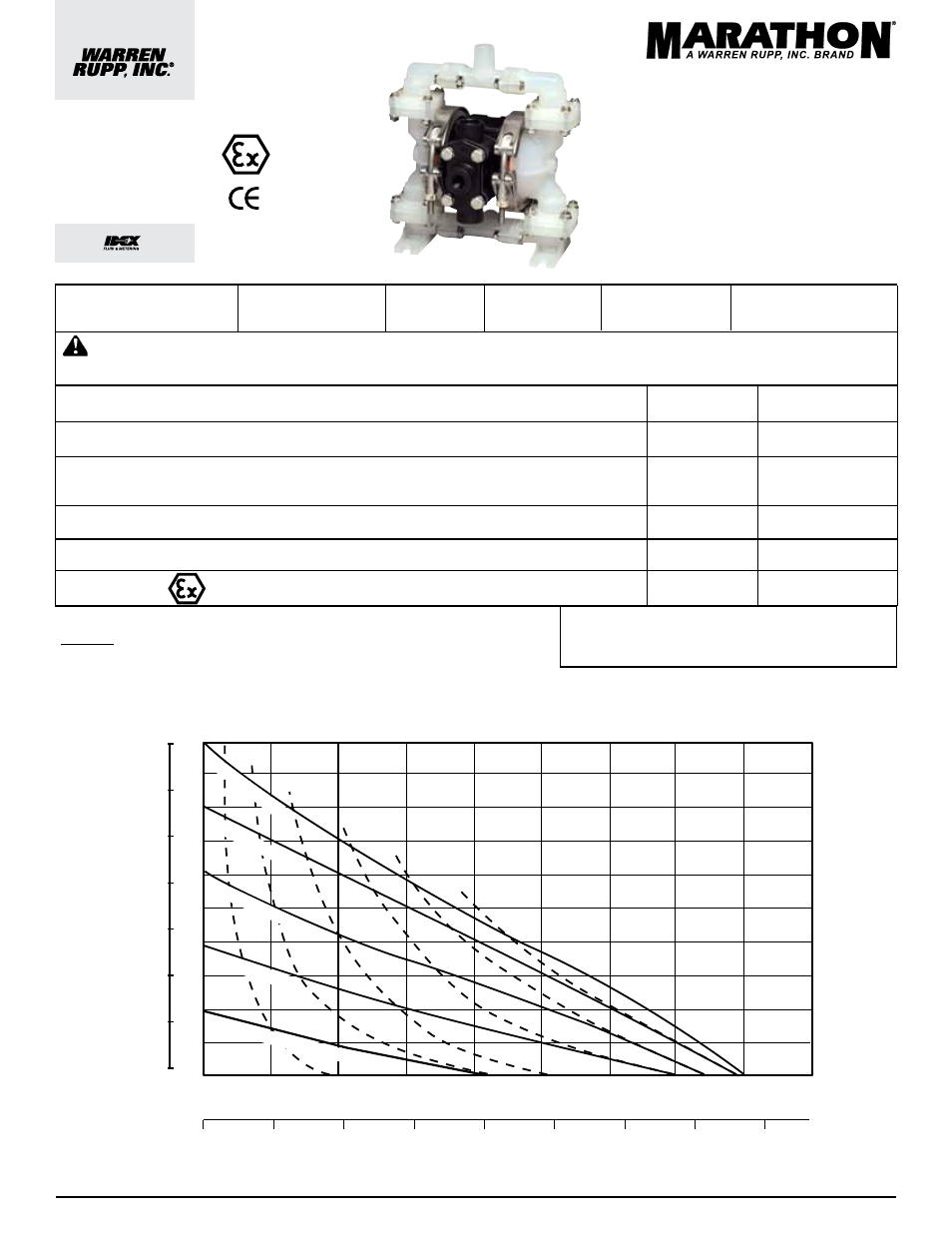

Model MPB¼
Type 3
Air-Operated
Double Diaphragm Pump
Engineering, Performance
& Construction Data
Quality System
ISO9001 Certified
Environmental
Management System
ISO14001 Certified
INTAKE/DISCHARGE PIPE SIZE
¼" NPT (internal)
½" NPT (external)
CAPACITY
0 to 4 gallons per minute
(0 to 15 liters per minute)
AIR VALVE
No-lube, no-stall
design
SOLIDS-HANDLING
Up to 1 /
32
" (1mm)
HEADS UP TO
100 psi or 231 ft. of water
(7 bar or 70 meters)
DISPLACEMENT/STROKE
.01 US Gallons / .04 liters
100
90
80
70
60
50
40
30
20
10
0 .5 1.0 2.5 3.0 3.5 4.0 4.5 1.5 2.0
1
2
3
4
5
6
7
0
0 2 4 6 8 10 12 14 16
0
1(1.7)
2(3.4)
3(5.1)
4(6.8)
5(8.5)
6(10.2)
CAPACITY
Liters per minute
U.S. Gallons per minute
BAR PSI
HEAD
100 PSI (6.8 Bar)
80 PSI (5.44 Bar)
60 PSI (4.08 Bar)
40 PSI (2.72 Bar)
20 PSI (1.36 Bar)
Air Inlet Pressure
AIR CONSUMPTION SCFM (M3/hr)
MODEL PB¼-A Performance Curve
Performance based on the following: elastomer fitted pump, flooded suction, water at ambient conditions.
The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%.
(MARATHON ® pumps are designed to be powered only by compressed air)
See page 2
for ATEX ratings. See pages 2, 13 and 14
for ATEX ratings.
Materials
Maximum
Operating Temperatures
Minimum
Santoprene ® Injection molded thermoplastic elastomer with no fabric layer. Long mechanical flex life.
Excellent abrasion resistance.
Hytrel
® : Good on acids, bases, amines and glycols at room temperatures only.
Polypropylene
PVDF
Virgin PTFE Chemically inert, virtually impervious. Very few chemicals are known to react chemically
with PTFE: molten alkali metals, turbulent liquid or gaseous fluorine and a few fluoro-chemicals such
as chlorine trifluoride or oxygen difluoride which readily liberate free fluorine at elevated temperatures.
Conductive Acetal
275 °F
135°C
-40 °F
-40°C
220 °F
104°C
220 °F
104°C
250 °F
121°C
180 °F
82°C
190 °F
88°C
-35 °F
-37°C
-20 °F
-29°C
0 °F
-18°C
CAUTION! Operating temperature limitations are as follows:
-20 °F
-29°C
32°F
0°C
II 2GD T5
CAUTION: Nonmetallic pumps and plastic components are not UV stabilized. Ultraviolet
radiation can damage these parts and negatively affect material properties. Do not expose
to UV light for extended periods of time.
Maximum and Minimum Temperatures are the limits for which these
materials can be operated. Temperatures coupled with pressure affect the
longevity of diaphragm pump components. Maximum life should not be
expected at the extreme limits of the temperature ranges.
For specific applications, always consult the Warren Rupp “Chemical Resistance Chart”
