SANDPIPER T20 - Manual (Page 5)

t20mdl1sm-rev0614
sandpiperpump
.
com Model T20 Metallic •
2
Performance
T20 METALLIC
SUCTION/DISCHARGE PORT SIZE
• 2 1/2" Sanitary Clamp
CAPACITY
• 0 to 150 gallons per minute
(0 to 567 liters per minute)
AIR DISTRIBUTION VALVE
• No-lube, no-stall design
SOLIDS-HANDLING
• Up to .25 in. (6mm)
HEADS UP TO
• 125 psi or 289 ft. of water
(8.6 Kg/cm 2 or 86 meters)
DISPLACEMENT/STROKE
• .42 Gallon / .1.59 liter
MAXIMUM OPERATING PRESSURE
• 125 psi (8.6 bar)
SHIPPING WEIGHT
• Stainless Steel 114 lbs. (52kg)
Materials
CAUTION! Operating temperature limitations are as follows:
0 20 40 60 80 100 120 140 160
20 (34)
40 (68)
60 (102)
80 (136)
100 (170)

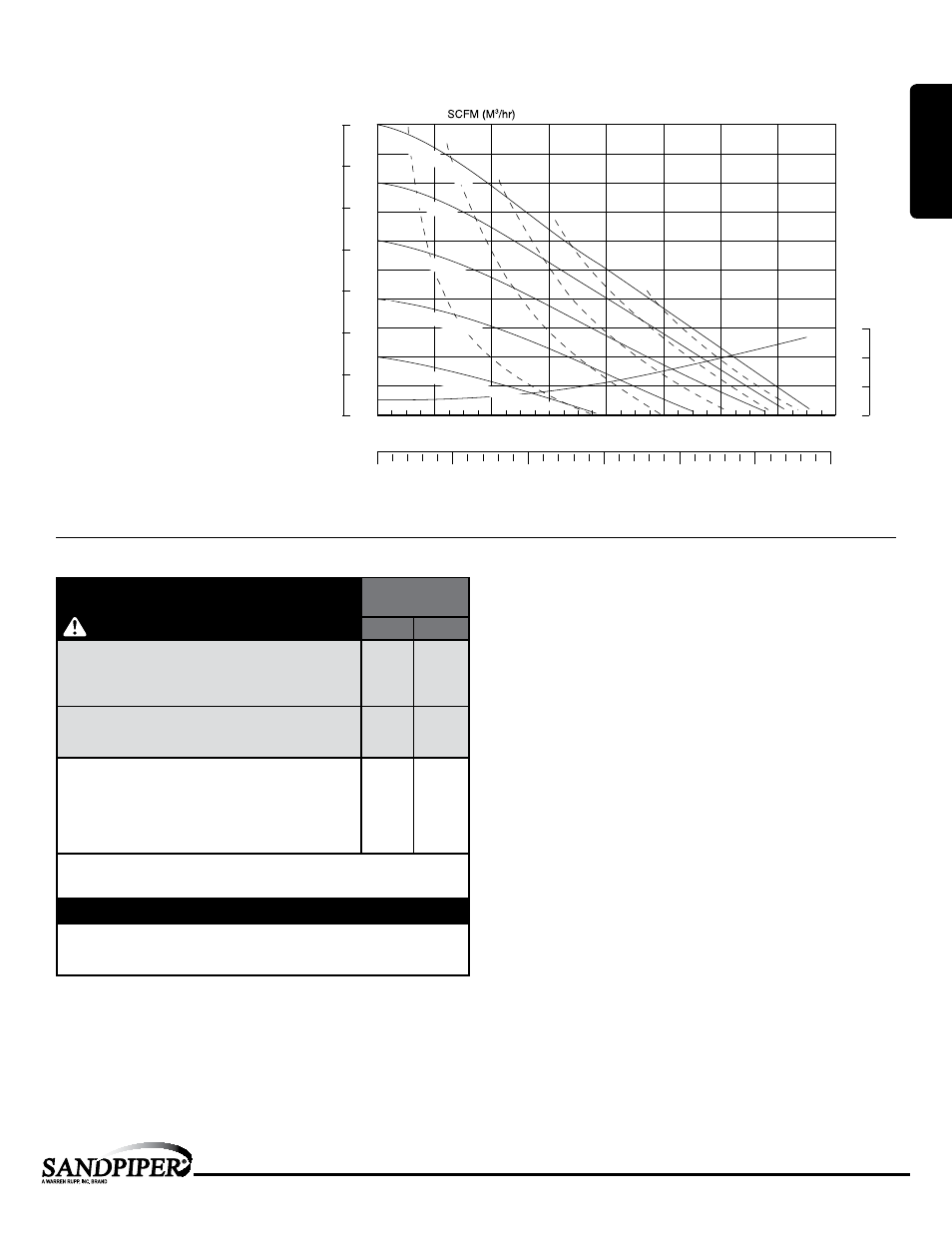

600 500 400 300 200 100
CAPACITY
U.S. Gallons per minute
Liters per minute
100
90
80
70
60
50
40
30
20
10
0
BAR PSI
HEAD
1
2
3
4
5
6
7
0
30
20
25
10
15
5
9.1
6
7.6
3
4.5
1.5
NPSHR
METERS FEET 40 PSI (2.72 Bar)
20 PSI (1.36 Bar
)
Air Inlet Pressur
e
60 PSI (4.08 Bar)
80 PSI
(5.44 Bar)
100 PSI
(6.8 Bar)
Performance based on the following: elastomer fitted pump, flooded suction, water at ambient conditions.
The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%.
Material Profile: Operating
Temperatures:
Max. Min.
Nitrile: General purpose, oil-resistant. Shows good solvent, oil,
water and hydraulic fluid resistance. Should not be used with
highly polar solvents like acetone and MEK, ozone, chlorinated
hydrocarbons and nitro hydrocarbons.
190°F
88°C
-10°F
-23°C
Santoprene®: Injection molded thermoplastic elastomer with
no fabric layer. Long mechanical flex life. Excellent abrasion
resistance.
275°F
135°C
-40°F
-40°C
Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious.
Very few chemicals are known to chemically react with PTFE;
molten alkali metals, turbulent liquid or gaseous fluorine and
a few fluoro-chemicals such as chlorine trifluoride or oxygen
difluoride which readily liberate free fluorine at elevated
temperatures.
220°F
104°C
-35°F
-37°C
Maximum and Minimum Temperatures are the limits for which these materials can be operated.
Temperatures coupled with pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of the temperature ranges.
Metals:
Stainless Steel: Equal to or exceeding ASTM specification A743 CF-8M for corrosion
resistant iron chromium, iron chromium nickel and nickel based alloy castings for
general applications. Commonly referred to as 316 Stainless Steel in the pump industry.
For specific applications, always consult the Chemical Resistance Chart.
CAUTION! Operating temperature limitations are as follows:
MODEL SPECIFIC UNIVERSAL ALL AODD
1: PUMP
SPECS
