com Model T1F Metallic •
2
Performance
T1F METALLIC
SUCTION/DISCHARGE PORT SIZE
• 1 1/2" Sanitary Clamp Ports
CAPACITY
• 0 to 45 gallons per minute
(0 to 170 liters per minute)
AIR DISTRIBUTION VALVE
• No-lube, no-stall design
SOLIDS-HANDLING
• Up to .25 in. (6mm)
HEADS UP TO
• 125 psi or 289 ft. of water
(8.6 Kg/cm 2 or 86 meters)
DISPLACEMENT/STROKE
• .11 Gallon / .42 liter
MAXIMUM OPERATING PRESSURE
• 125 psi (8.6 bar)
SHIPPING WEIGHT
• Stainless Steel 43 lbs. (20kg)
Materials
Material Profile: Operating
Temperatures:
Max. Min.
Nitrile: General purpose, oil-resistant. Shows good solvent, oil,
water and hydraulic fluid resistance. Should not be used with
highly polar solvents like acetone and MEK, ozone, chlorinated
hydrocarbons and nitro hydrocarbons.
190°F
88°C
-10°F
-23°C
Santoprene®: Injection molded thermoplastic elastomer with
no fabric layer. Long mechanical flex life. Excellent abrasion
resistance.
275°F
135°C
-40°F
-40°C
Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious.
Very few chemicals are known to chemically react with PTFE;
molten alkali metals, turbulent liquid or gaseous fluorine and
a few fluoro-chemicals such as chlorine trifluoride or oxygen
difluoride which readily liberate free fluorine at elevated
temperatures.
220°F
104°C
-35°F
-37°C
Maximum and Minimum Temperatures are the limits for which these materials can be operated.
Temperatures coupled with pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of the temperature ranges.
Metals:
Stainless Steel: Equal to or exceeding ASTM specification A743 CF-8M for corrosion
resistant iron chromium, iron chromium nickel and nickel based alloy castings for
general applications. Commonly referred to as 316 Stainless Steel in the pump industry.
For specific applications, always consult the Chemical Resistance Chart.
CAUTION! Operating temperature limitations are as follows:

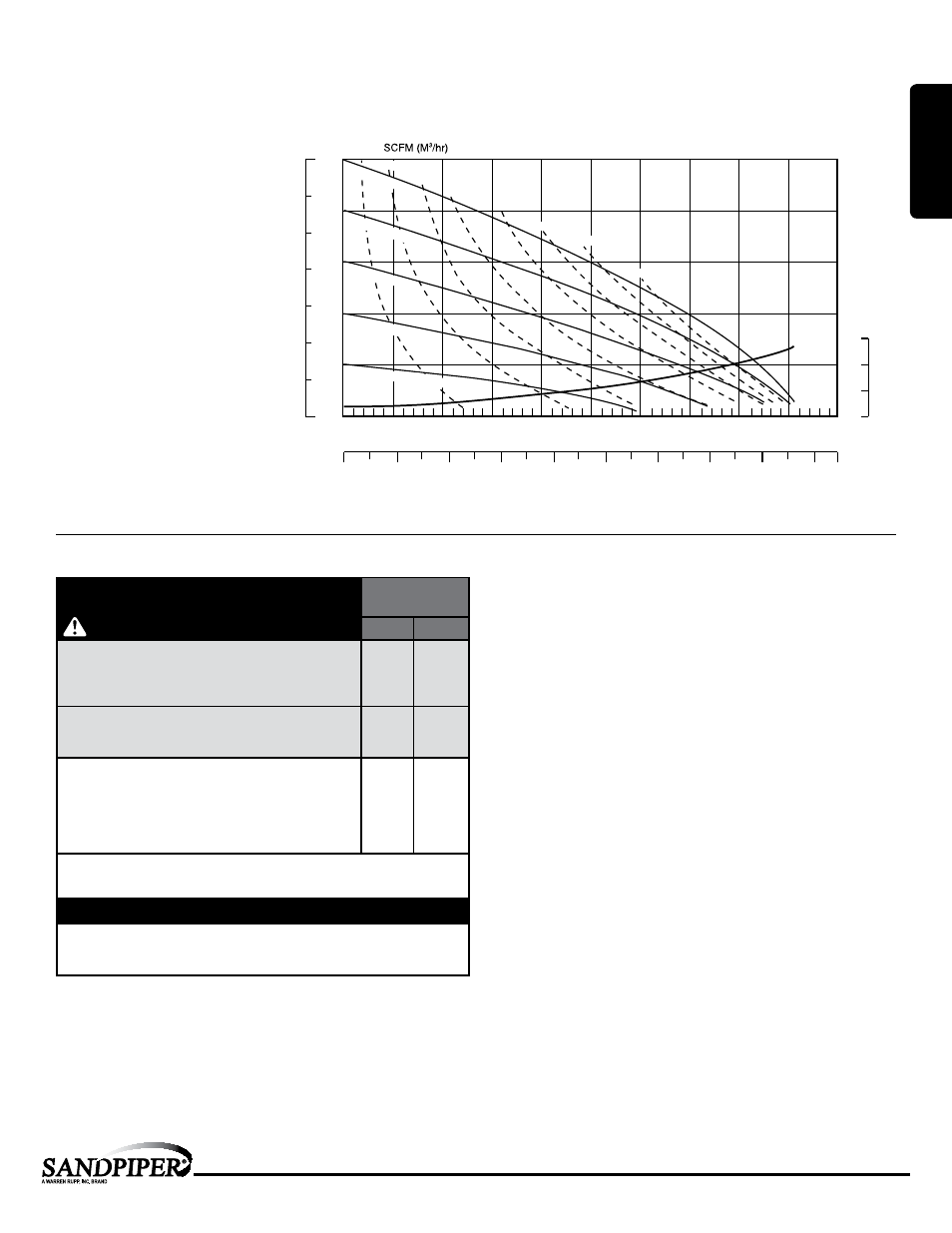

CAPACITY
Liters per minute
HEAD
5(8.5)
15(25.5)
20(34)
U.S. Gallons per minute
25(42.5)
0 5 10 15 20 25 30 35 40 45
160 140 180 120 100 80 60 40 20 0
BAR PSI
100
80
60
40
20
0 0
1
2
3
4
5
6
7
30
20
25
10
15
5
9.1
6
7.6
3
4.5
1.5
NPSHR
ME
TERS
FEE
T
50
100 PSI (6.8 Bar)
60 PSI (4.08 Bar)
20 PSI (1.36 Bar)
Air Inlet Pressure
40 PSI (2.72 Bar)
80 PSI (5.44 Bar)
10(17)
30(51)
35(59.5)
40(68)
Performance based on the following: elastomer fitted pump, flooded suction, water at ambient conditions.
The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%.
1: PUMP
SPECS
