Metric dimensions: s05 conductive acetal – SANDPIPER S05 Non-Metallic User Manual
Page 7
s05conductiveacetal-rev0211
Model S05 Conductive Acetal Design Level 2 Page 5
Bolt Pattern Is
Symmetrical About
Centerlines
*Both Suction And Discharge
Ports Are Available In 1/2" BSP
Tapered (Internal) 1" Tapered (External)
* Suction Port
1/2" NPT (Internal)
1" NPT (External)
Integral Muffler:
3/8" NPT Exhaust Port
For Metal Muffler or Piping
Exhaust Air In Submerged
Applications.
* Discharge Port
1/2" NPT (Internal)
1" NPT (External)
44mm
Manifold Can Rotate ± 90°
From Vertical Centerline.
Air Inlet 1/4" NPT

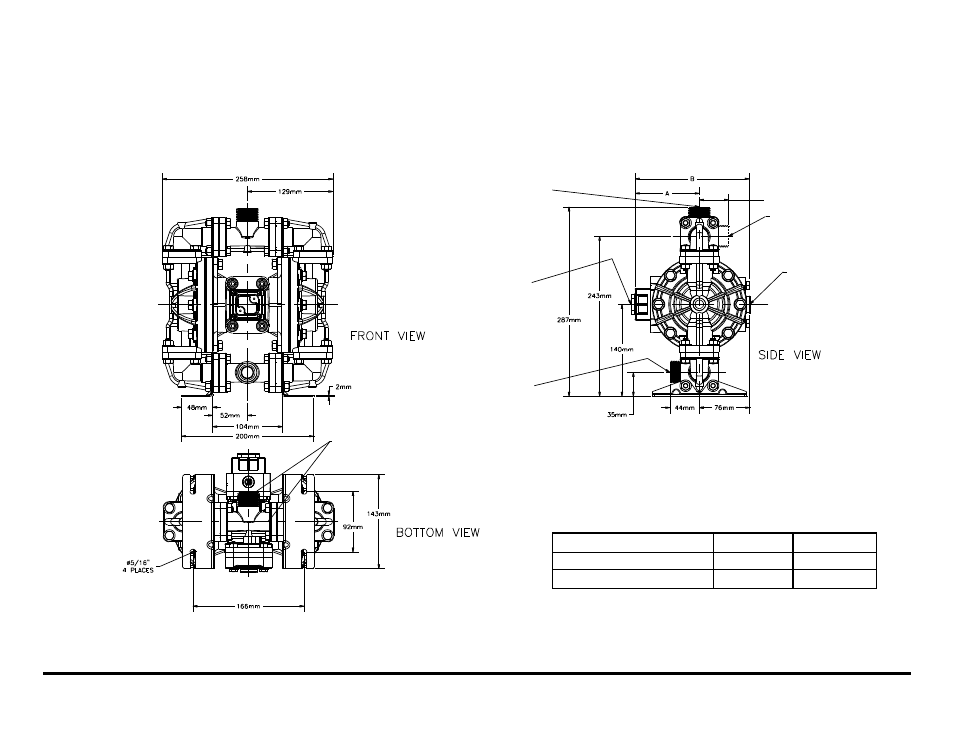

Metric Dimensions: S05 Conductive Acetal
Dimensions in millimeters
Dimensional tolerance: ±3mm
DIMENSION
A
B
Integral Muffler
103mm
179mm
Metal Muffler
130mm
206mm
