SANDPIPER S07 - Manual (Page 3)

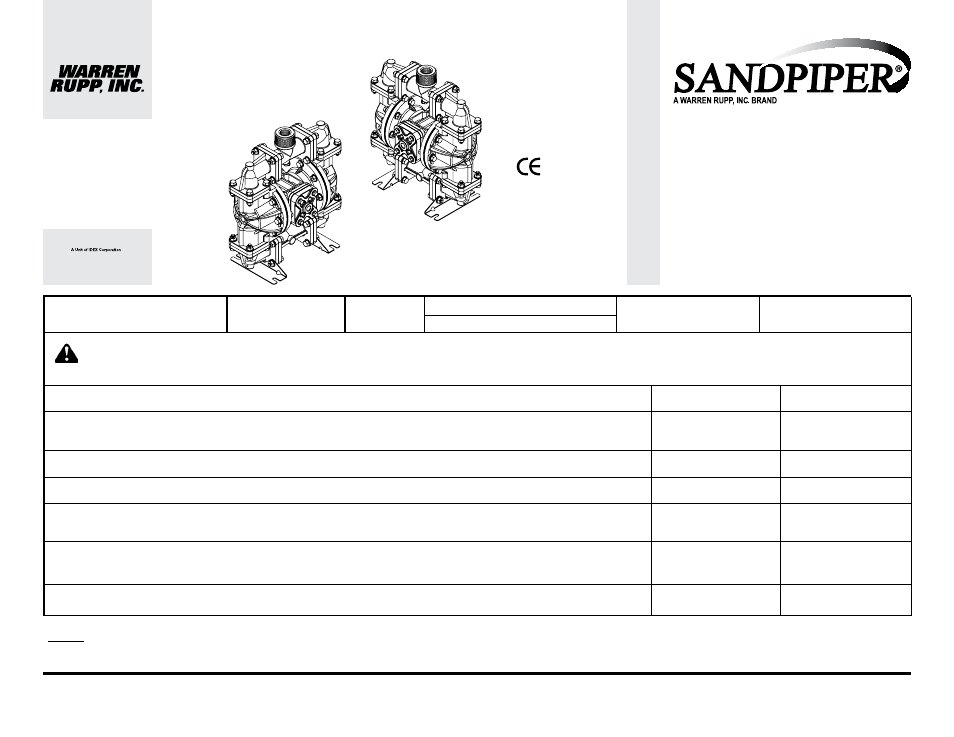

s07nmdl1sm-rev0614 Models S07 Non-Metallic Page 1
Santoprene ® : Injection molded thermoplastic elastomer with no fabric layer. Long mechanical flex life. Excellent abrasion 275°F -40°F
resistance. 135°C -40°C
Virgin PTFE: Chemically inert, virtually impervious. Very few chemicals are known to react chemically with PTFE: molten alkali metals,
turbulent liquid or gaseous fluorine and a few fluoro-chemicals such as chlorine trifluoride or oxygen difluoride which readily 220°F -35°F
liberate free fluorine at elevated temperatures. 104°C -37°C
PVDF: 250°F 0°F
121°C -18°C
Polypropylene: 180°F 32°F
82°C 0°C
Nitrile: General purpose, oil-resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not be used 190°F -10°F
with highly polar solvents like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons. 88°C -23°C
FKM (Fluorocarbon): Shows good resistance to a wide range of oils and solvents; especially all aliphatic, aromatic and halogenated 350°F -40°F
hydrocarbons, acids, animal and vegetable oils. Hot water or hot aqueous solutions (over 70°F) will attack FKM. 177°C -40°C
U.S. Patent #
5,851,109; 5,996,627;
400,210; 6,241,487
Other U.S. Patents
Applied for
Materials
Maximum Minimum
Operating Temperatures
For specific applications, always consult the Warren Rupp “Chemical Resistance Chart”
SANDPIPER ® pumps are designed to be powered only by compressed air.
INTAKE/DISCHARGE PIPE SIZE CAPACITY
0 to 23 US gallons per minute
(0 to 87 liters per minute)
AIR VALVE
No-lube, no-stall
design
HEADS UP TO
100 psi or 231 ft. of water
(7 bar or 70 meters)
DISPLACEMENT/STROKE
.026 US gallon / .098 liter
CAUTION! Operating temperature limitations are as follows:
Internal Threads ¾" NPT or ¾" BSP Tapered
External Threads 1½" NPT or 1½” BSP Tapered
Nylon:
180°F
82°C
32°F
0°C
Quality System
ISO9001 Certified
Environmental
Management System
ISO 14001 Certified
S07
Non-Metallic
Ball Valve
Design Level 1
Air Operated
Double Diaphragm Pump
ENGINEERING, PERFORMANCE
& CONSTRUCTION DATA
SOLIDS-HANDLING
Ball Valve S07B Models - Up to .15 in.(4mm)
Trihedral Valve S07T Models - Up tp .36in
(9.1mm) Diameter or .16in 2 area (10.3cm 2 )
CAUTION: Nonmetallic pumps and plastic components are not UV stabilized. Ultraviolet radiation can damage these parts and negatively affect material properties.
Do not expose to UV light for extended periods of time.
