• Model S20 Metallic

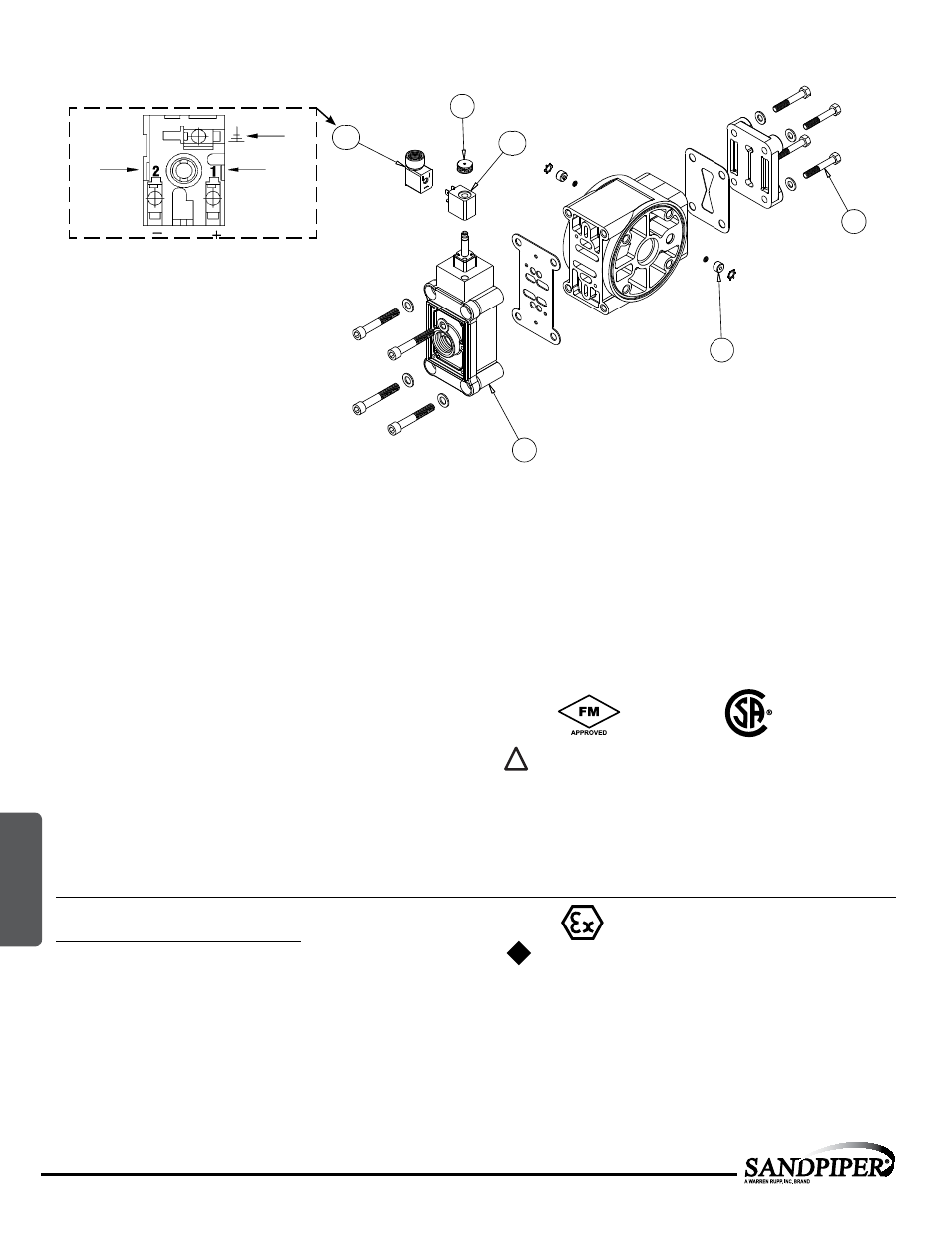

Solenoid Shifted Air Valve
43
41
42
41
45
44
#2 Terminal
Neutral
(Negative)
#1 Terminal
Power
(Positive)
3rd Terminal
for ground
Wiring
Diagram
Solenoid Shifted Air Valve Parts List
(Includes all items used on Composite Repair Parts List
except as shown)
Item Part Number Description Qty
41 893-097-000 Solenoid Valve, NEMA4 1
42 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
43 241-001-000 Connector, conduit 1
241-003-000 Conduit Connector with 1
Suppression Diode (DC Only)
44 170-029-330 Capscrew, Hex HD 5/16-18 x 1.5 4
45 618-051-150 Plug 2
*Special Conditions For Safe Use
A fuse corresponding to its rated current (max. 3*I
rat
according IEC 60127-2-1) or a
motor protecting switch with short-circuit and thermal instantaneous tripping (set to rated
current) shall be connected in series to each solenoid as short circuit protection. For
very low rated currents of the solenoid the fuse of lowest current value according to
the indicated IEC standard will be sufficient. The fuse may be accommodated in the
associated supply unit or shall be separately arranged. The rated voltage to the fuse
shall be equal to or greater than the stated rated voltage of the magnet coil. The
breakage capacity of the fuse-link shall be as high as or higher than the maximum
expected short circuit current at the location of the installation (usually 1500 A). A
maximum permissible ripple of 20% is valid for all magnets of direct-current design.
IEC EEX m T4
For Explosion Proof Solenoid Coils used in North America and
outside the European Union.
42 219-009-001 Solenoid Coil, 120VAC 60 H
z
1
219-009-002 Solenoid Coil, 240VAC 60 H
z
1
219-009-003 Solenoid Coil, 12VDC 1
219-009-004 Solenoid Coil, 24VDC 1
219-009-005 Solenoid Coil, 110VAC 50 H
z
1
219-009-006 Solenoid Coil, 230VAC 50 H
z
1
Note: Item 43 (Conduit Connector) is not required
II 2G EEx m c T5
II 2D c IP65 T100°C
For ATEX Compliant Solenoid Coils used in the European Union
219-011-001 Solenoid Coil, Single mounting
12 VDC, 3.3W / 267mA 1
219-011-002 Solenoid Coil, Single mounting
24 VDC, 3.3W / 136mA 1
219-011-003 Solenoid Coil, Single mounting
110/120 VAC, 3.4W / 29mA 1
219-011-004 Solenoid Coil, Single mounting
220/240 VAC, 3.4W / 15mA 1
Note: Item 35 (Conduit Connector) is not required
*
II 2G EE
x m c
II T5
II 3/2 G E
x m c
II T5
II 2D
c
IP65 T100°c
Compressed Air Temperature Range: Maximum Ambient
Temperature to plus 50°C
Solenoid Shifted Operation
The Solenoid Shifted SANDPIPER has a solenoid operated, air distribution
valve in place of the standard SANDPIPER’s pilot operated, air distribution
valve. Where a pilot valve is normally utilized to cycle the pump’s air distribution
valve, an electric solenoid is utilized. As the solenoid is powered, one of the
pump’s air chambers is pressurized while the other chamber is exhausted. When
electric power is turned off, the solenoid shifts and the pressurized chamber
is exhausted while the other chamber is pressurized. By alternately applying
and removing power to the solenoid, the pump cycles much like a standard
SANDPIPER pump, with one exception. This option provides a way to precisely
control and monitor pump speed.
Before Installation
Before wiring the solenoid, make certain it is compatible with your system
voltage.
