SANDPIPER S1F Metallic User Manual
Page 21
s1fmdl1sm-rev0614
sandpiperpump
.
com
Model S1F Metallic •
18
450 in.lbs. for
Overlay diaphragms
350 in.lbs. for PTE
and elastomer diaphragms

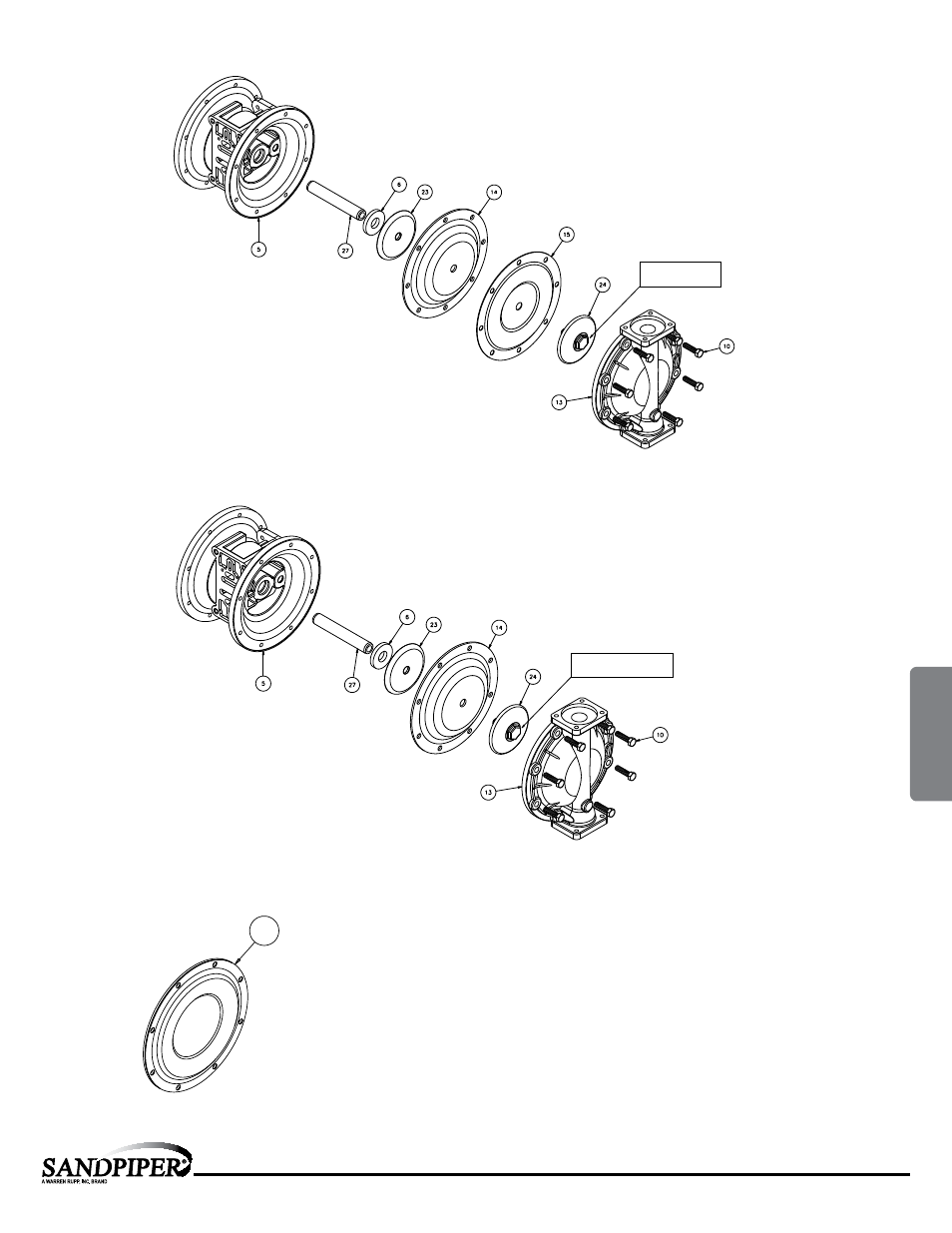

Diaphragm Service Drawing, Non-Overlay
Diaphragm Service Drawing, with Overlay
One-Piece Bonded
*Diaphragm Service Drawing
14
*Available For Field Conversion From Overlay
To One-Piece Bonded Diaphragm Kits:
Kit:
475.250.000
2
286.112.000
One-Piece Diaphragm
2
612.218.330
Inner Plates
5: WET END
