7

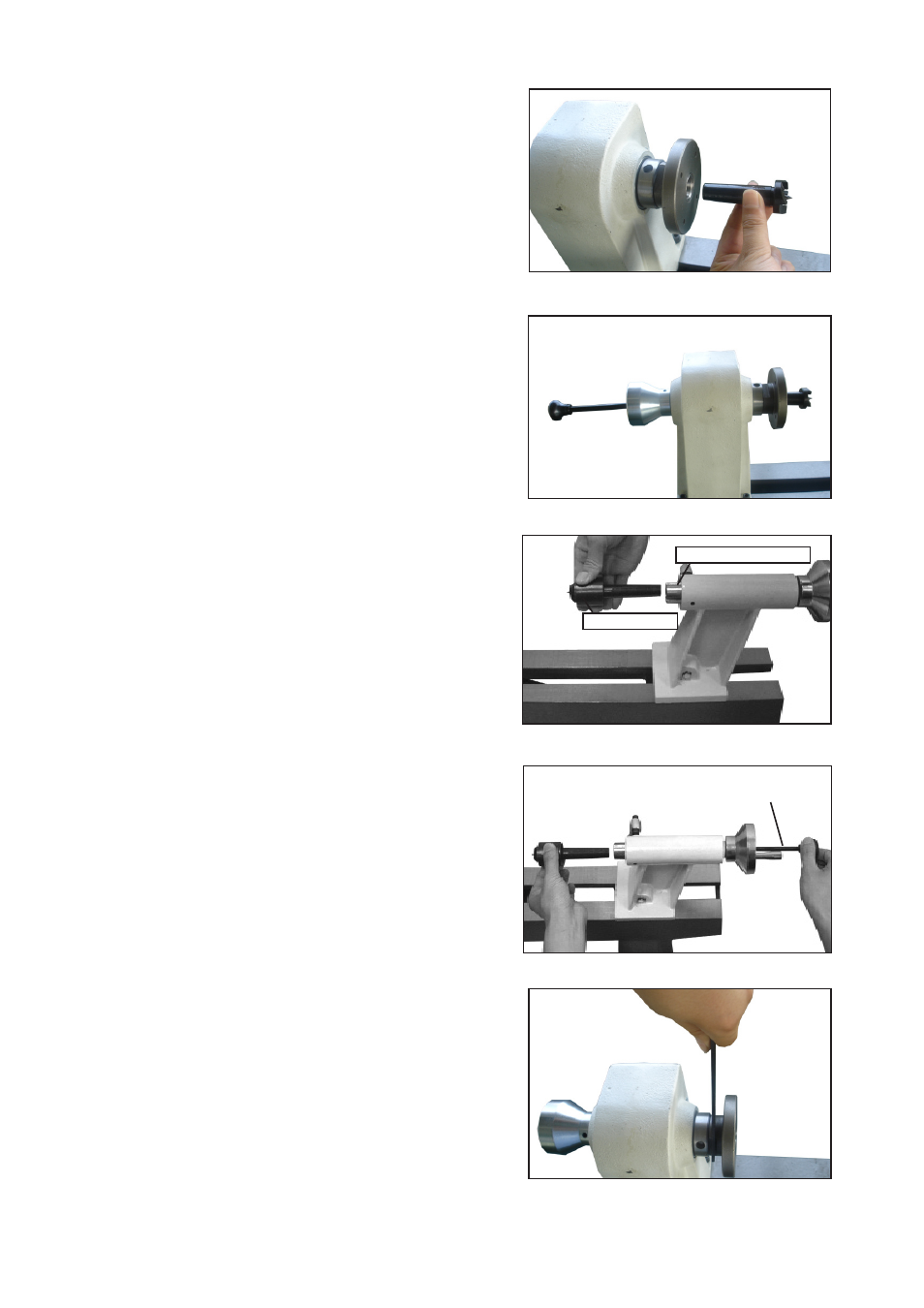

Fig.04
Attaching Live Center On the Tailstock
Insert the live center, with a No. 2 Morse Taper
shank into the tailstock spindle. (See Fig.04)
Live center
Tailstock spindle
To remove live center from the tailstock spindle,
loosen locking arm and rotate the hand wheel
counter clockwise to retract spindle into the body
of the tailstock. The live center will be pushed out
of the spindle.
(See Fig.05)
Knockout bar
Fig.05
Attaching Spur Center On the Head-
stock
Insert spur center, with a No.2 Morse Tapper
shank, into the headstock spindle. (See Fig.02)
Fig.02
Fig.03
Knockout Bar
The knockout bar is used to remove the spur
center from the headstock spindle. Insert knock-
out bar into hole at opposite side from spur cent-
er. (See Fig.04)
Fig.06
Installing the Faceplate to the Head-
stock
Thread the faceplate clockwise on to the head-
stock spindle. Tighten faceplate with supplied
wrench. (See Fig.06)
