RIKON Power Tools 23-400H - Manual (Page 19)

41 42 43 44 45 46 47 48 49 50 51 52
P23-400-41 P23-400-42 P23-400-43 P23-400-44 P23-400-45 P23-400-46 P23-400-47 P23-400-48 P23-400-49 P23-400-50 P23-400-51 P23-400-52
Flat Washer 10 Hex Bolt M10x25 Flat Washer 6 Screw M6x12 Hex Nut M8 Hex Bolt M8x12 Spring Screw Retaining Ring Wave Washer 52 Bearing 6205 Set Screw M6x12

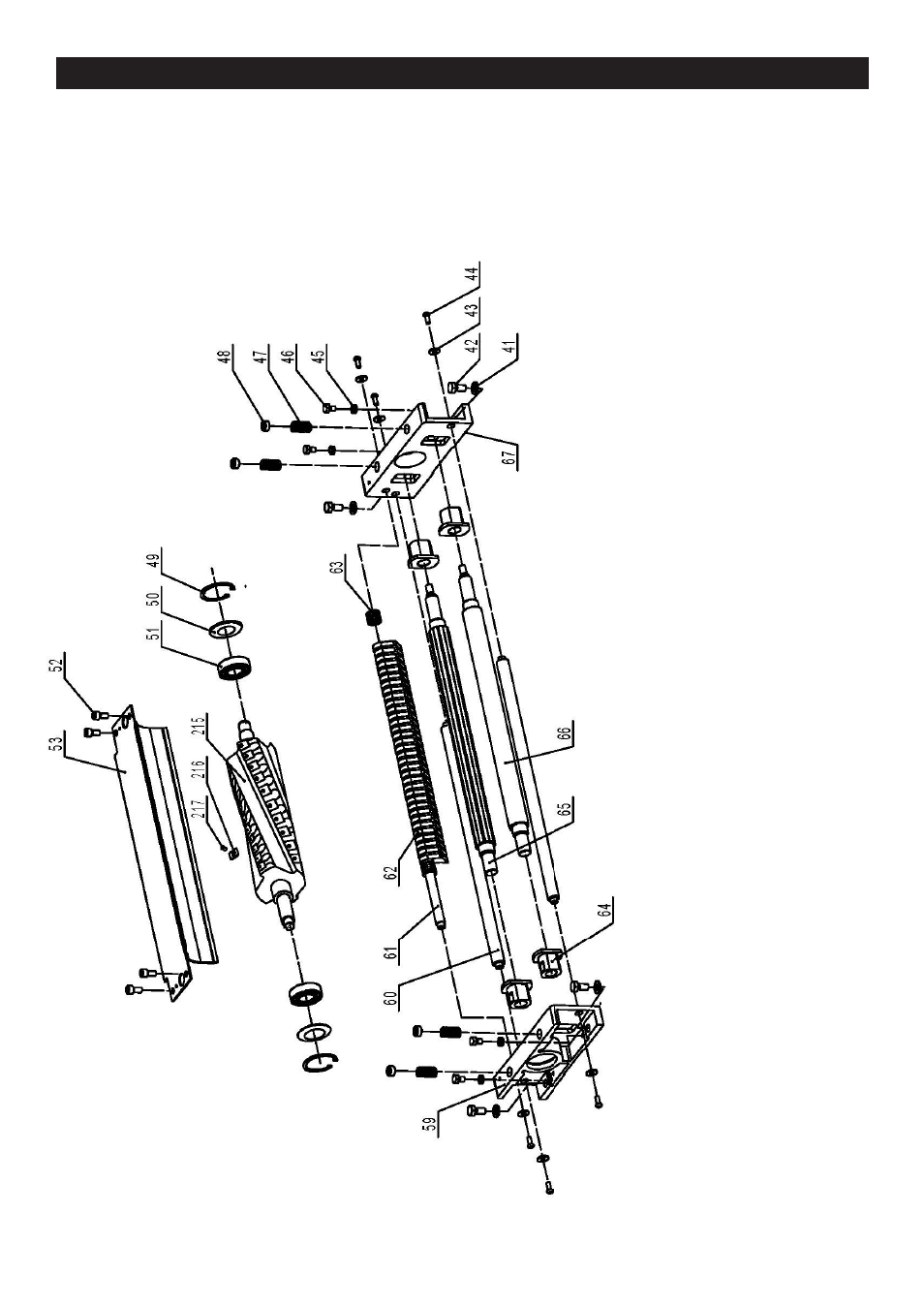

PARTS DIAGRAM & PARTS LIST
CUTTERHEAD ASSEMBLY
19
KEY
NO.
MFG. P
ART NO.
MFG. P
ART NO.
DESCRIPTION
DESCRIPTION
KEY
NO.
53 59 60 61 62 63 64 65 66 67 215 216 217
Cutterhead Cover Cutterhead Bracket - left Support Rod Anti-Kickback Shaft Anti-Kickback Finger Adjusting Washer Tube Infeed Roller Outfeed Roller Cutterhead Bracket - right Helical Cutter Shaft Knife Insert Screw
P23-400-53 P23-400-59 P23-400-60 P23-400-61 P23-400-62 P23-400-63 P23-400-64 P23-400-65 P23-400-66 P23-400-67 P23-400H-215 P23-400H-216 P23-400H-217
