8
Electrical
Extension Cords for 120 Volts
Amp
Rating
Length
Minimum Wire
Gauge
6A
<25ft 18 AWG
25ft-50ft 16 AWG
50ft-100ft 16 AWG
100ft-150ft 14 AWG
6A-10A
<25ft 18 AWG
25ft-50ft 16 AWG
50ft-100ft 14 AWG
100ft-150ft 12 AWG
10A-12A
<25ft 16 AWG
25ft-50ft 16 AWG
50ft-100ft 14 AWG
100ft-150ft 12 AWG
12A-16A
<25ft 14 AWG
25ft-50ft 12 AWG
Extensions cords longer than are 50ft
not recommended
Electrical
This bandsaw is designed to operate on 110v. It is
your responsibility to ensure that the bandsaw is
electrically connected in a safe and correct manner.
Any electrical work should be performed by a compe-
tent electrician and installed in a way that meets all
applicable electrical codes and regulations.
A dedicated electrical circuit should be used and
wiring must be able to carry full voltage ±10% to the
bandsaw. The recommended circuit should applica-
ble for a 3/4hp 5A motor with a fuse or circuit breaker
and wired accordingly.
This saw is supplied with a safety on/off key switch.
The key can be removed to “lock out” unauthorized
personnel like children from accidentally starting the
bandsaw. Please make use of this feature.
Grounding Instructions
This unit must operate using a completely grounded
electrical line. The plug must be plugged into an out-
let that is properly installed and grounded according
to all electrical codes. If you do not know if the electri-
cal circuit is grounded, contact an authorized and
qualified electrician and have it inspected/replaced.
This product uses a 110v cord with a 3 prong plug.
Make sure that the product is connected to an outlet
having the same configuration as the plug. No
adapter should be used to operate this bandsaw.
Extension Cords
The use of any extension cord will cause some drop
in voltage and loss of power. For optimum perform-
ance plug the power cord directly into a grounded
outlet of the proper voltage and amp rating. If the use
of an extension cord cannot be avoided make sure
the cord is in good condition and has a ground wire.
The gauge should be sufficient to carry the voltage
and amp load at the distance required. The smaller
the gauge number the heavier the cord. Only use
extension cords with a 3rd wire grounding pin that
match the corresponding 3-conductor receptacle.
Never cut the grounding pin off a plug. If the plug
does not fit, do not cut the end or modify the electri-
cal outlet. Shown left is a standard 3 prong 110v
electrical receptacle and GFI receptacle.
Do not wash, clean, sanitize or operate the bandsaw
in wet conditions while it is plugged in at any time.
Incorrectly wired buildings or buildings with poor elec-
trical service can result in premature motor failure
and is not covered by the warranty. Failure to con-
nect the bandsaw correctly to the electrical service
may result in serious personal injury, damage to the
bandsaw and/or building site.
Overloaded circuits are dangerous and can present
an electrical and/or fire hazard causing serious injury.
Grounding Pin
WARNING
!
Use this table as a guideline only. You must fol-
low all electrical codes and safety procedures for
your area in the use of extension cords.

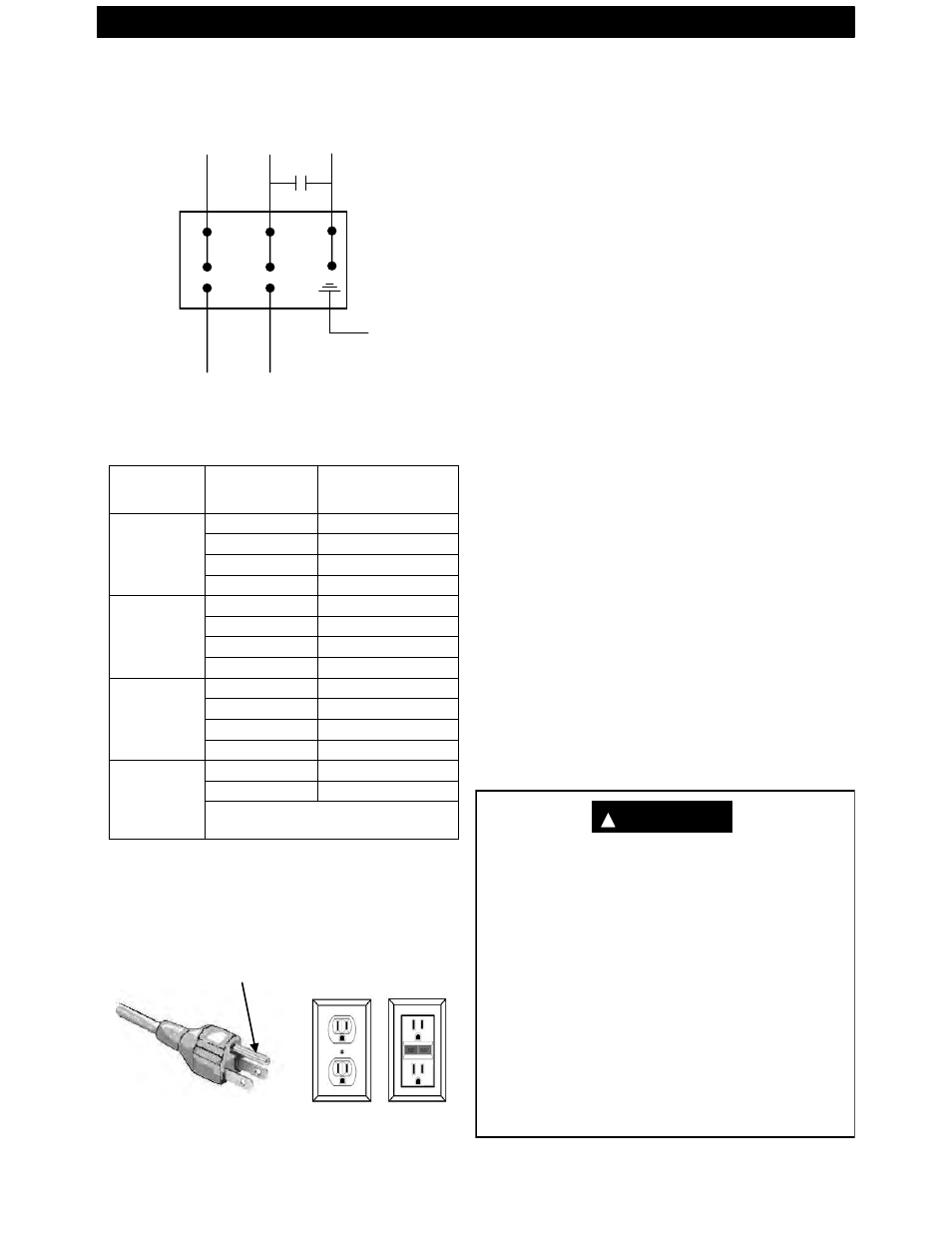

Motor Connection
red blue white
Motor
Power in 110v
Green
ground
