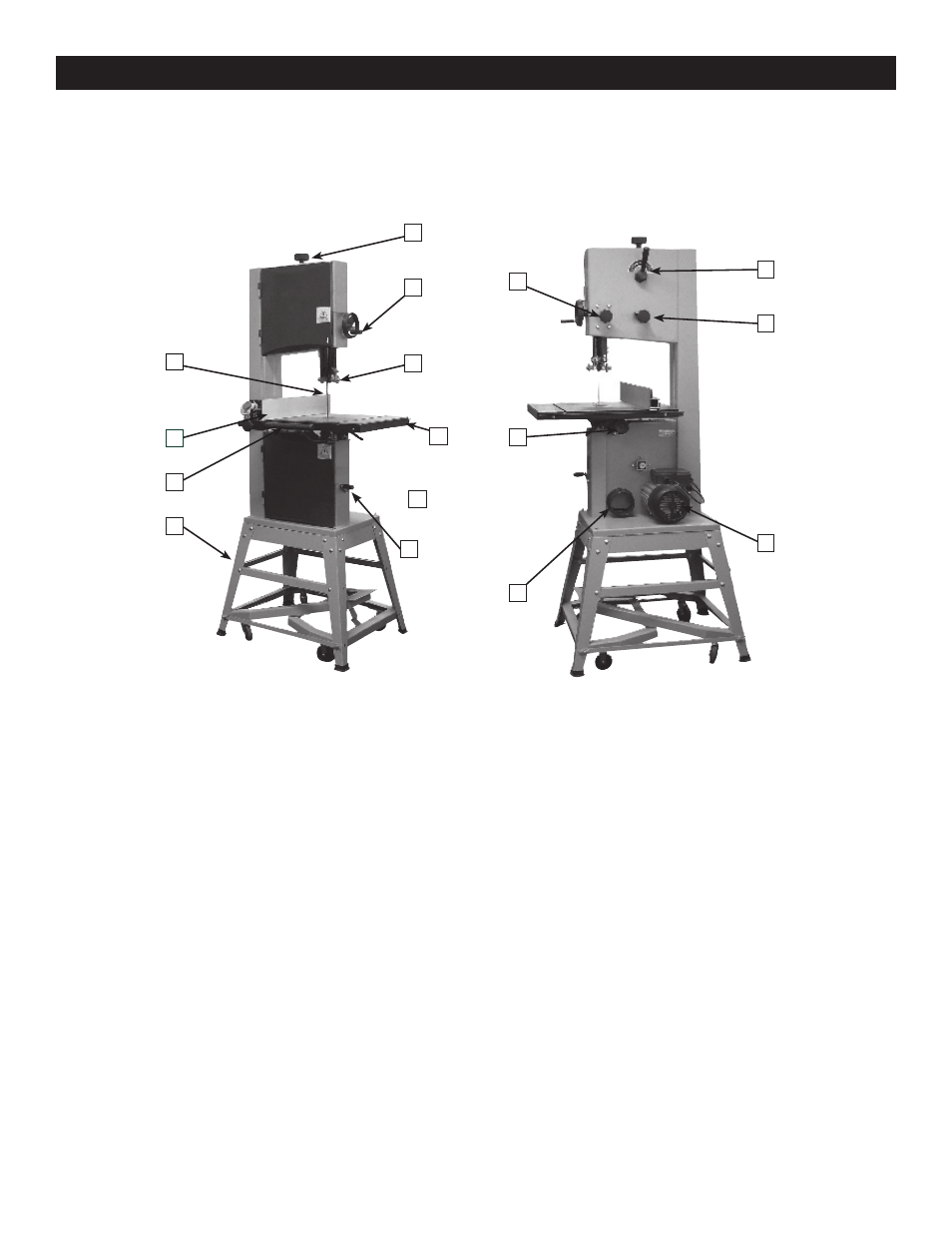

Getting to Know Your Bandsaw
A Blade Tensioning Knob
B Rise & Fall Hand Wheel
C Blade
D Upper Blade Guide
E Table
F Rip Fence
G Rip Fence Rail
H Table Tilt Lock Handle
I Stand (Model#10-315 doesn’t include wheel kit)
J Belt Tension & Speed Change Handle
K Blade Tension Release Cam Handle
L Rise & Fall Lock Knob
M Blade Tracking Knob
N Table Tilting Knob
P 4” Dust Extraction Port
