Rhino Shelter SM ROLL-UP DOOR KIT User Manual
Roll up door kit

Roll Up Door Kit
Instruction Manual
www.mdmshelters.com

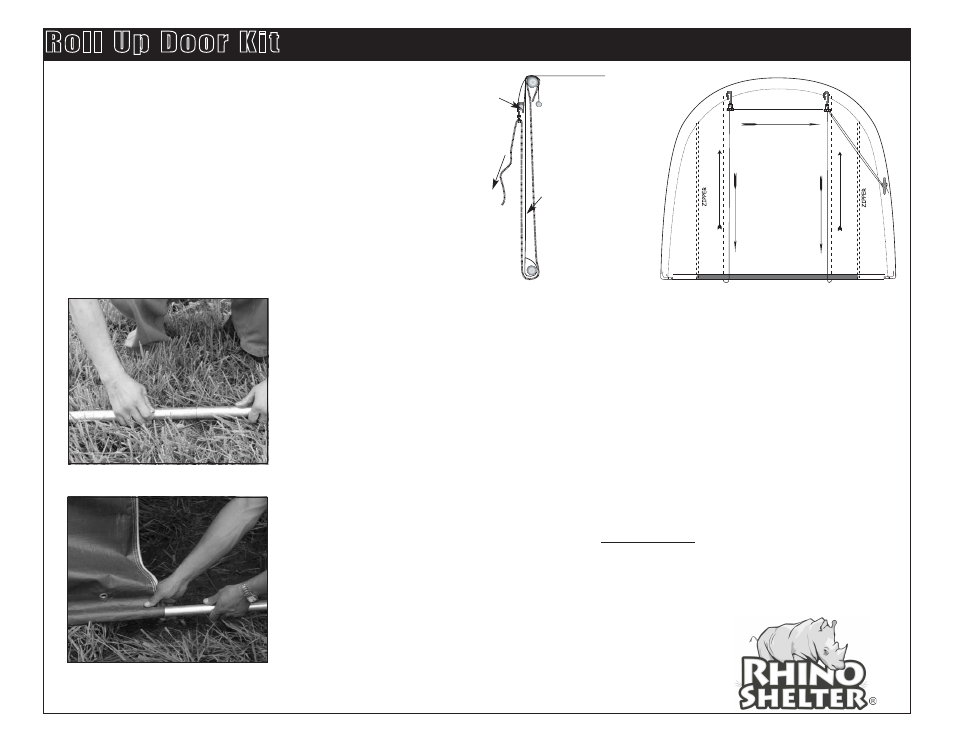

PREPARE AND INSTALL DOOR BASE POCKET TUBING
There are two pipes provided for each Roll Up Door. Insert swedged end of one
into the female end of the second pipe. Secure with self-tapping screw provided.
Fill pipe with sand and secure with a Black plastic insert on each end. Insert
weighted tubing assembly into Pocket along Bottom edge of Roll Up Door.
ATTACHING PULLEYS TO MAIN COVER
The two (2) pulleys should be installed on the outside edge of the Main Cover,
with the clips of the pulley hung over the welded-in rope. The Pulleys should be
attached 6-12” inside the zippers evenly along welded-in rope. Measure into the
center of the unit from each zipper to locate pulleys properly. Using a razor knife,
cut a vertical ½” slot over the rope channel.
STOP YOUR DOOR IN ANY POSITION
EASY ENTRY AND CLOSING OF FABRIC DOORS
ALL PARTS ARE WEATHER RESISTANT
ROLL UP DOOR KIT WORKS ON EITHER END OF SHELTER
Roll Up Door Kit includes:
2 Pulleys
1 Roll of Rope
2 Black Plugs
1 Cleat
2 Screws
2 Telescoping Tubing for Door Pocket
READ DIRECTION COMPLETELY BEFORE BEGINNING
Main Cover
End Arch Tubing Member
Welded Rope on Main Cover
Pulley Assembly for
Outside Door Roll Up
Pull Down to Open Door
Door Fabric
Weighted
Tubing in
Door Base
