Assembly Instructions House Style 12 x 20 x 8
V2.2
Do NOT Return Assembly To Dealer or Store. For All Assembly Questions or Shortages Please Call MDM Products Directly
Customer Service 800-447-7079 or 203-877-7070
5

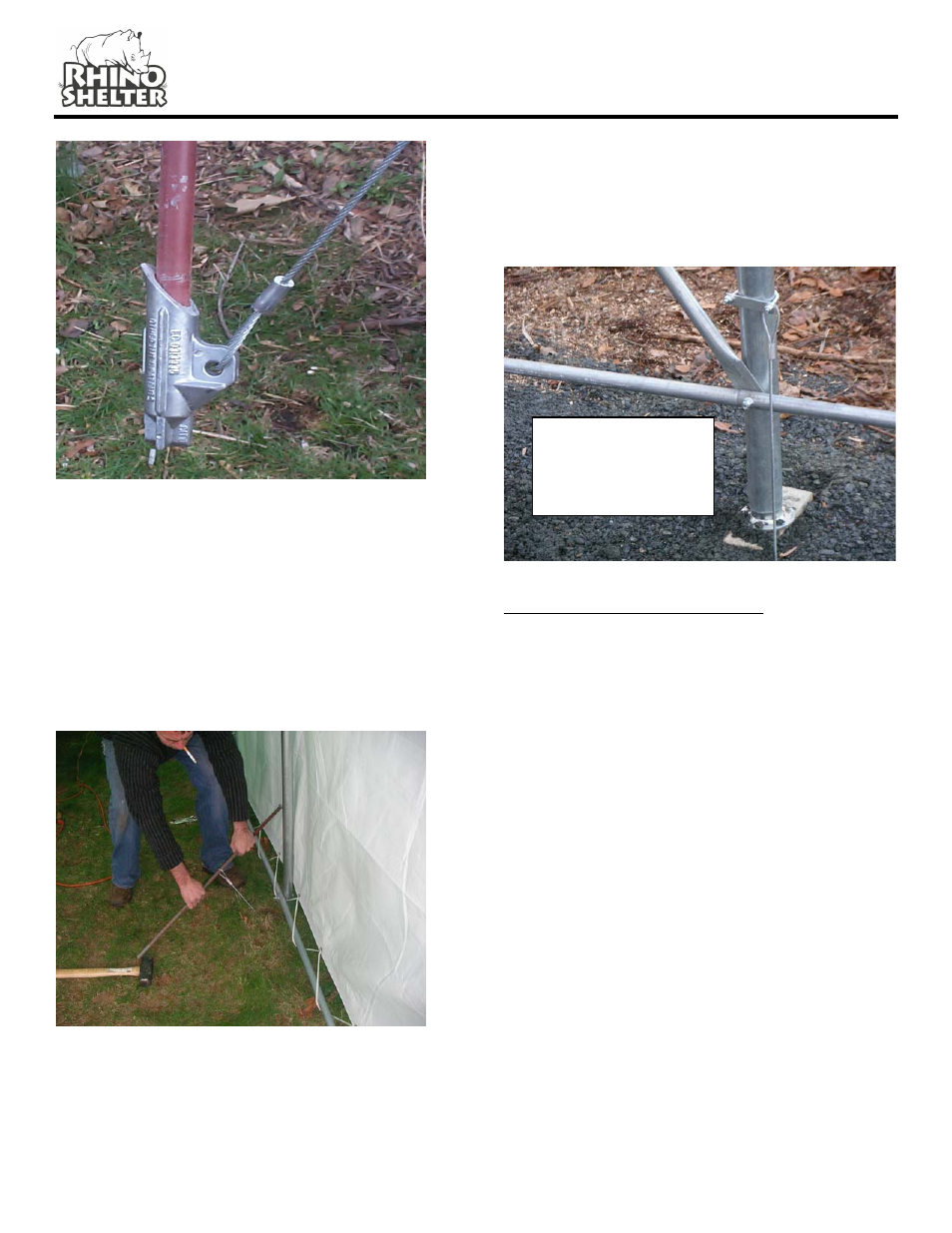

Drive Rod inserts into Anchor Head
ANCHOR STEP 1
Step 1. Place the drive rod provided into the cup of the
anchor. Using a heavy hammer drive the anchor into the
soil until 6-8 inches of cable remains above the earth.
Remove drive rod.
ANCHOR STEP 2
Place the Drive Rod through the loop in the anchor
lanyard. Pull upward to set anchor head into the ground.
ANCHOR STEP 3
Slip one side of the U-bolt through the eyelet at the end
of the anchor cable. Attach the cable to the Arch leg
upright with the U-bolt and tighten. Do not attach to base
cross rails. Ensure there is no slack in the cable. Slack
can be removed by wrapping the cable around the tie-
down rail.
Pull U-Bolt &
Anchor Loop up on
Arch Base and
Tighten
END DOOR PANEL INSTALLATION
Note: Both End Panels MUST be installed before
installing Main Cover onto frame.
Step1. Remove Carriage bolts from the Top Crest Rail
and the two Upper Cross Rails. Install one End Panel
Door w/Zippers (DZD-5002) at a time to the Frame
assembly.
Step 2. Place the end panel over the first arch and wrap
the material around the arch bringing the slits in the end
panel to the inside of the frame arch. Place the top ridge
pole and the side cross rails through the material slits
and replace the carriage bolts and tighten. The door end
will also require removal of the wind brace bolts and
placement of the wind braces through slits in the ends
panel. Reconnect wind braces with carriage bolts once
end panel is put into place.
