7-6 Connecting the System
10
LED Indicator
8. Explanation Operations
During operation, the LED indicator on
the body of the wind generator can
be used to check the operating status
of the system.
The indicator LED can light in solid or
flashing red, green and orange (red and
green).
only when the turbine is first connected to the battery (with the capacitor
discharged) or at the moment the charged capacitor is short circuited by
the blade switch in the “Brake” position.
This manual is intended for individuals who have the knowledge and
technical skills needed to work with batteries and electrical wiring. If the
wind generator is used in an inappropriate configuration or wired
incorrectly, its use could cause a severe accident and damage the system,
including this product.
If you have any questions regarding the wind generator system
configuration, contact either the dealer where you purchased this product
or Nature Power Customer Service for more information.
You have to connect 4 x 12V batteries in series to get a 48V group. When
the 48V groups are connected in parallel the total capacity is the sum of all
individual 48V group capacities. Please see batteries sub-section for more
details.
CAUTION
12V
- +
+
-
Common
Brake
On
5
0
A
- +
- +
- +
Ground Rod
12V
- +
- +
- +
- +
DPDT
Blade
Switch
“SPG”
Single
Point of
Ground
+
-
To other 48V sources (solar panels,
Ac battery charges, additional wind
turbines, etc.)
and Loads(inverters, etc.)
Indoor
....
....
-
+ -
GND
Perimetral
Ground
48V Deep Cycle
AGM Battery Bank
Grounding
Jumper
Opt
iona
l
Wir
eles
s
Mon
itor
GND
GND

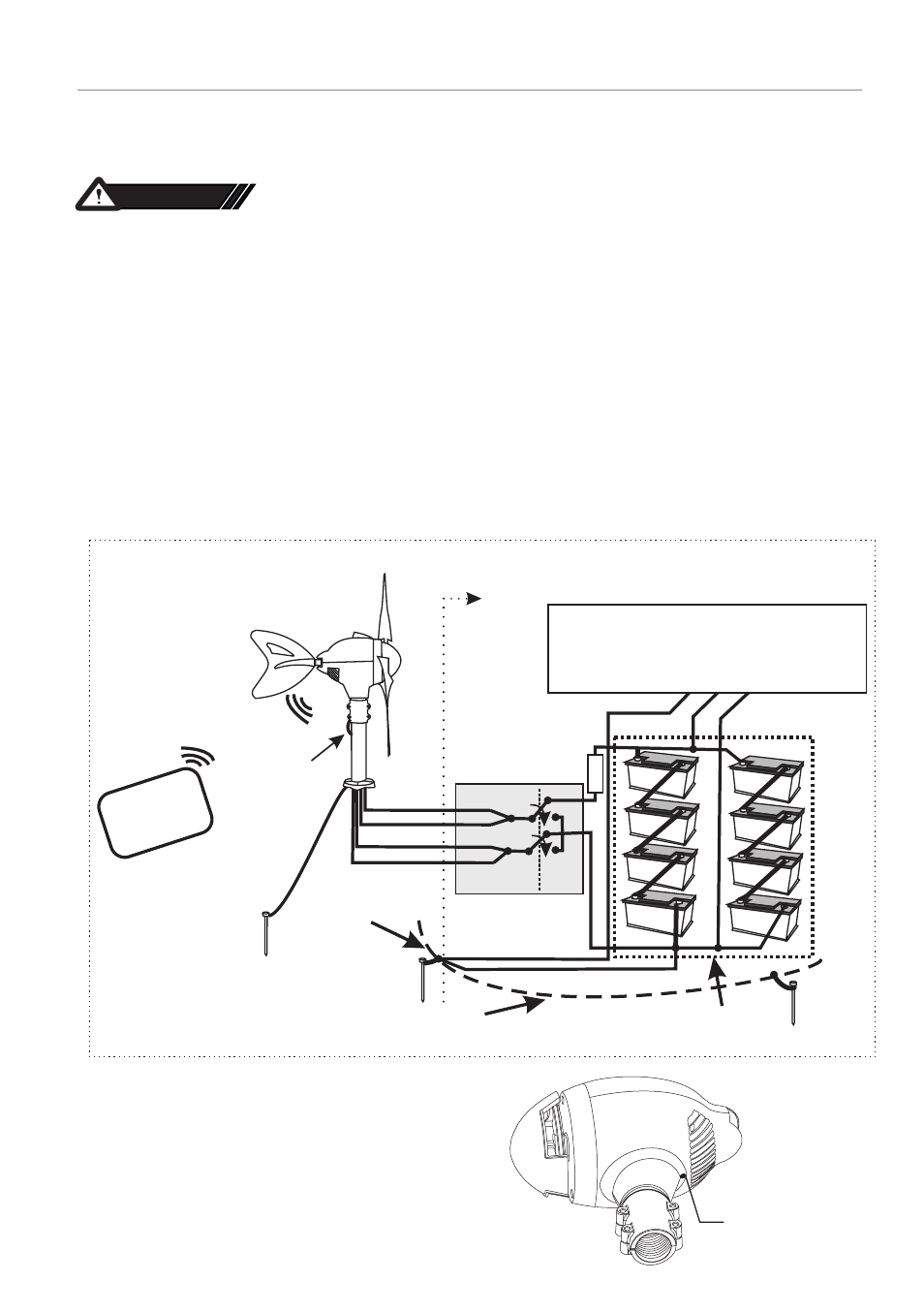

WIND TURBINE 48V-2000W-GENERAL WIRING DIAGRAM
12V
12V
12V
12V
12V
12V
