Pearl User Manual

Appendix A: Drawings & Diagrams 26

Pearl Camera Core

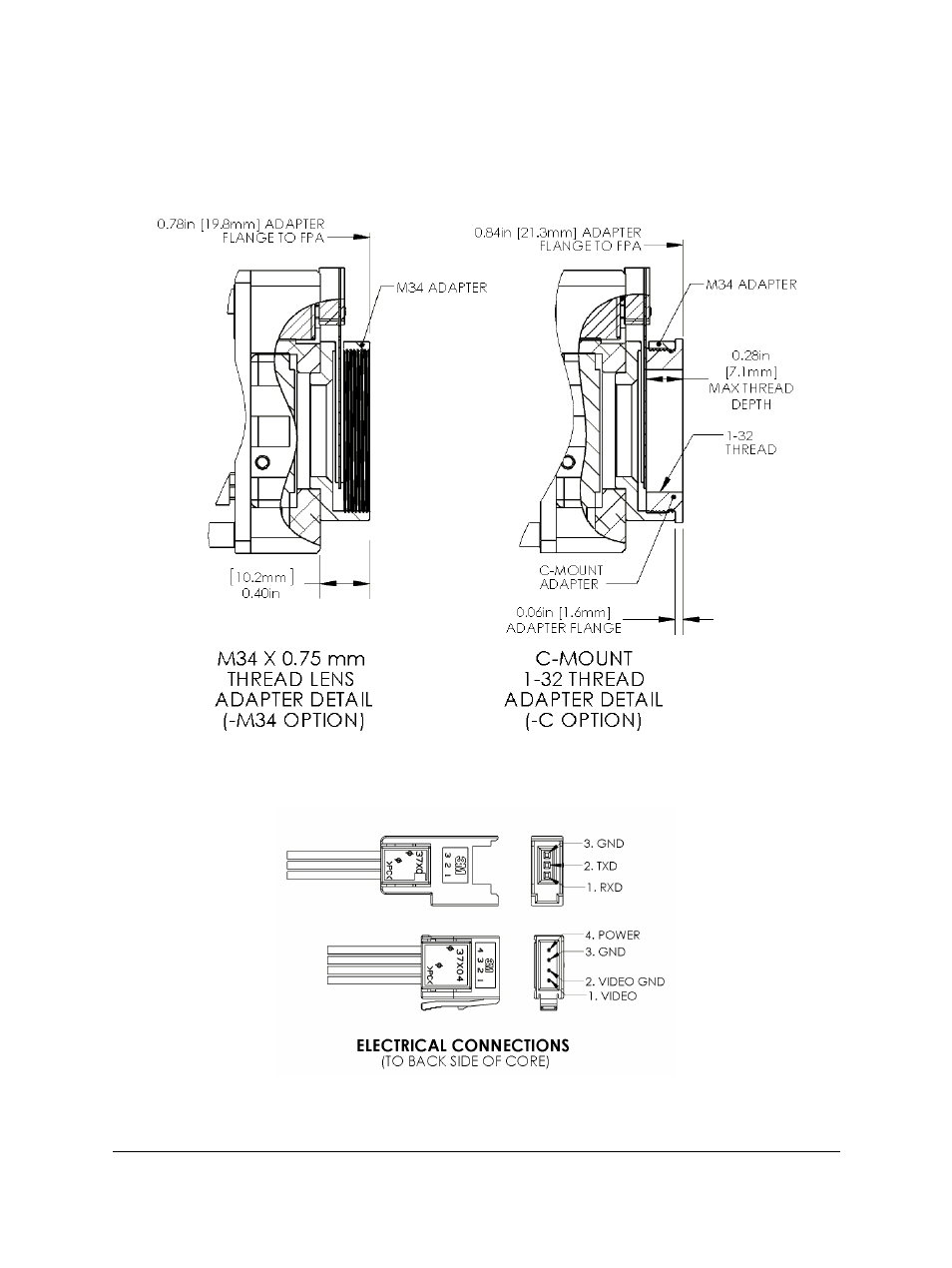

Pearl Camera Cores 137xxx, 337xxx, and 325xxx Lens Adapter and FPA

BWD Detail

Pearl Camera Cores Camera Core Electrical Connections
