Audiovox ACD-27 - Manual (Page 5)

128-6691
5 of 16
5 5 5 5 5
SPESPESPESPESPE
AAAAA
KKKKK

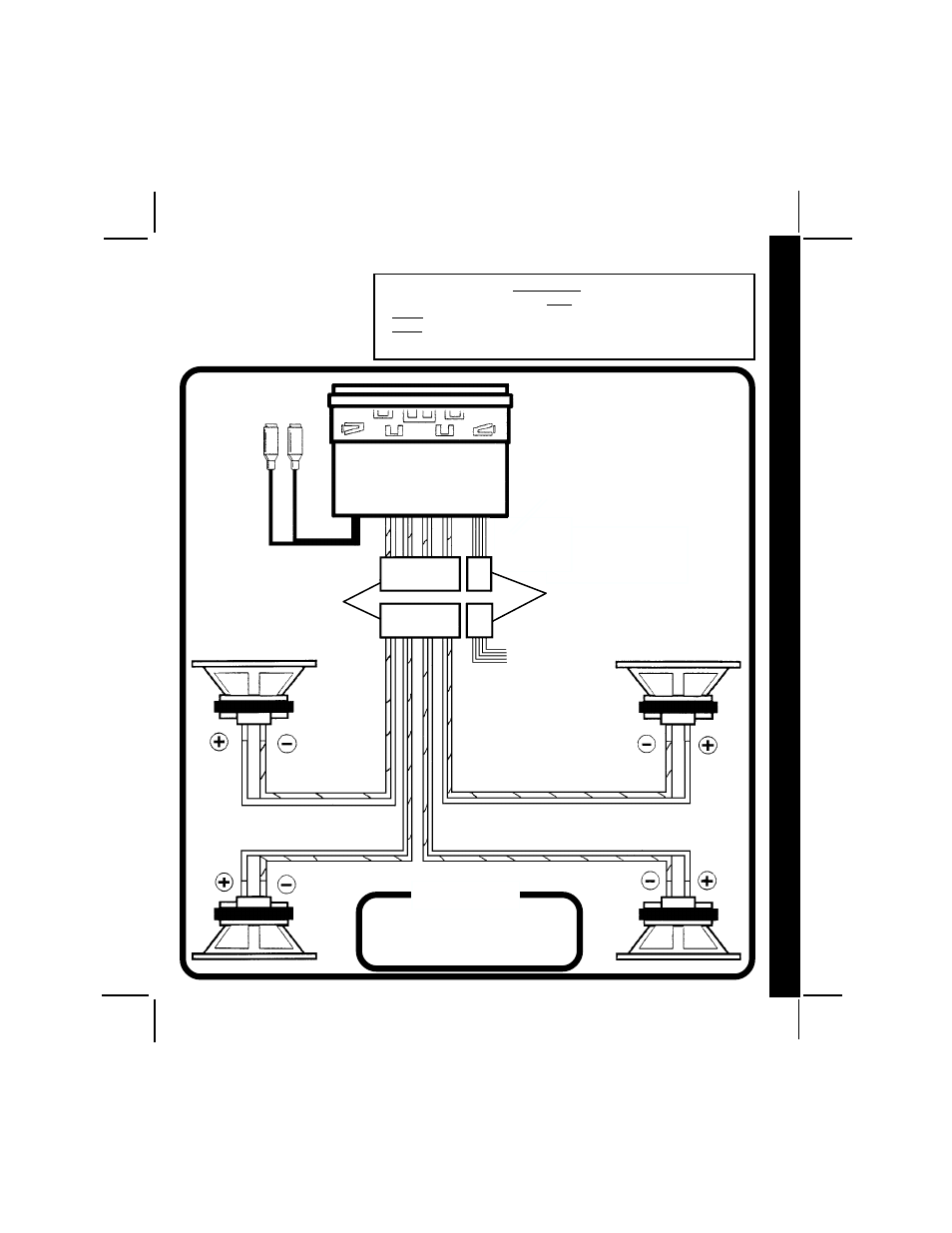

ER WIRINGER WIRINGER WIRINGER WIRINGER WIRING
SPE SPE SPE SPE SPEA A A A A K K K K K ER WIRING ER WIRING ER WIRING ER WIRING ER WIRING
REFER TO PAGE 4
FOR RADIO WIRING
WARNING!
! THE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS.
! NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.
! NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
! FAILURE TO WIRE EXACTLY AS SHOWN BELOW MAY CAUSE ELECTRICAL DAMAGE TO
THE RADIO.
RCA LINE OUT JACKS
FOR USE WITH OPTIONAL
EXTERNAL AMPLIFIERS
WHITE w/BLACK STRIPE
WHITE
LEFT FRONT SPEAKER RIGHT FRONT SPEAKER
LEFT REAR SPEAKER RIGHT REAR SPEAKER
GREEN
GRAY w/BLACK STRIPE
9-PIN PLUGS
GREEN w/BLACK STRIPE VIOLET w/BLACK STRIPE
RADIO
8:30am - 7:00pm Eastern
9:00am - 5:00pm Eastern Monday - Friday
Saturday
1-800-645-4994
HELP!
GRAY
VIOLET
4-PIN PLUGS
SEE PAGE 4 FOR
RADIO WIRING
RED=RIGHT REAR
WHITE=LEFT REAR
