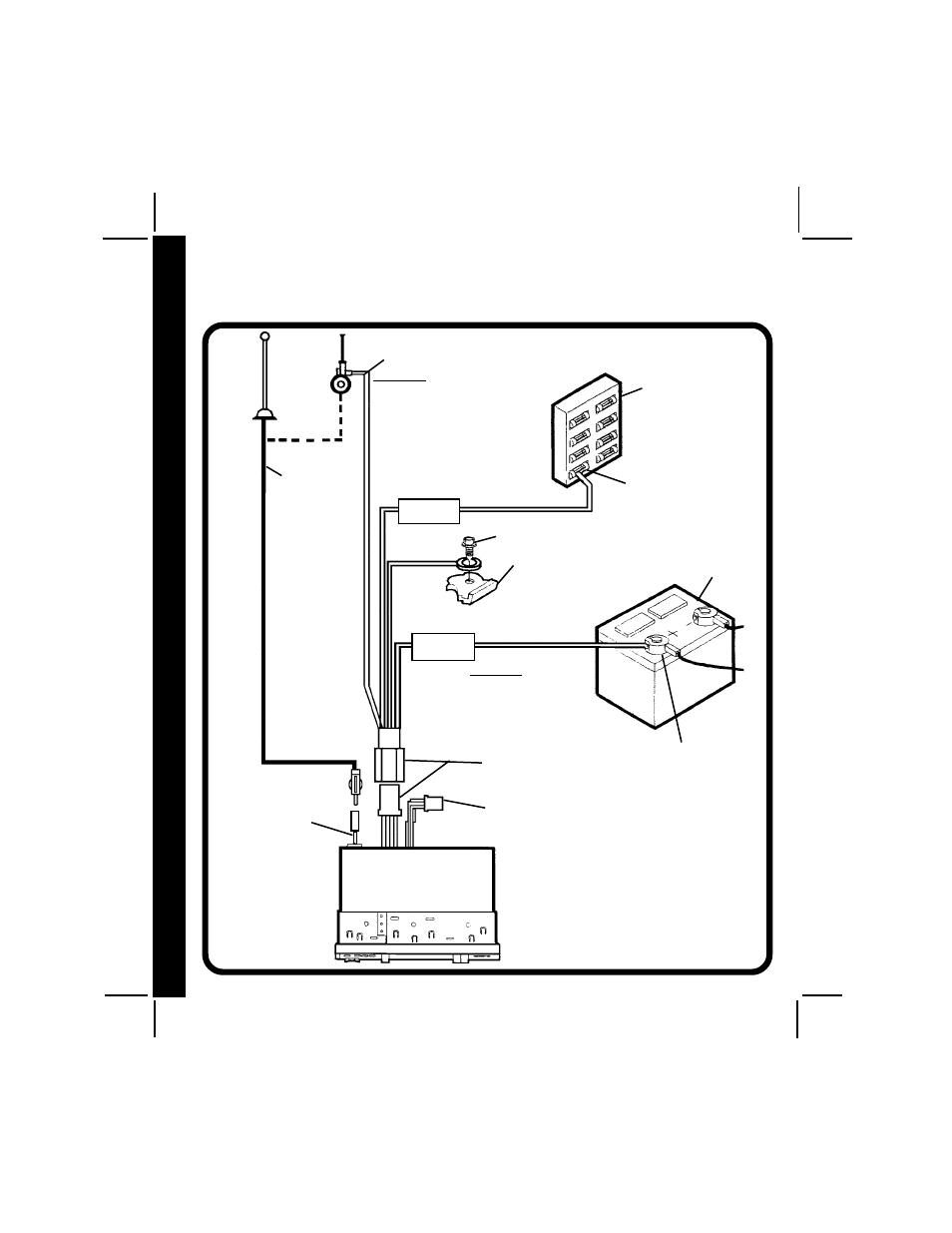

RADIO WIRING
R R R R R A A A A A DIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING
REFER TO PAGE 5 FOR SPEAKER WIRING
4 4 4 4 4
IMPORTANT
THE BLUE WIRE CAN BE USED TO RE-
MOTELY ACTIVATE AN AUTOMATIC AN-
TENNA OR AN EXTERNAL AMPLIFIER (SEE
ANTENNA OR AMPLIFIER MANUAL)
ANTENNA LEAD
ON REAR OF RADIO 9 PIN PLUG
(SEE PAGE 5 FOR SPEAKER WIRING)
POSITIVE (+) TERMINAL
12 VOLT BATTERY
METAL PART OF DASH
(DRILL HOLE IF NECESSARY)
SCREW
BLACK
RED
EXISTING
ANTENNA
CABLE
BLUE
ANTENNA
AUTOMATIC
ANTENNA
FUSEBLOCK
IMPORTANT
YELLOW WIRE MUST BE CONNECTED
AS SHOWN OR RADIO WILL NOT
OPERATE PROPERLY
4-PIN PLUGS
YELLOW
CAR BATTERY
“RADIO” FUSE
+12V ACCESSORY
RADIO
15 AMP
FUSE
0.5 AMP
FUSE
