Red-d-arc zr-8 (kohler), Wiring diagram – Lincoln Electric IM928 RED-D-ARC ZR-8 User Manual
Page 30
RED-D-ARC ZR-8 (KOHLER)
F-1

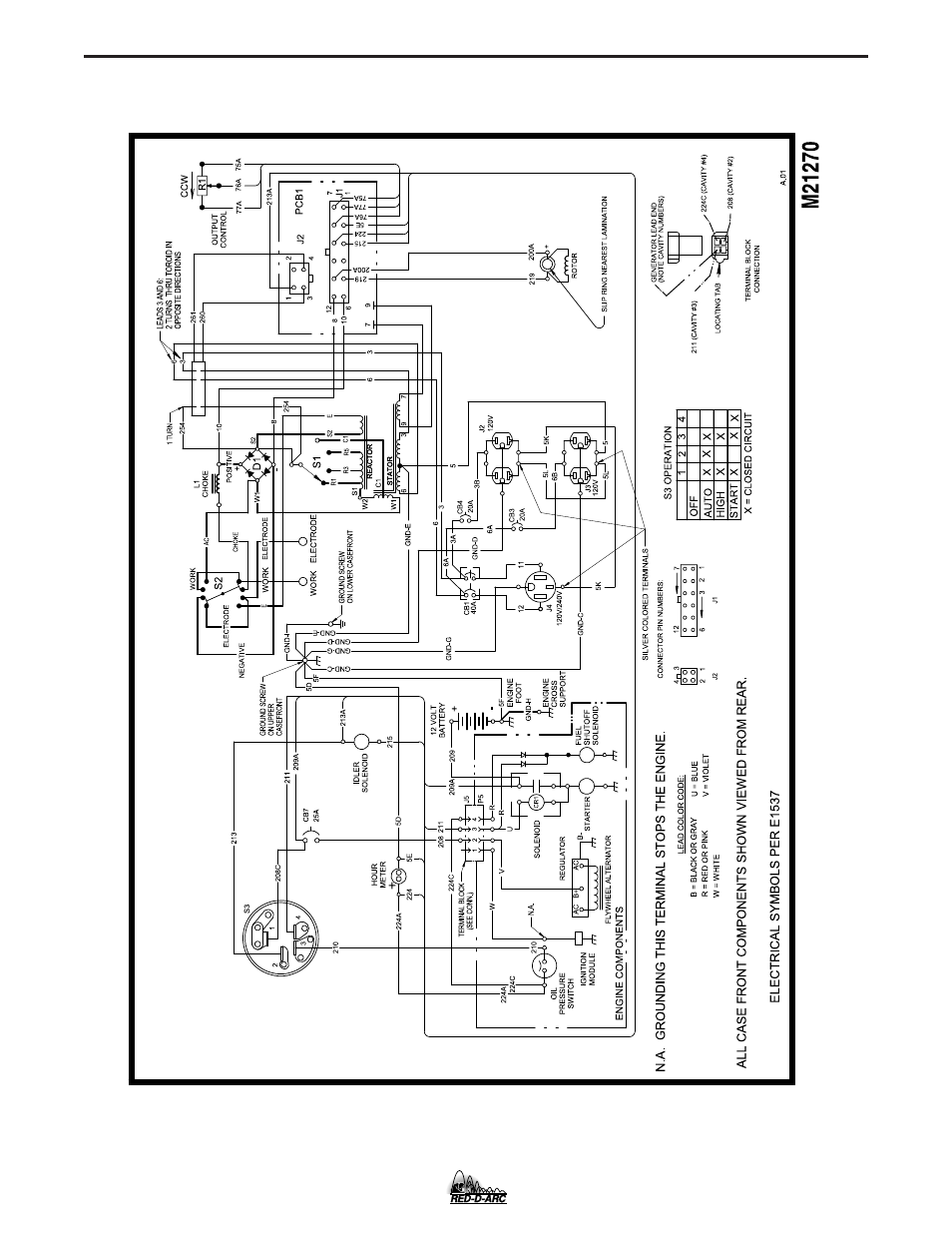

WIRING DIAGRAM
F-1
ZR-8
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. G
ive the equipment code number..
