1 SUPPLEMENT A FOR IM537-[ ] & IM591-[ ]
SP 170-I (12 IN.) AND SP-170T (30 LB.)
1
SUPPLEMENTAL OPERATORS MANUAL THIS OPERATING MANUAL IS ONLY FOR USE AS A SUP-
PLEMENT TO THE ORIGINAL IM537-A Dated August, 1996 or IM591 Dated June, 1997
Items in this SUPPLEMENTAL OPERATORS MANUAL refers to the corresponding pages and
items in the original IM537-[ ] or IM591-[ ] which are changed for the use of 30lb. wire spools.
PAGE A-1 INSTALLATION
PHYSICAL DIMENSIONS
Height Width Depth Weight
16 in. 12.6 in. 19.7 in. 59 lbs.
406 mm. 320 mm. 500 mm. 26.8 kg.
PAGE A-2 IDENTIFY AND LOCATE COMPONENTS
New item This supplemental book
New item S18221 Spindle Adapter
PAGE A-4 WORK CABLE INSTALLATION

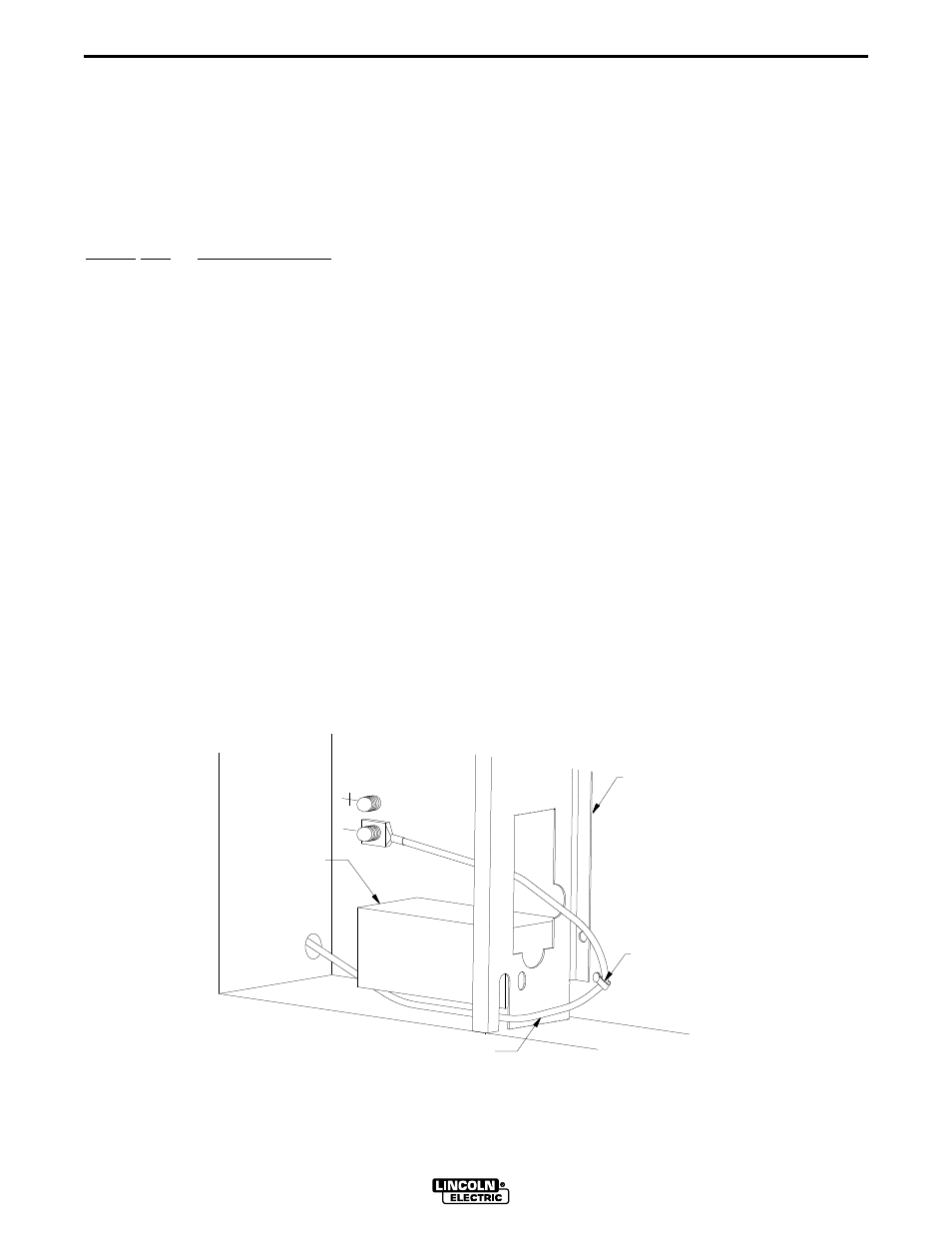

Changed item 3. Route the cable under the Wire Feed Gearbox (6), through the
lower slot in the wire feed compartment panel, through the plastic
cable hanger attached to the center panel and back through the
large opening in the wire feed compartment panel to the appropri-
ate output stud. (See below)
-(
(%.
-%(! "
-(
%#&(*#$*
&$"
"
$(
