4.0 XM Docking Station
This station provides docking accommodations for an external mini XM receiver. (Refer to previous figure.)
Note: The XM mini receiver and XM antenna are not included with the XMC90.( P/N:CNP2000)
4.1 Using the XM Docking Station
1. Swing up the protective cover door to access the iPod/XM receiver system connector bay.
2. Install the mini receiver carefully onto the receiver connector and press down lightly until the receiver bottoms into
the recess.
Note: The receiver can be inserted in one way only; the XM logo should face toward the front of the unit.
3. Press the MODE button until XM is highlighted; then press the Scroll Wheel select button.
Note: After 20 seconds, channel scroll will time out and the scroll wheel will return to Volume Control.

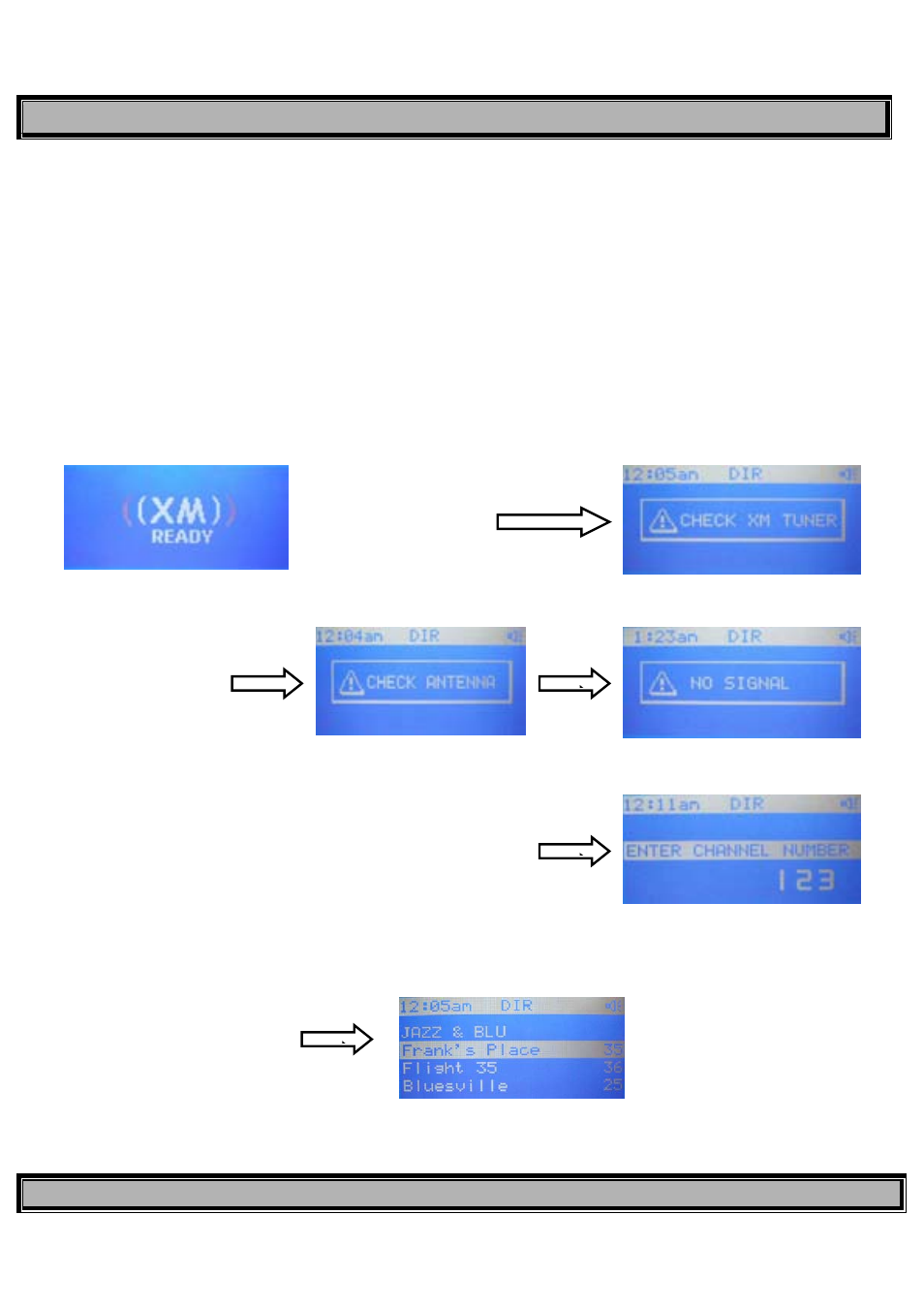

If a receiver fault occurs
or if the receiver is
improperly installed, the
following message
screen appears:
If the XM antenna is not
connected, or an XM
antenna fault occurs,
the following message
screens may appear:
Select the Category using
the CAT+/- buttons; select
channel within the category
using the CH+/- buttons or
scroll wheel
Use the number (1-10) buttons to directly select a channel
number, or press the select button twice; a beep occurs and the
scroll wheel can be used to browse the channel list
