Lincoln Electric IM468 K520 Utility Cart User Manual

Page 8

A-2

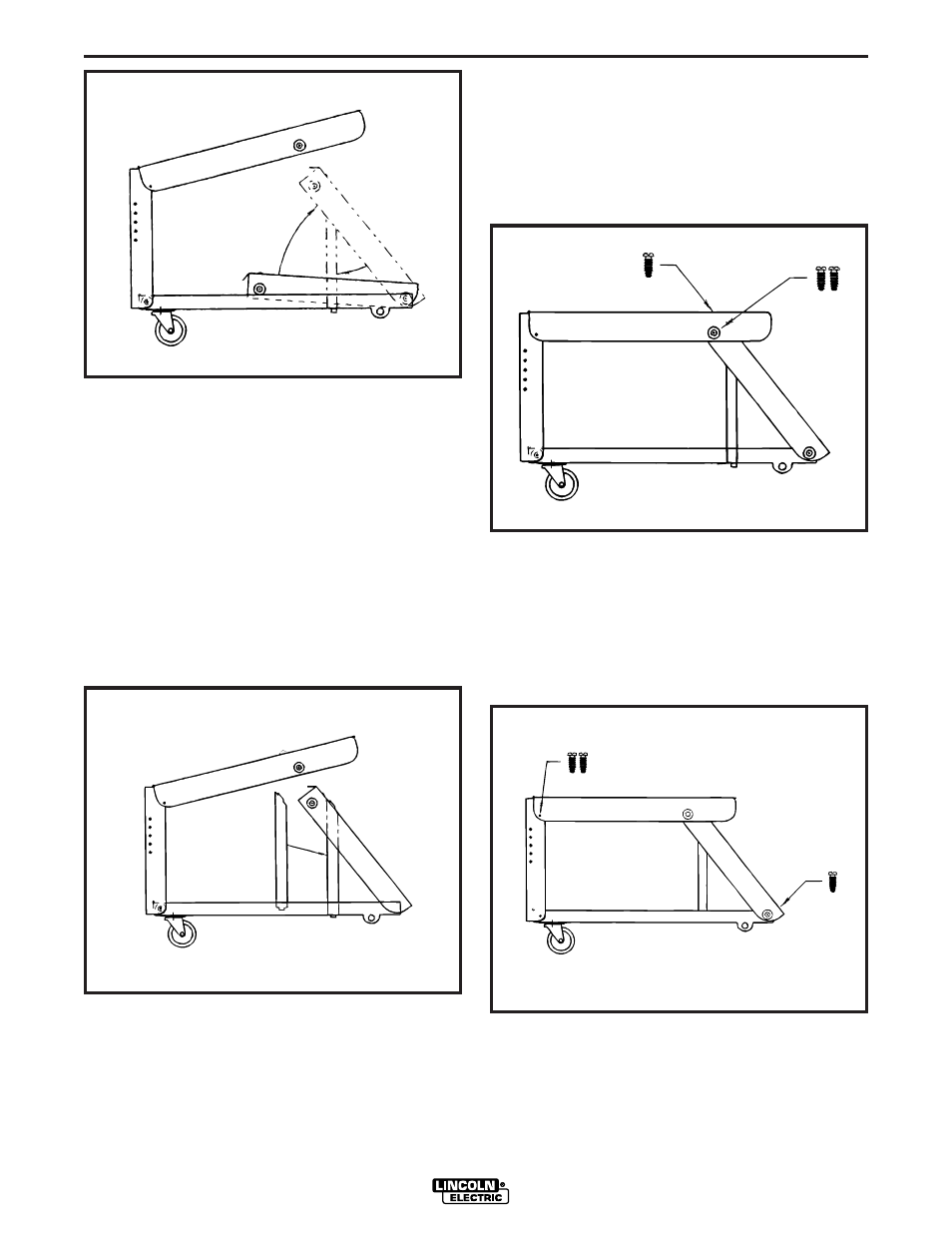

FIGURE 2

STEP 4 (SEE FIGURE 3)

With the Rear Shelf still raised, install the right hand
Vertical Gusset alongside the Tank Support. Begin by
placing the tab in the bottom of the Vertical Gusset
into the slot in the Bottom Shelf, just to the right of the
Rear Upright. Insert the Vertical Gusset’s upper tab
into the Rear Upright. Repeat this with the left hand
Vertical Gusset. Lower the Top Shelf until it is sup-
ported by the Rear Upright.

FIGURE 3

STEP 5 (SEE FIGURE 4)

Screw the Top Shelf and the Rear Support together
using 10-24 x .375 screws. For easiest assembly, use
two screws to first secure the sides of the Top Shelf to
the Rear Upright. Next, put one more screw through
the top of the Top Shelf, into the Rear Support.

FIGURE 4

STEP 6 (SEE FIGURE 5)

Secure the Rear Upright to the Bottom Shelf using
one 10-24 x .375 screw.

FIGURE 5

STEP 7 (SEE FIGURE 5)

Place the remaining two screws through the sides of
the Top Shelf into the Front Upright.
