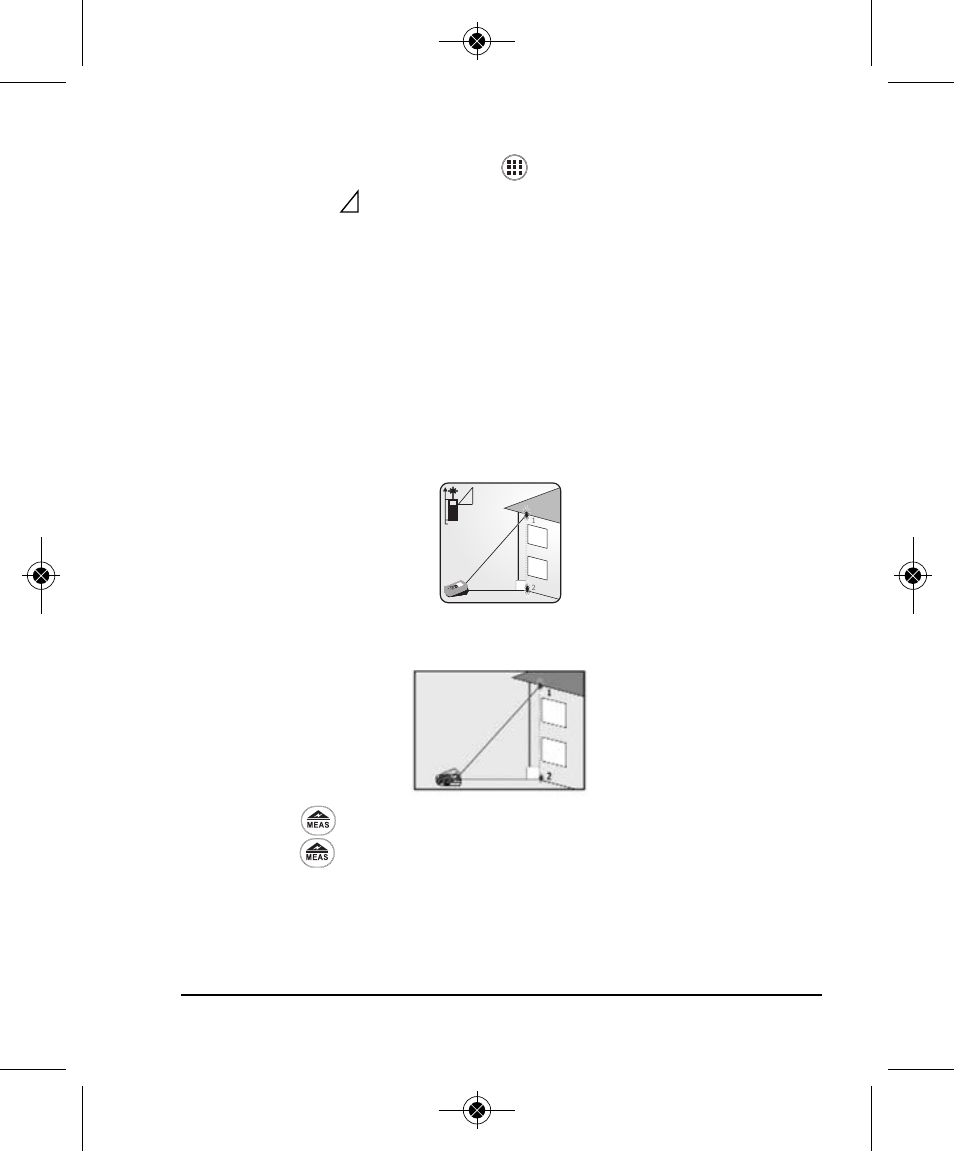

Indirect (Pythagorean Theorem)
1 With the unit turned on, hold the button until the indirect symbol,

triangle icon ( ) is displayed.

2. The calculation is based on Pythagorean Theorem a

+ b

= c

3. Follow the order of the flashing lines.

Note: For accurate measurements the instrument’s position must be
held constant. For example, note the position of your hand when
taking first measurement. Do not move your hand when preparing to
take the second measurement. Simply pivot your wrist (keeping
instrument in same position) to align the next target. Then record
next measurement.

4. Press the button once to record the first measurement.
5. Press the button a second time to record the second

measurement.

6. The sum of both indirect measurement calculations will be

displayed on the main screen.

Calculates distance between

Point 1 and Point 2
